8,000 Hour maintenance kit for ABC HORIZON 2100-3000 air piston compressor
Relación de piezas:
| Cantidad | Código | Descipcion |
|---|---|---|

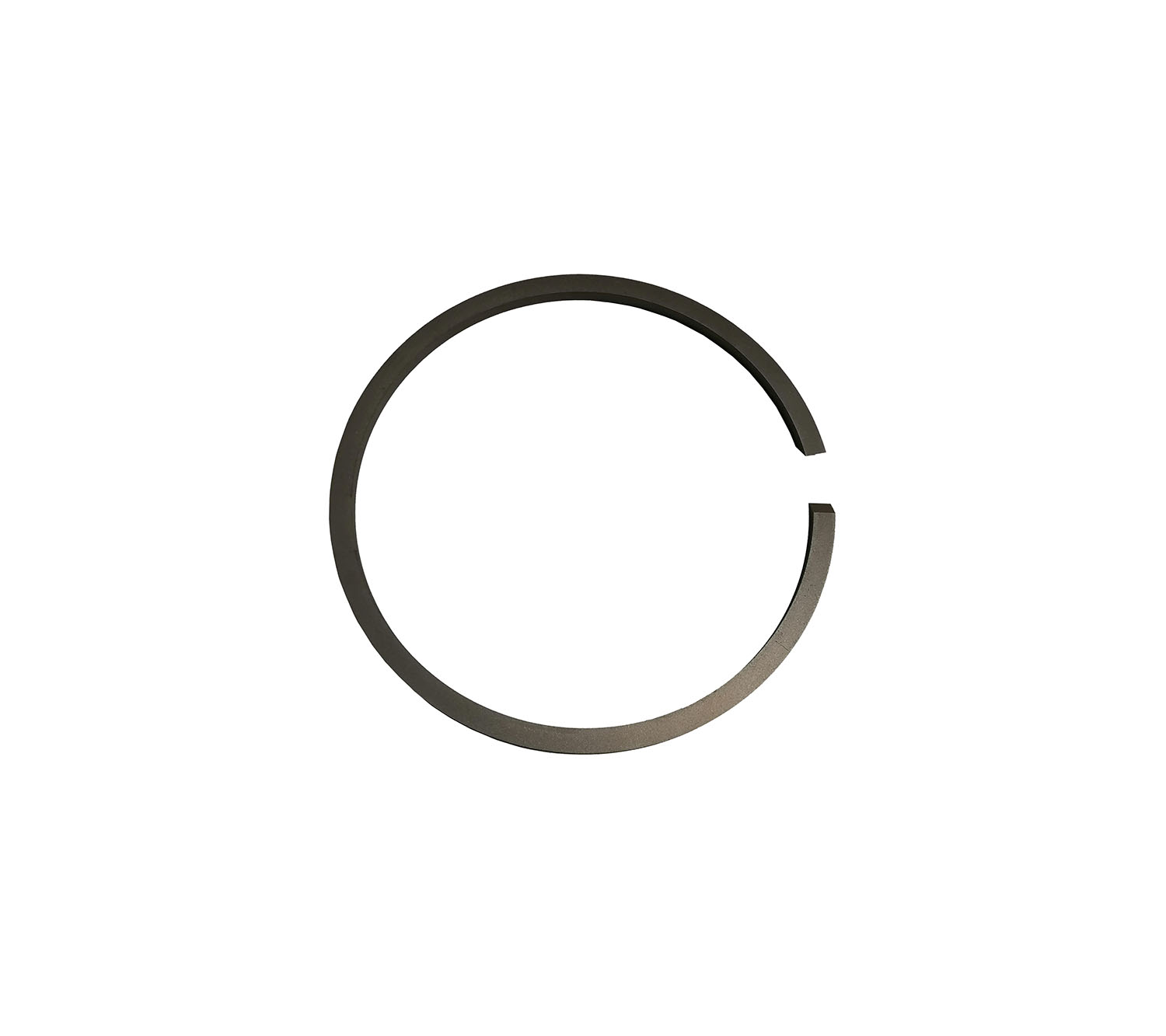

| 6 | 8591656 | PISTON RING DIAM. 320 MM. |

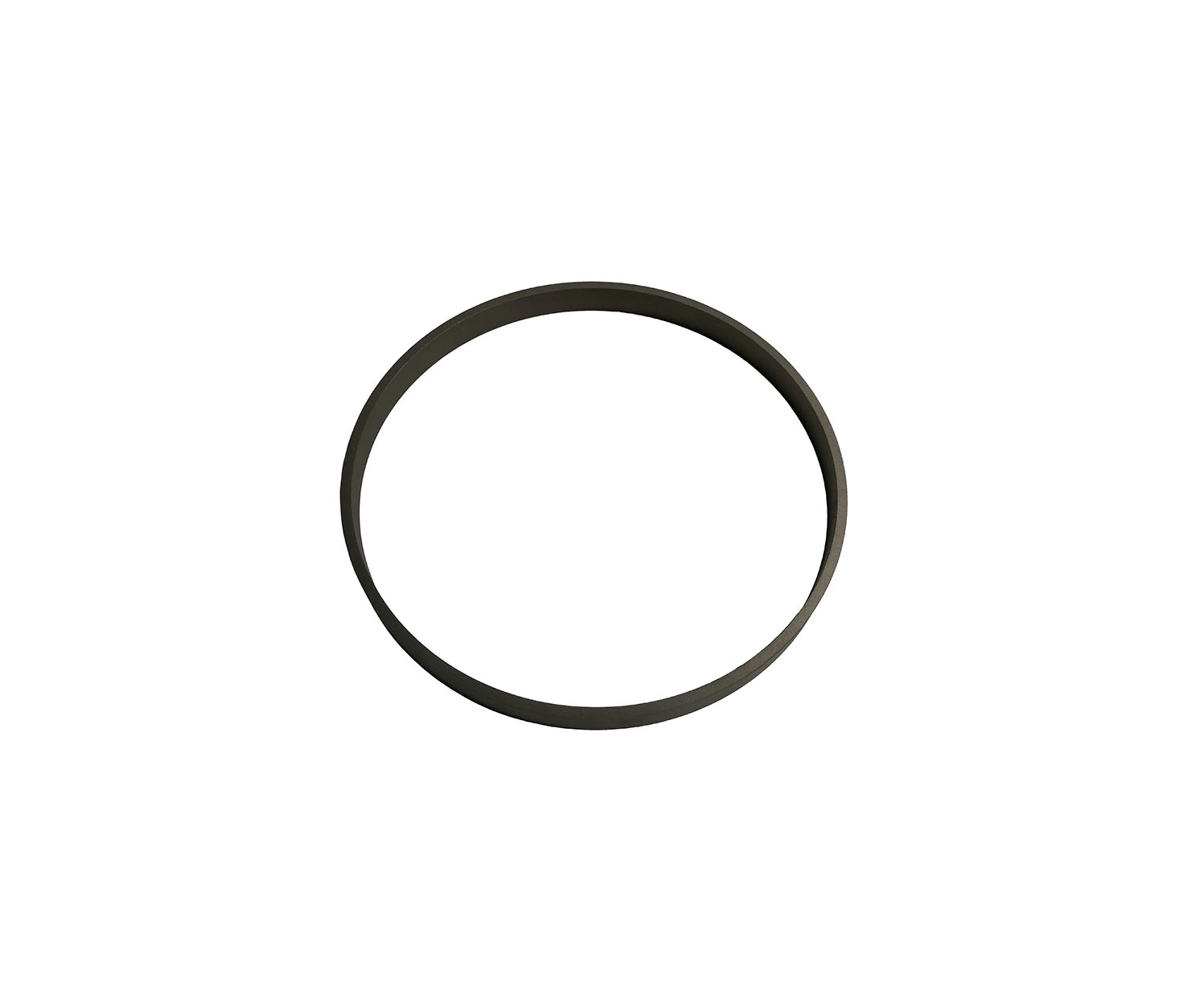

| 6 | 8756655 | RIDER RING DIAM. 320 MM |

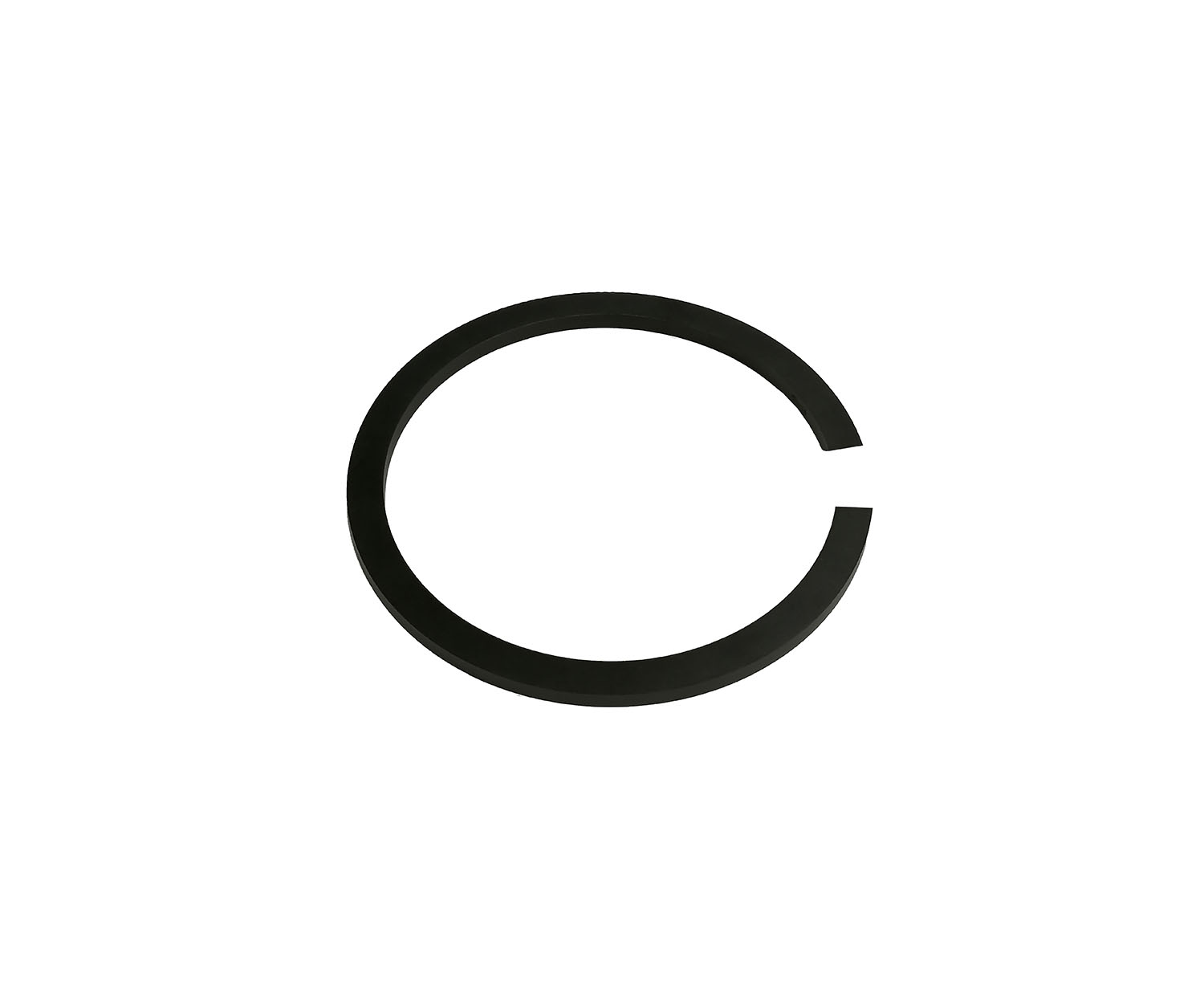

| 8 | 8637733 | PISTON RING DIAM. 180 MM. |

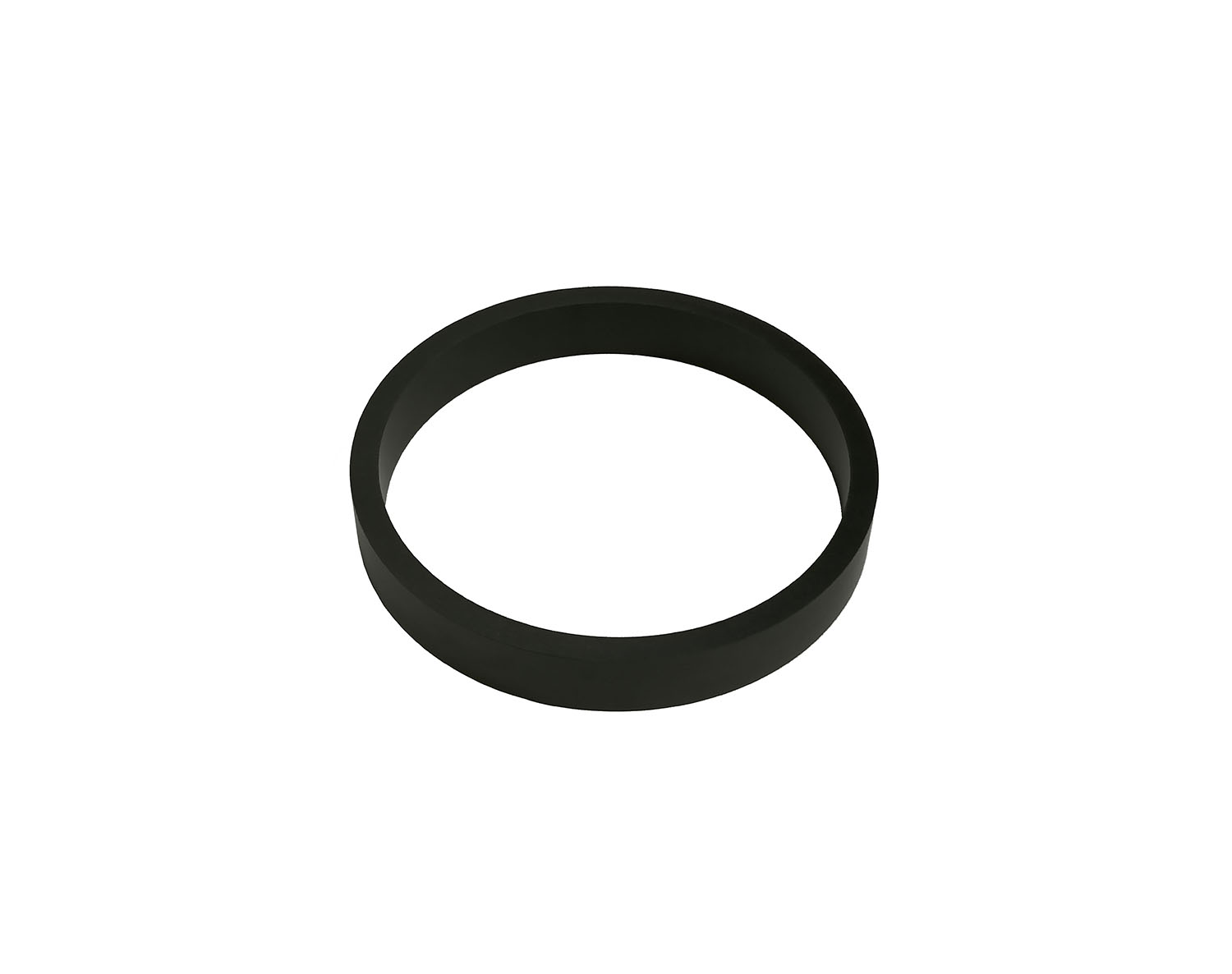

| 4 | 8474555 | RIDER RING DIAM. 180 MM |

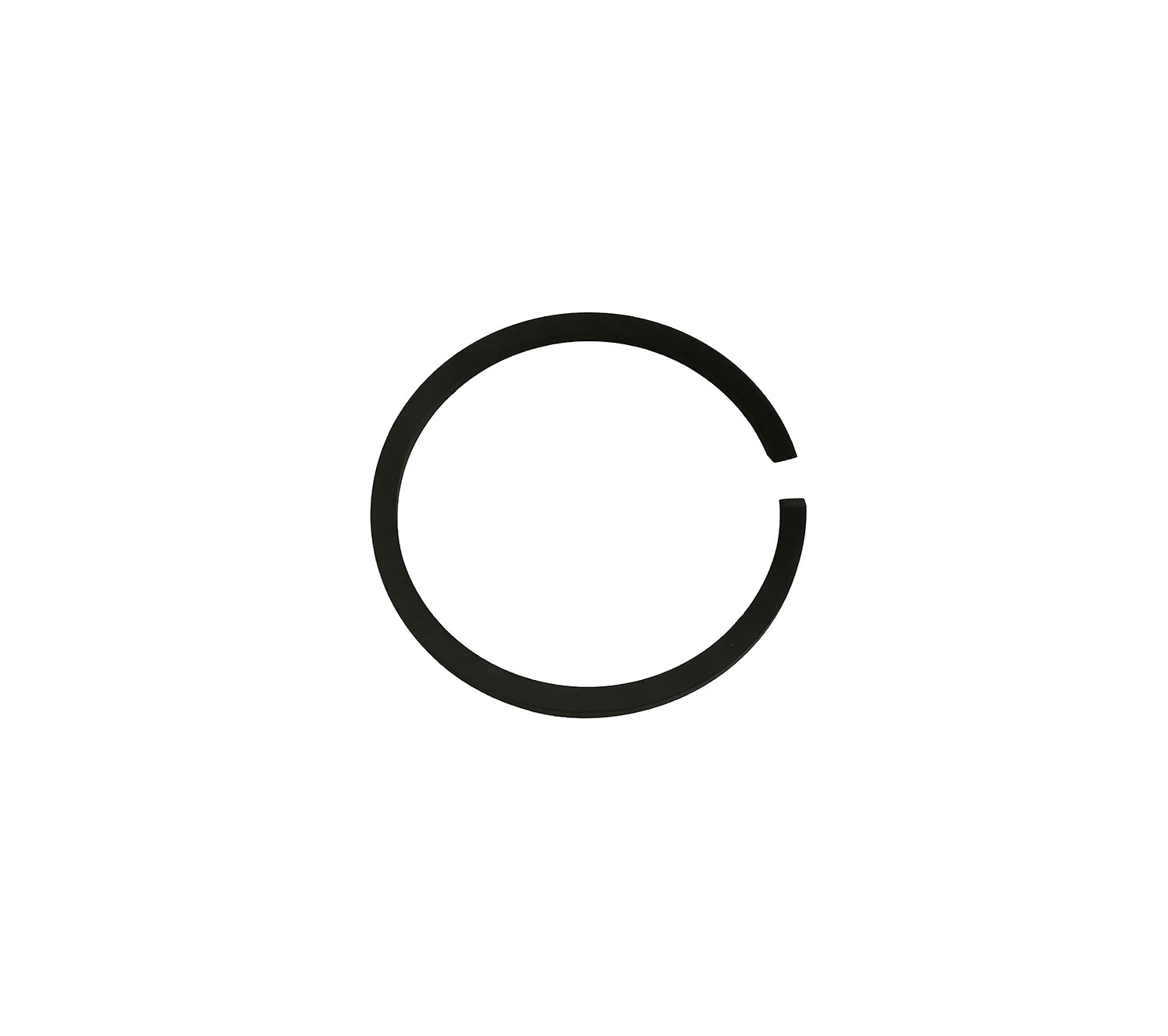

| 6 | 8531823 | PISTON RING DIAM. 130 MM. |

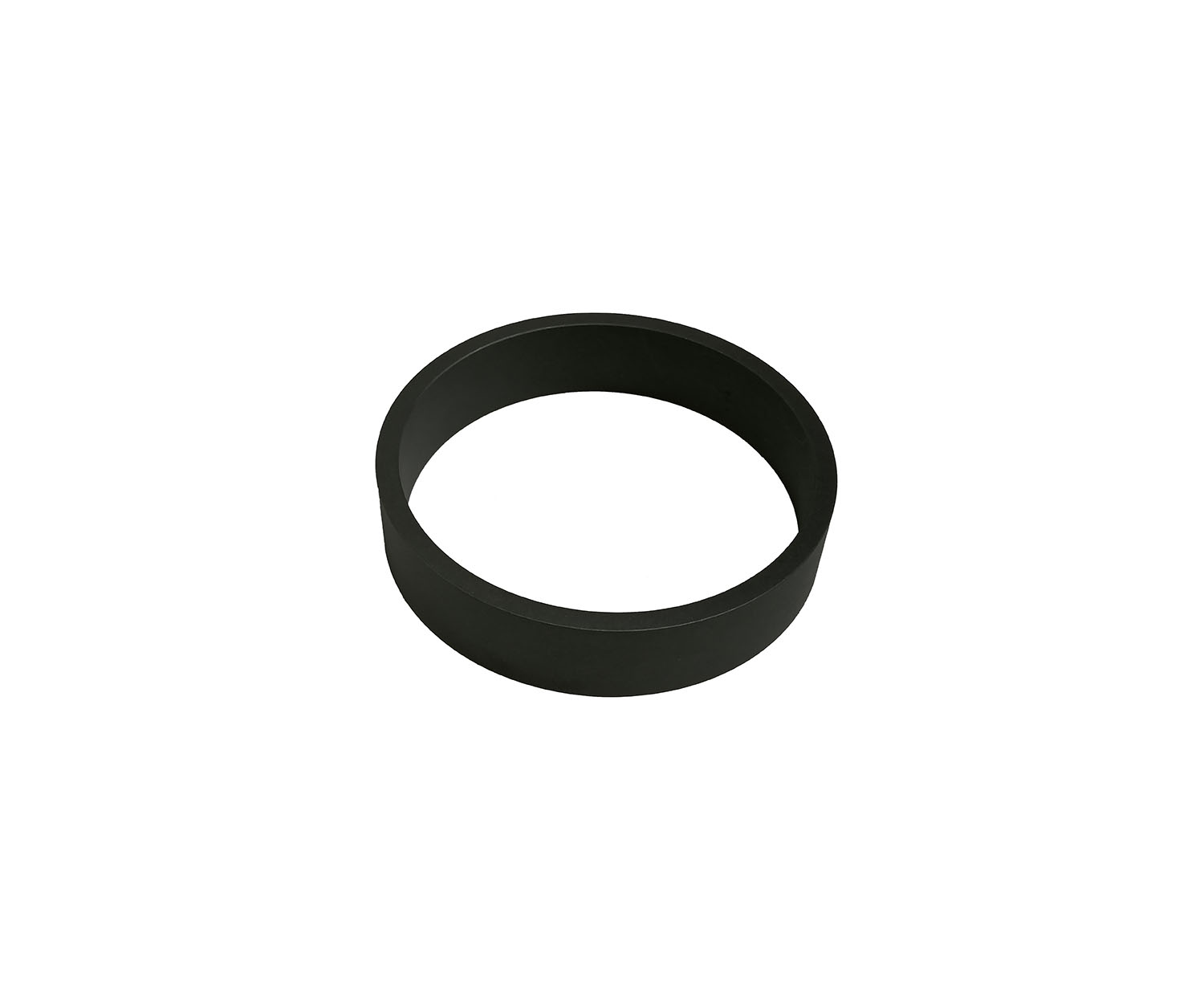

| 2 | 8838774 | RIDER RING DIAM. 130 MM |

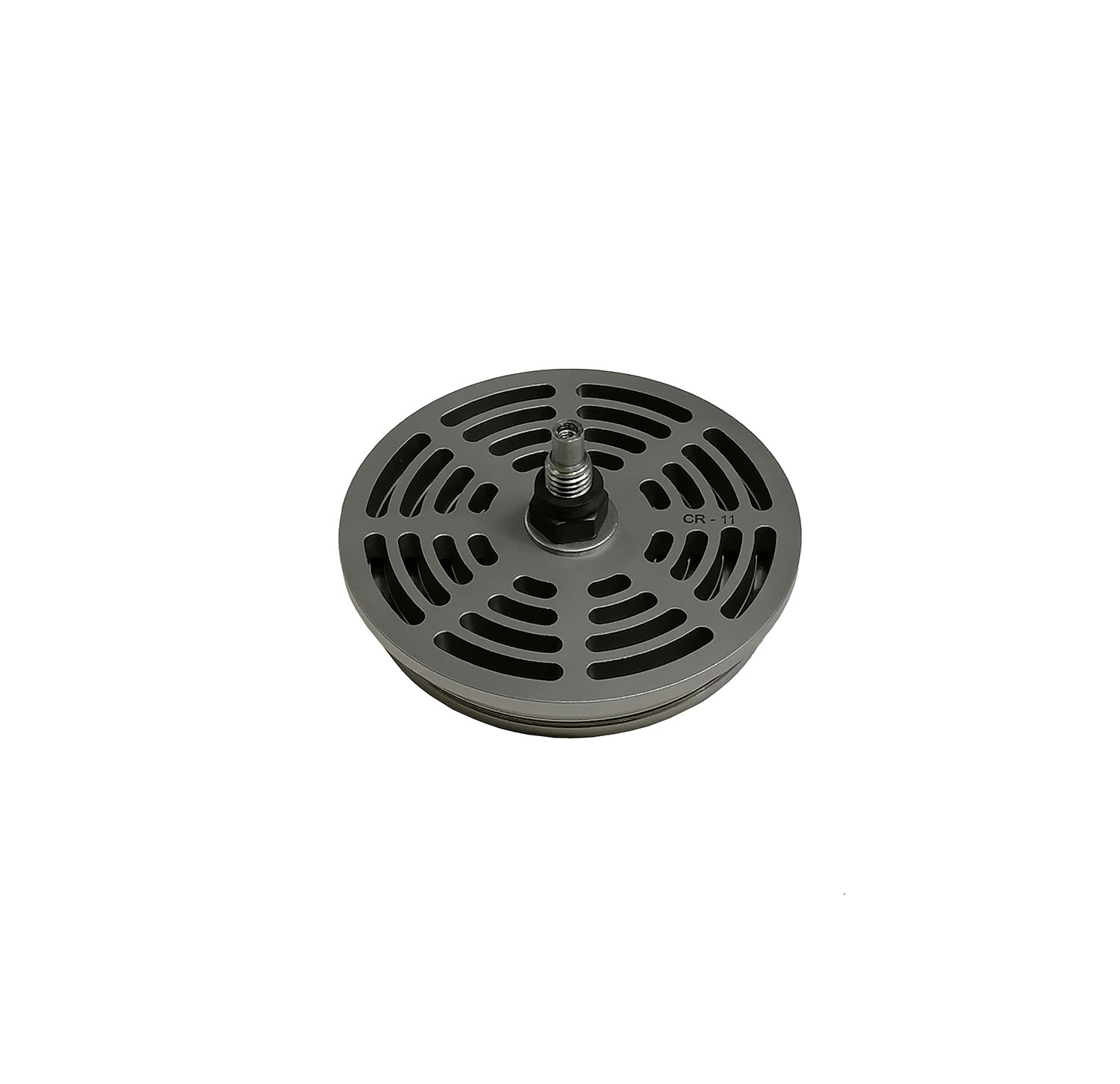

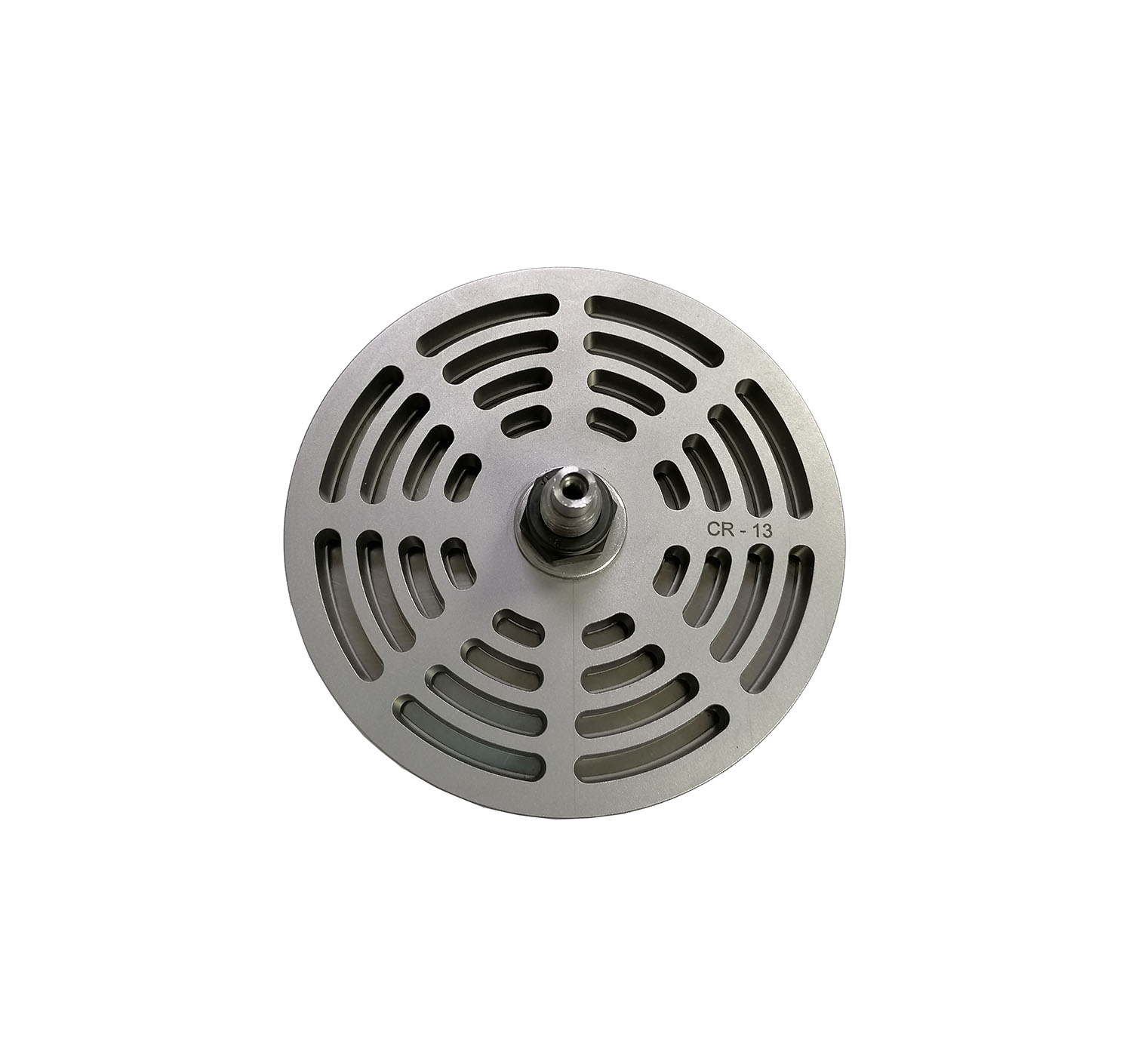

| 18 | 8057096 | VALVE 105CR-11 ADM. |
| 18 | 8287310 | VALVE 105CR-12 IMP. |
| 8 | 8057096 | VALVE 105CR-13 ADM. |

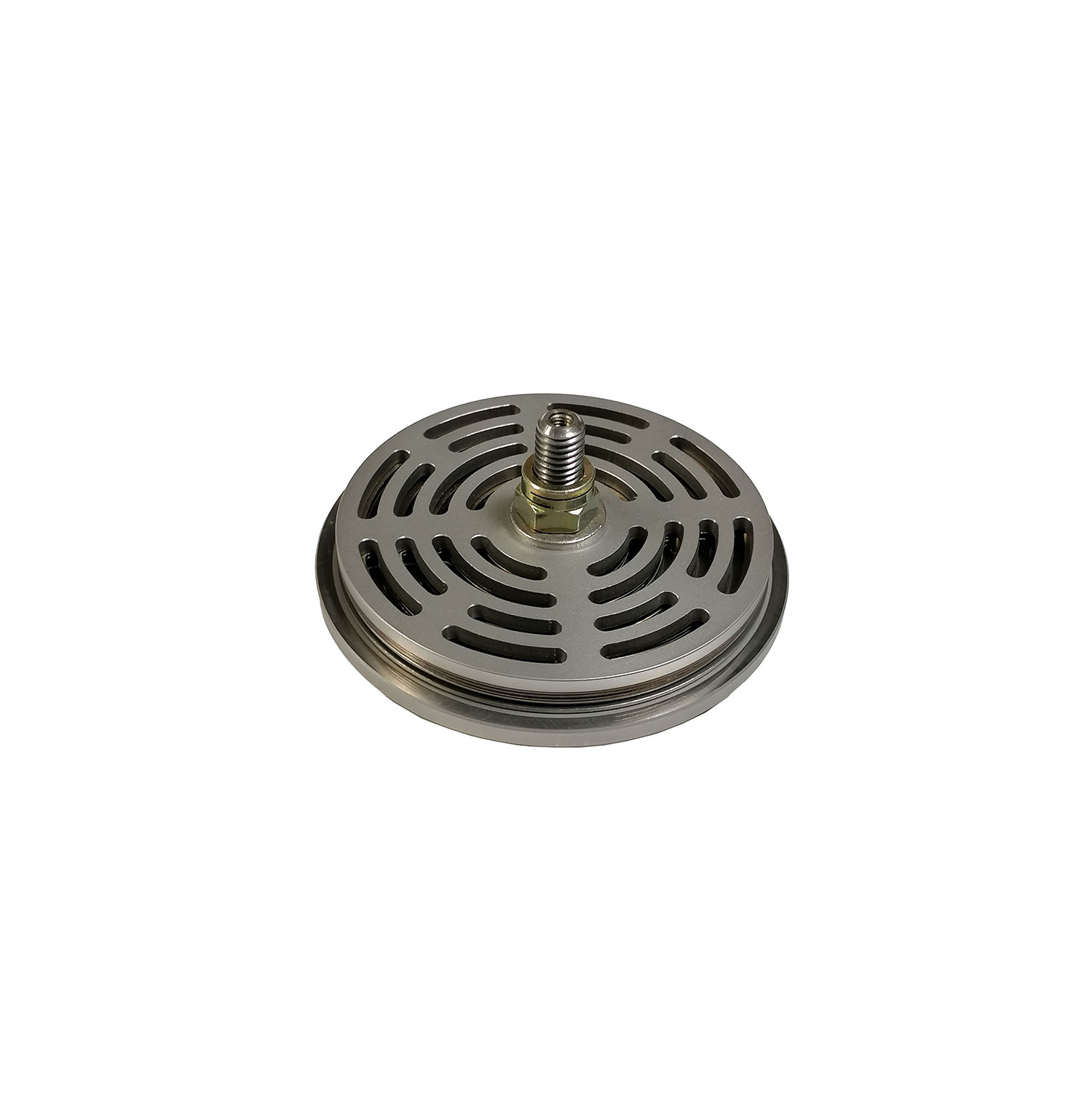

| 8 | 8943690 | VALVE 105CR-14 IMP. |

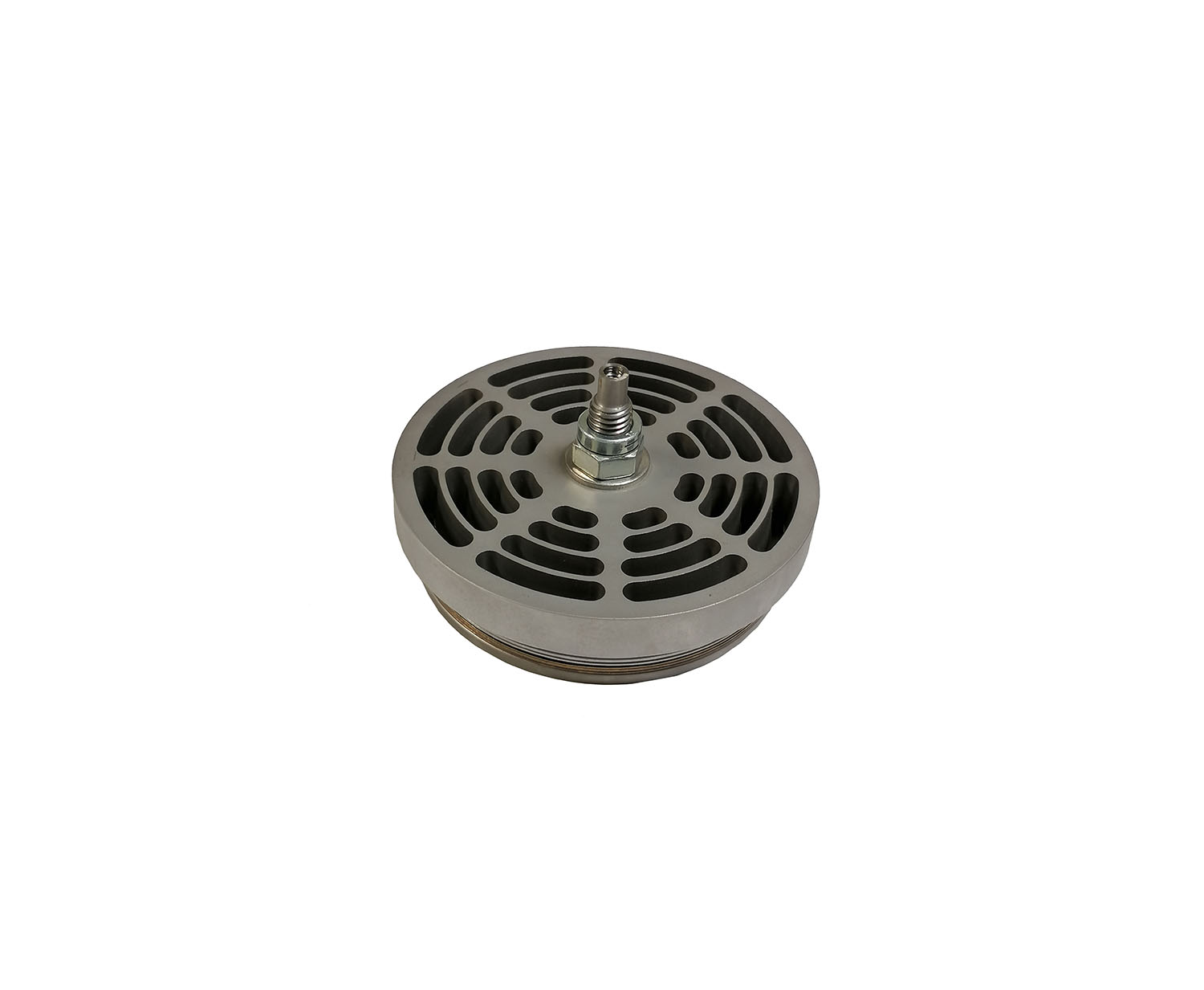

| 2 | 8804272 | VALVE 105CR-17 ADM. |

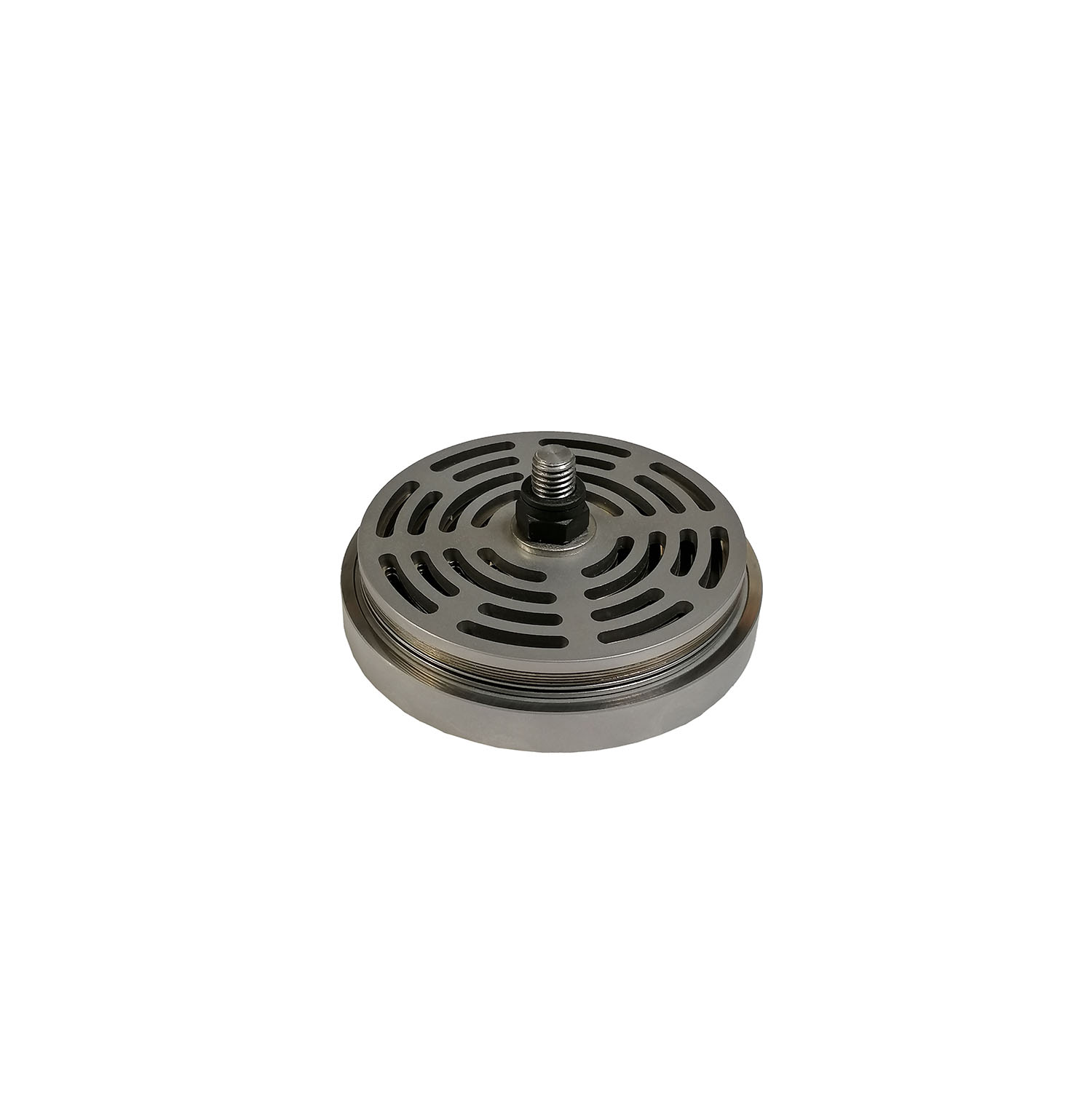

| 2 | 8290546 | VALVE 105CR-18 IMP. |

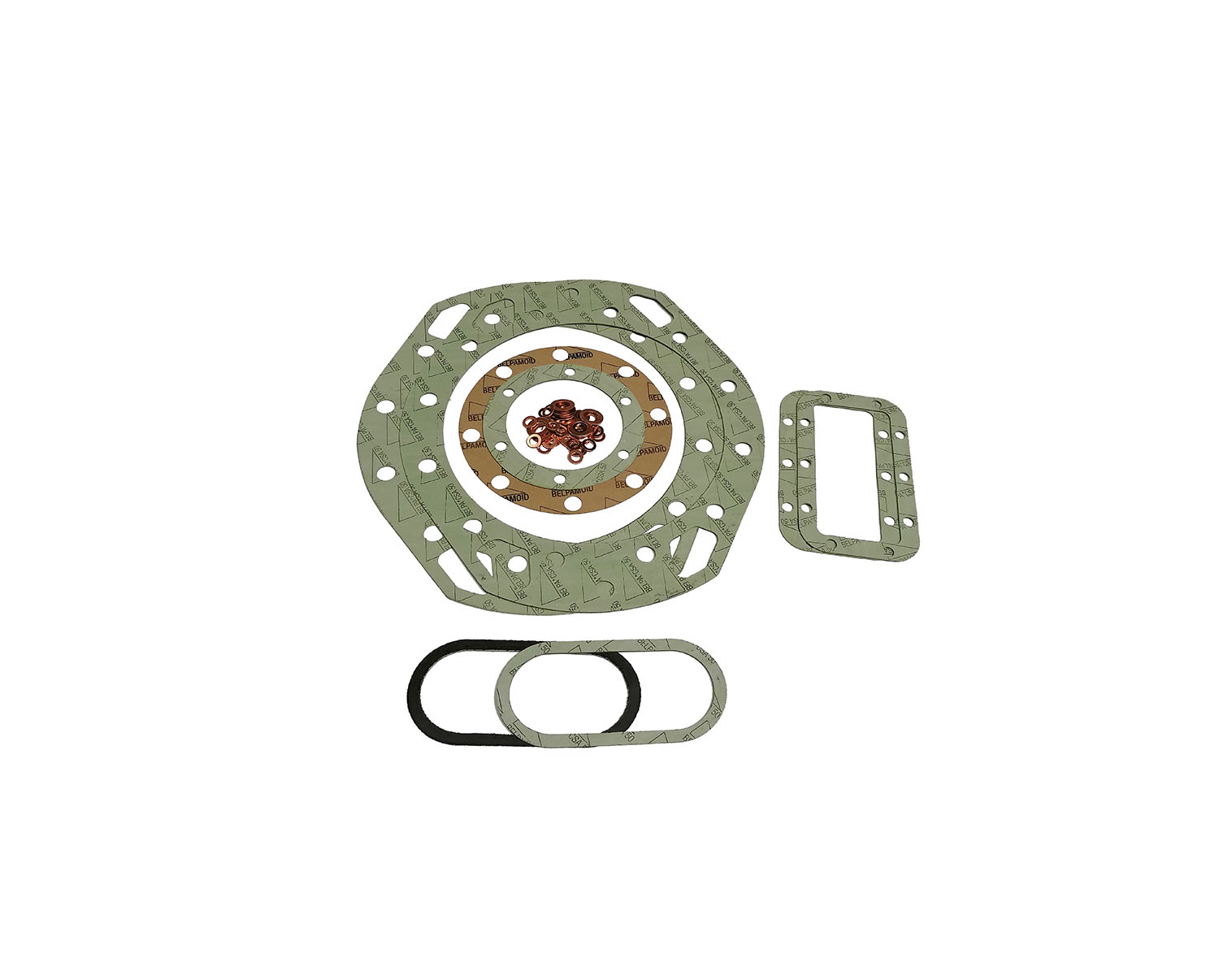

| 3 | 8802649 | JOINT |

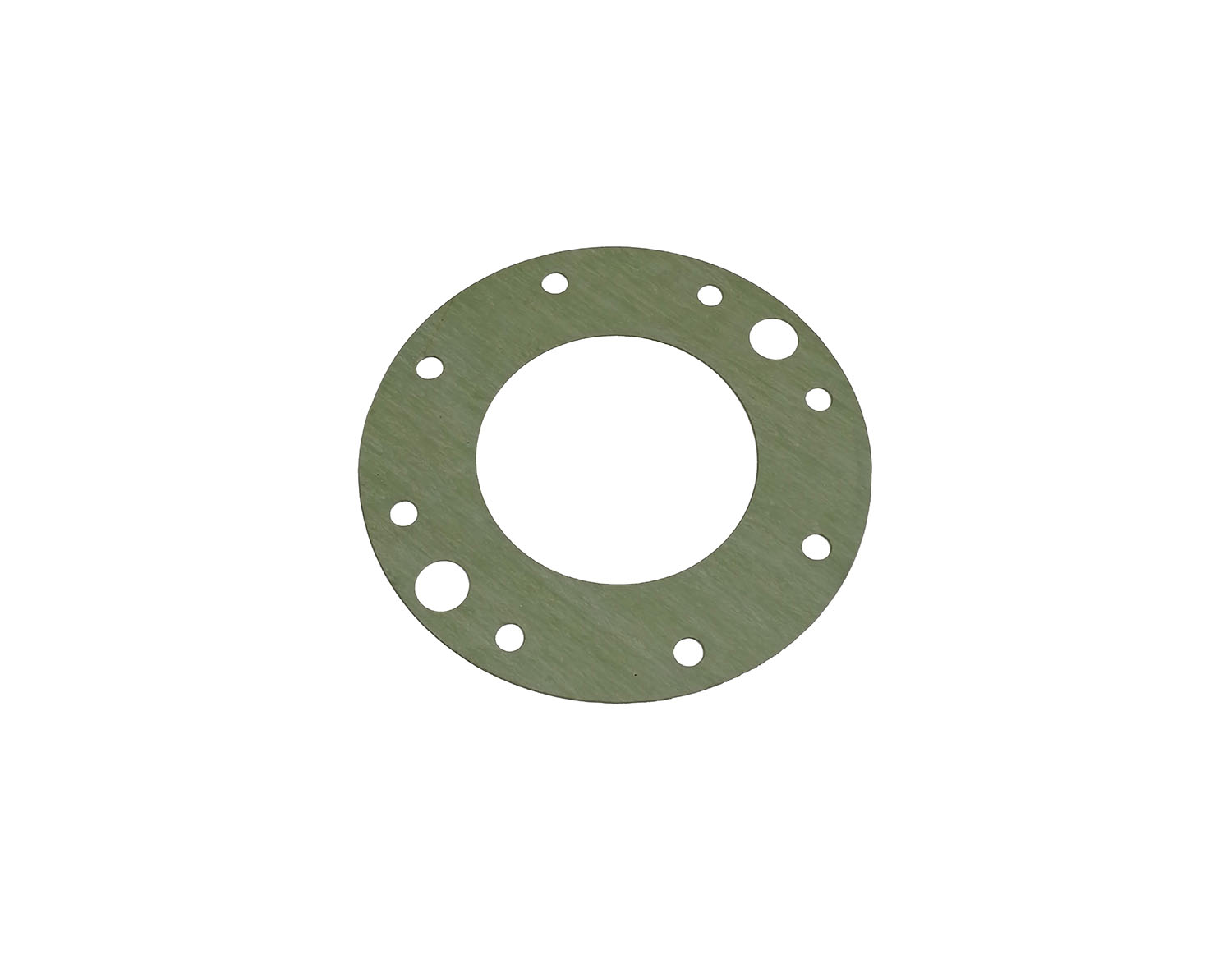

| 2 | 8061785 | JOINT |

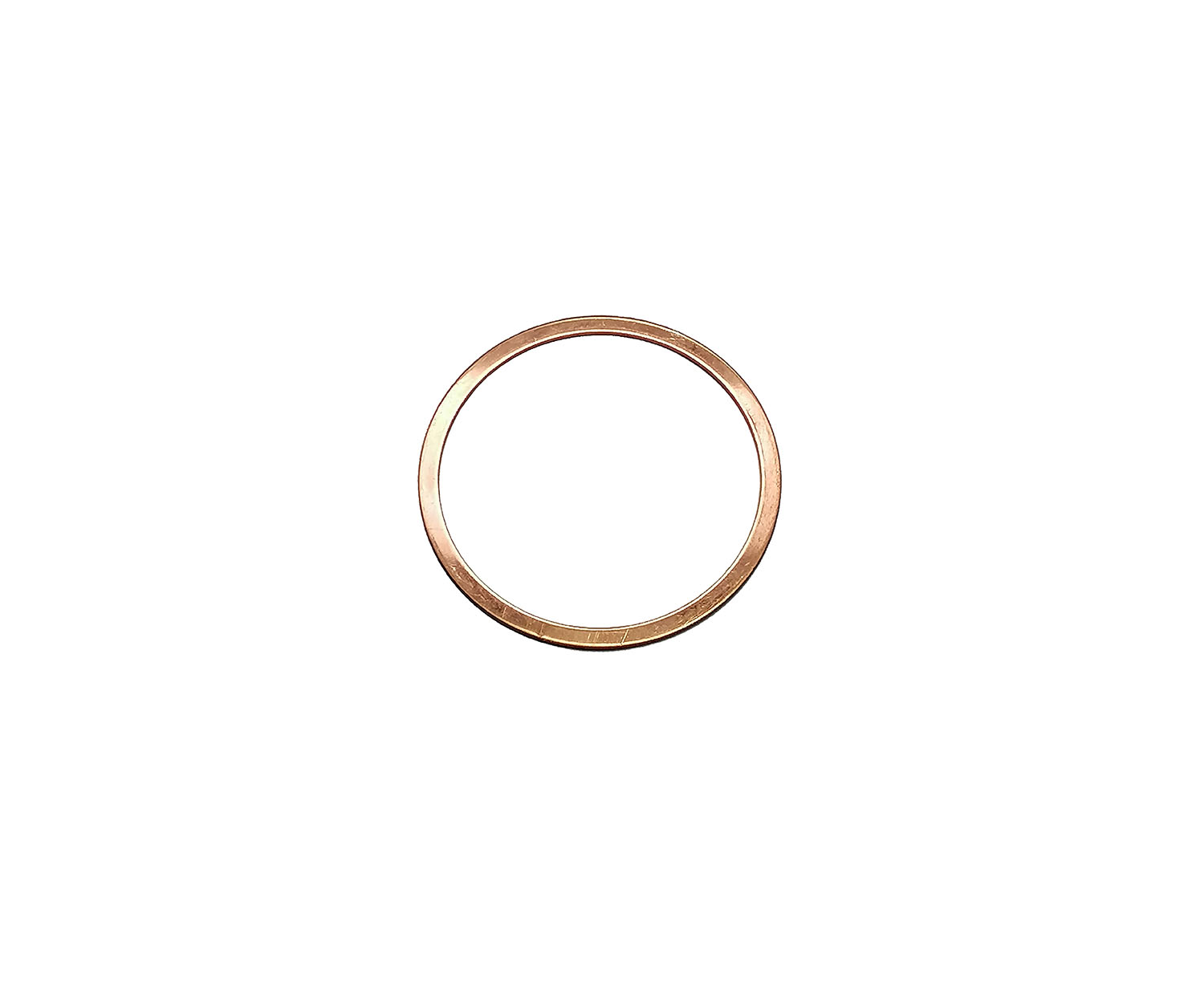

| 1 | 8297073 | JOINT |

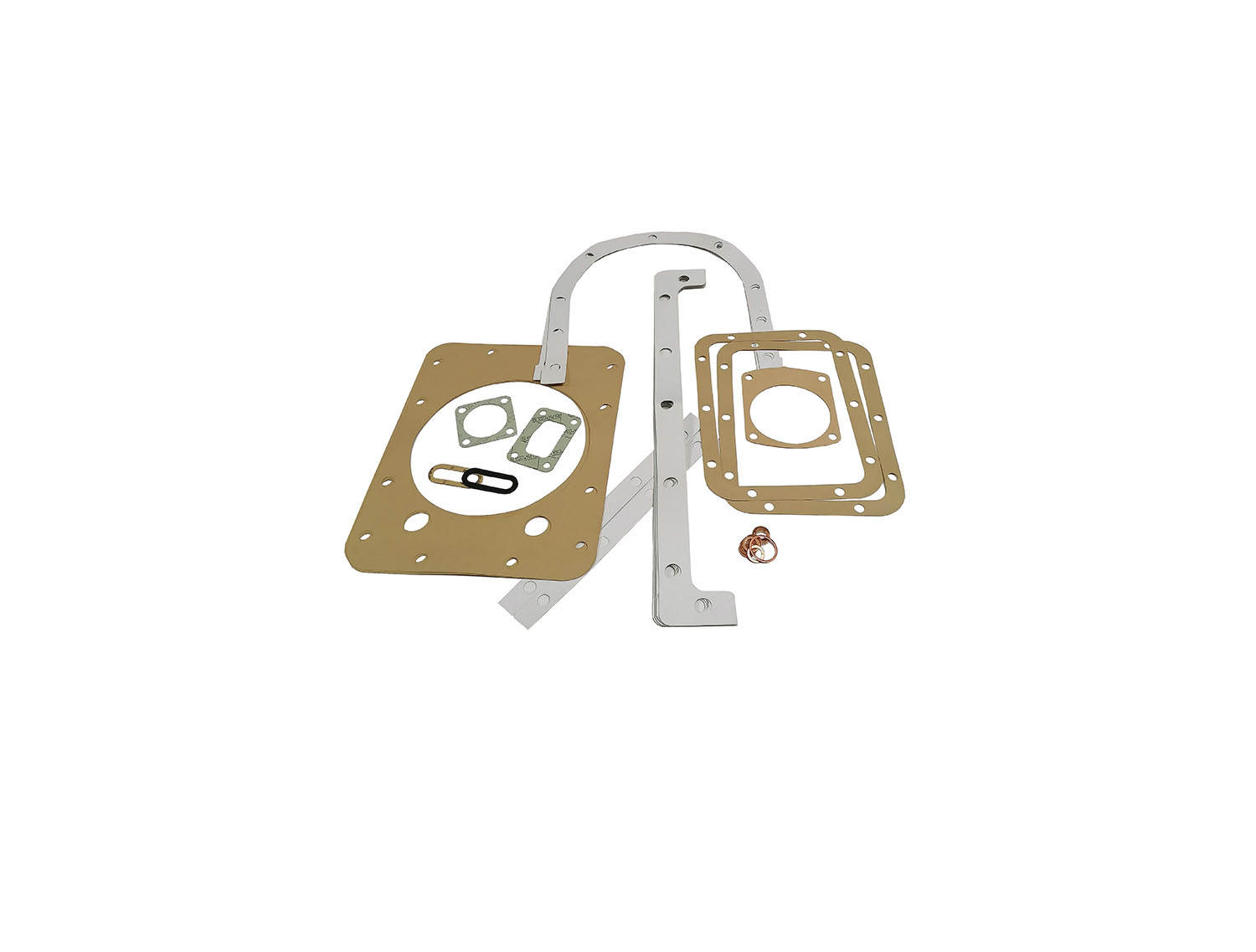

| 1 | 8367800 | JOINT |

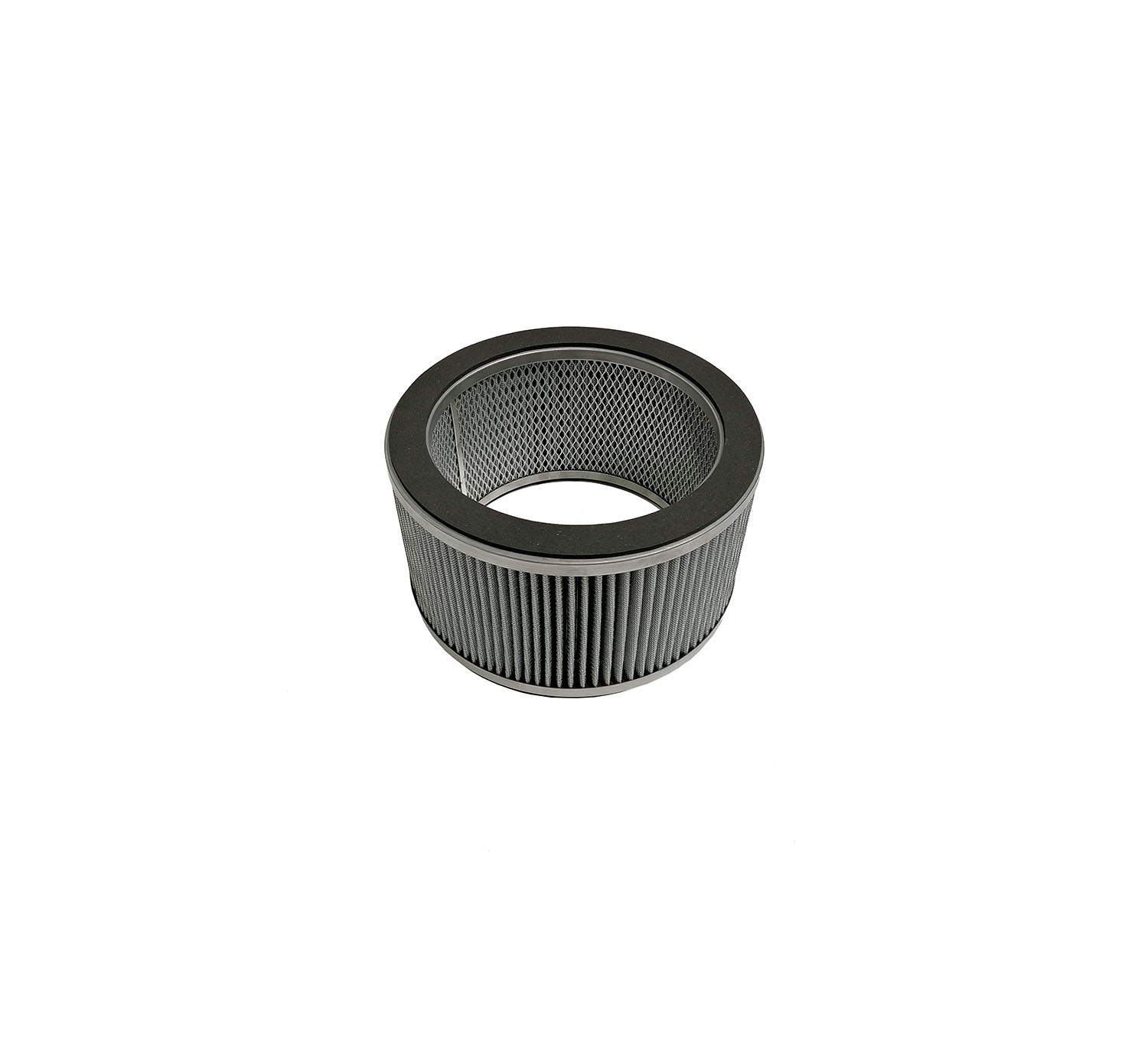

| 3 | 8044086 | CARTRIDGE FILTER AIR |

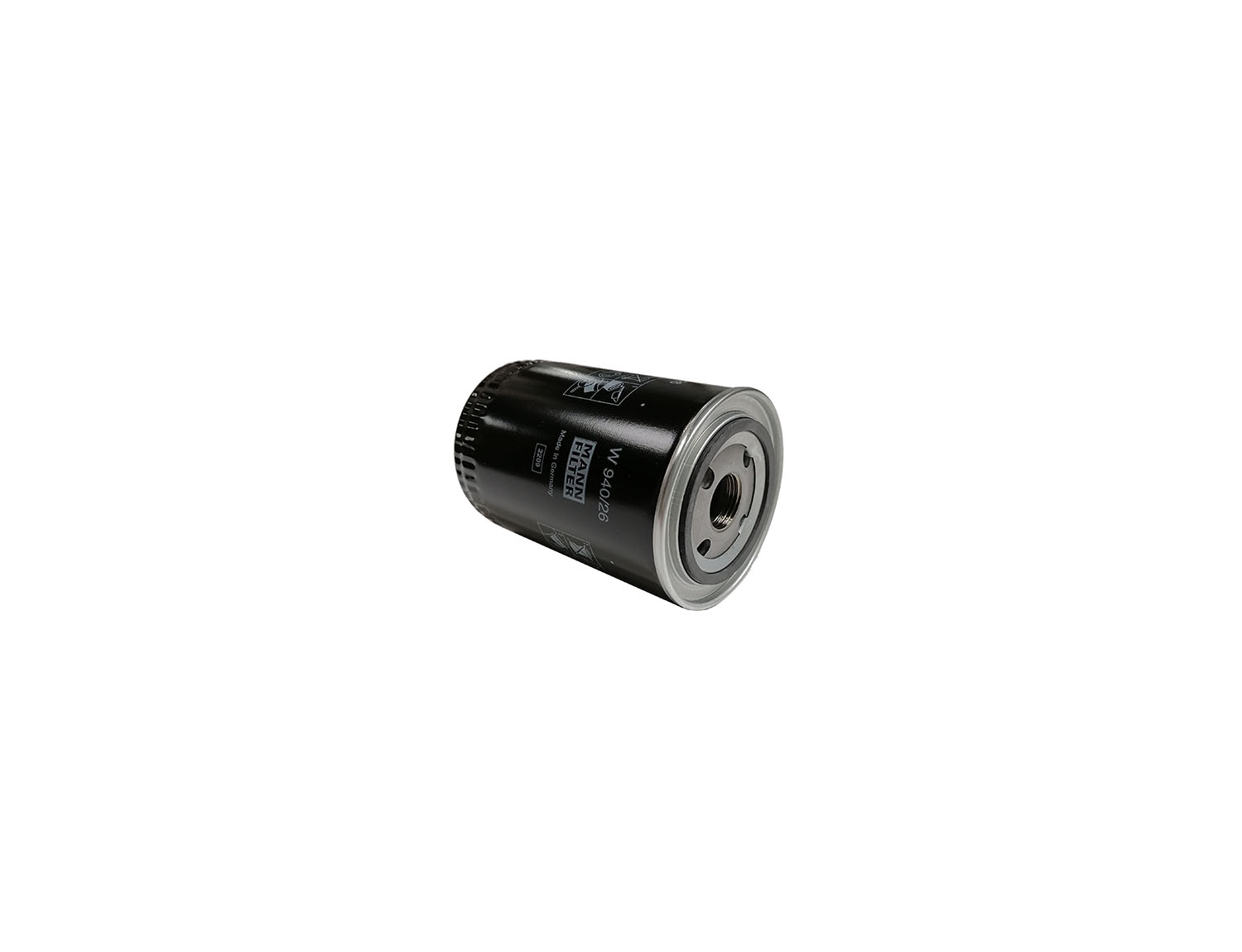

| 1 | 8553605 | CARTRIDGE FILTER OIL |

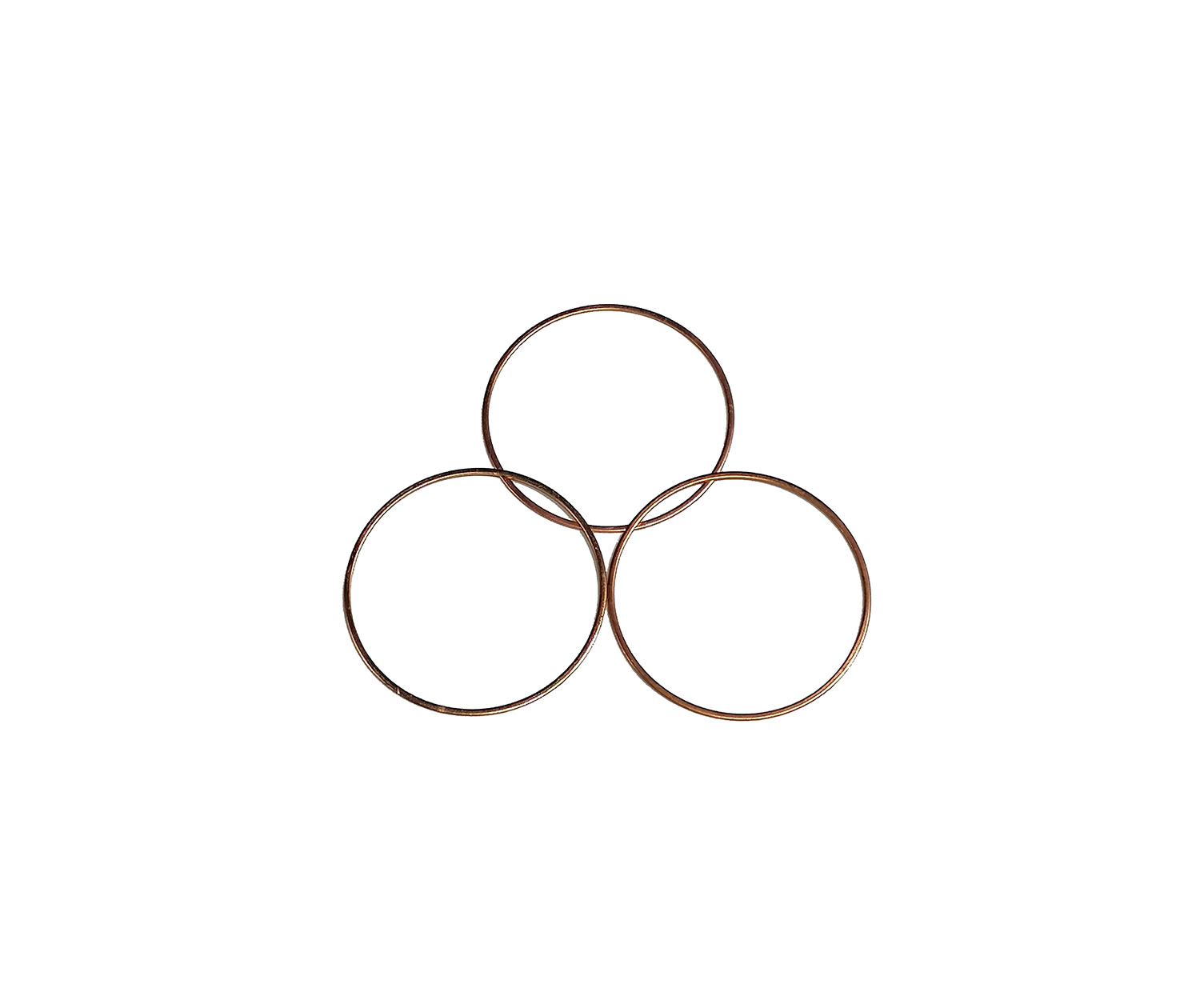

| 12 | 8659779 | JOINT |

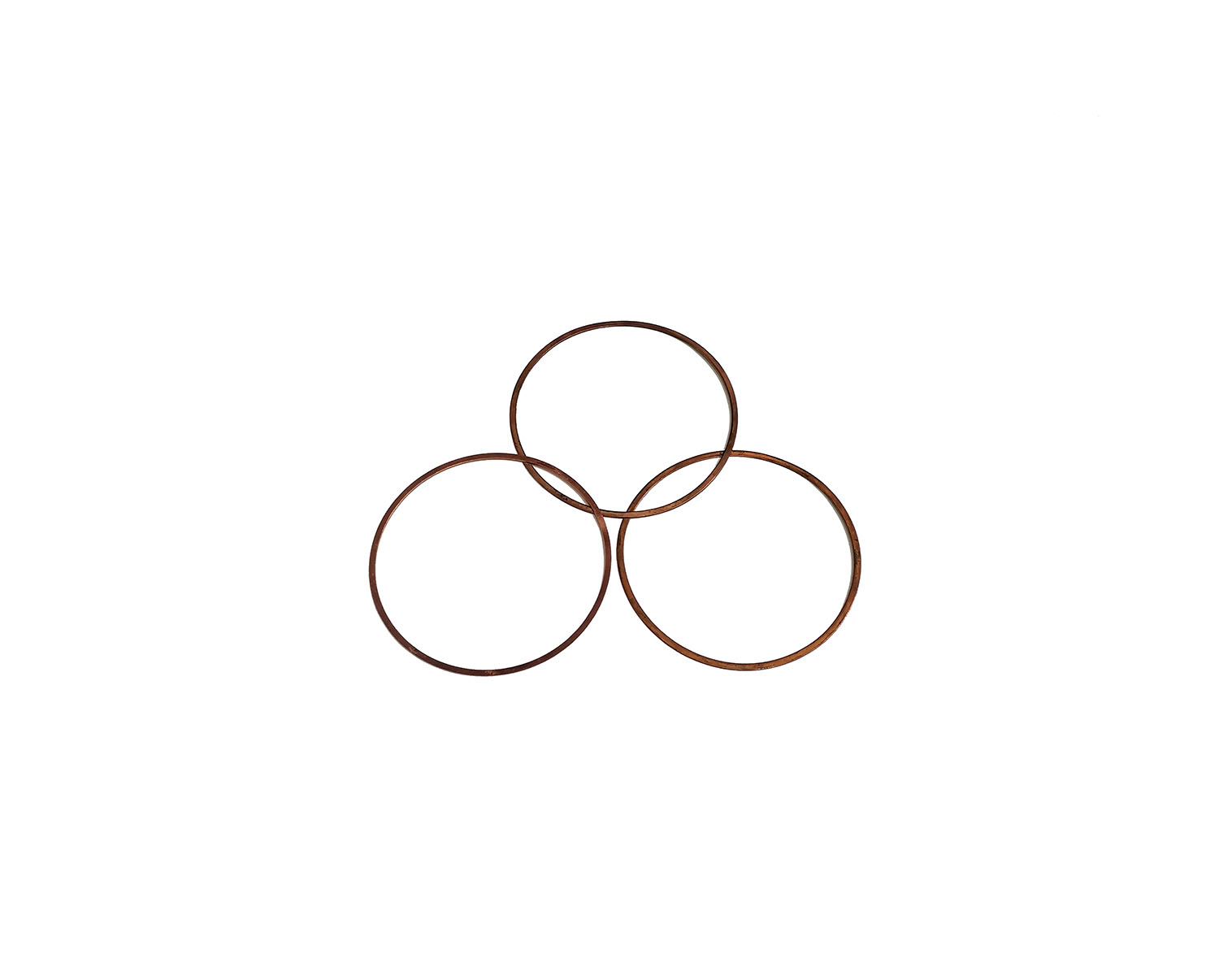

| 4 | 8251019 | JOINT |

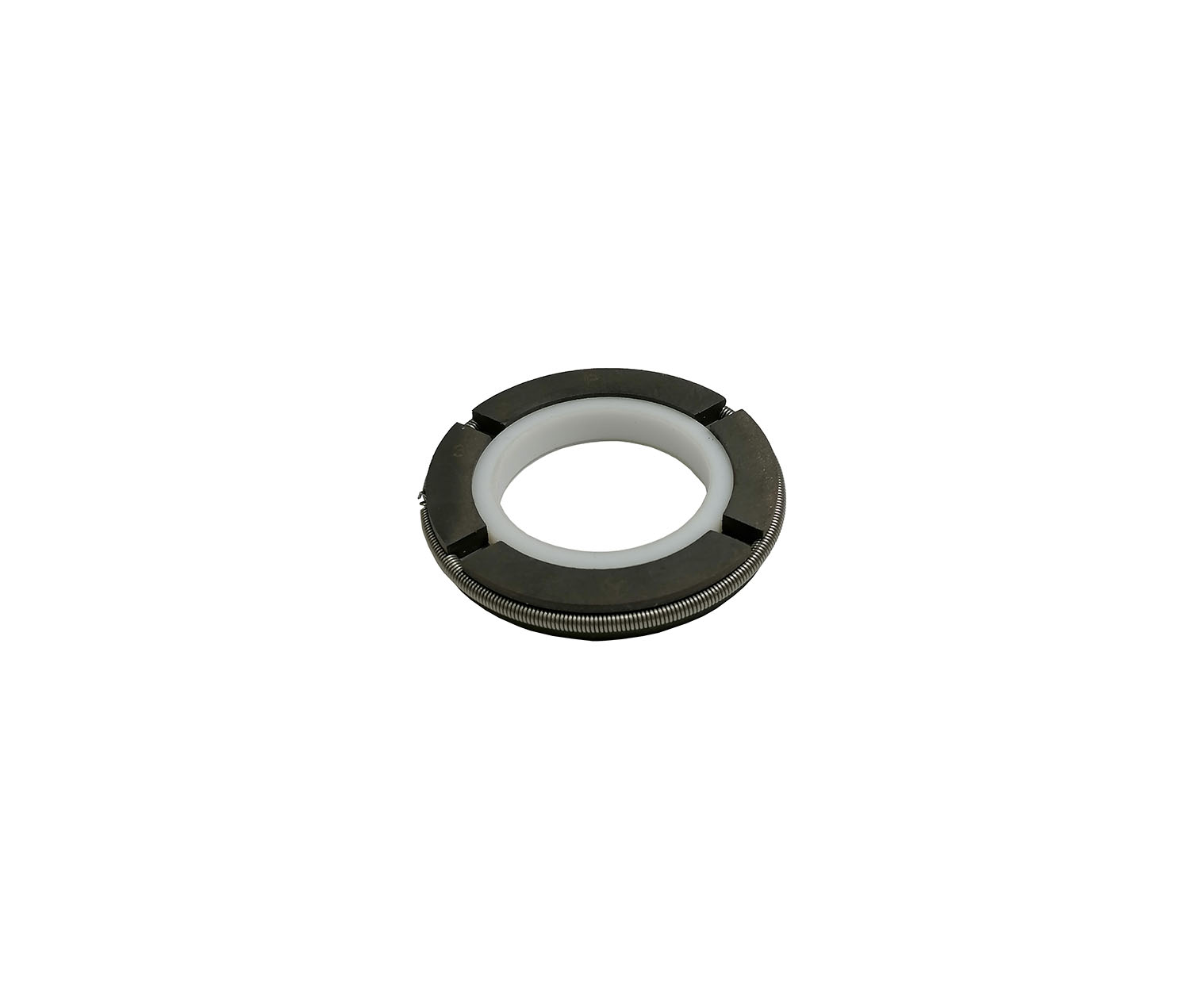

| 24 | 8040758 | RING |

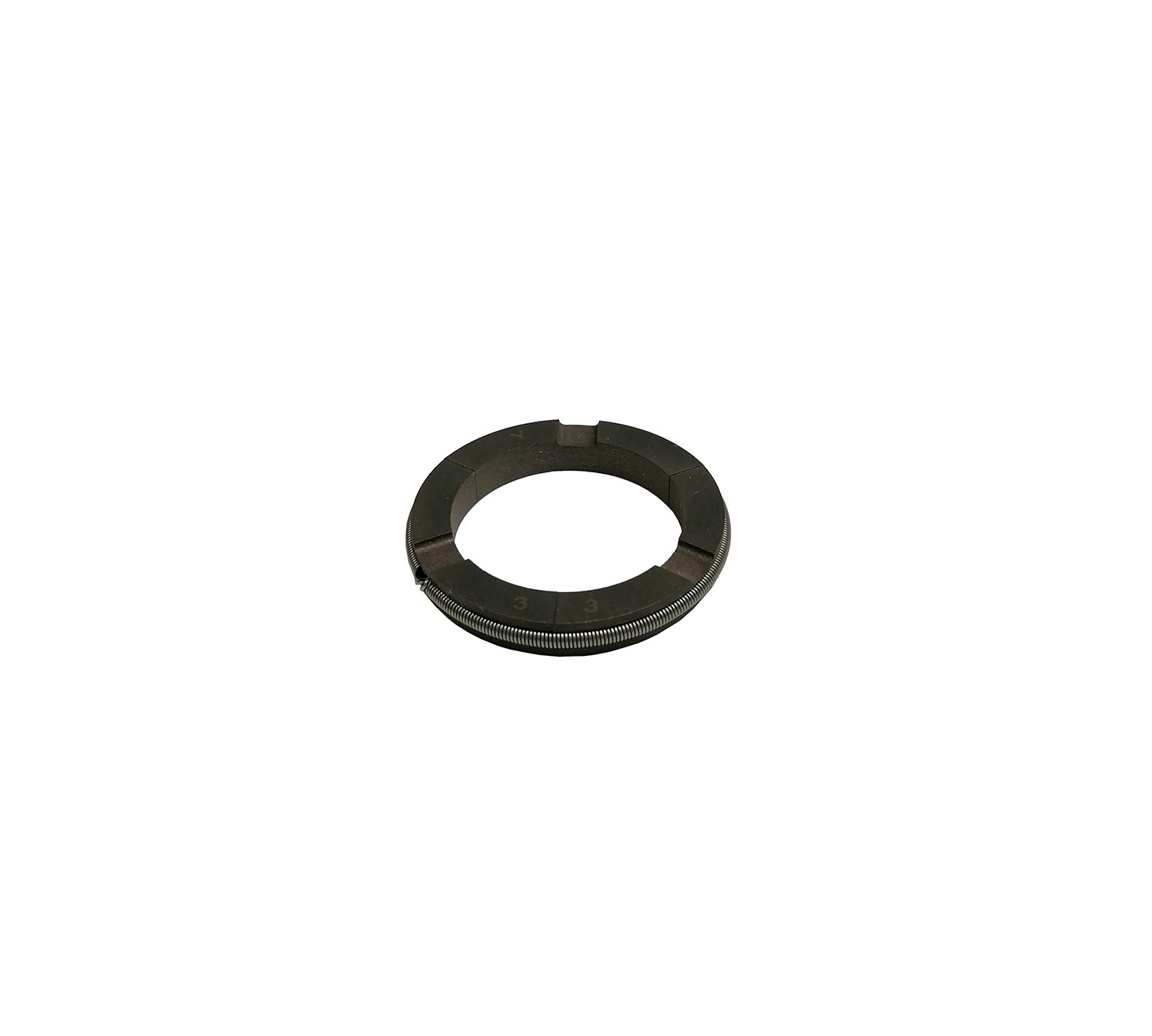

| 1 | 8943266 | PRESSURE BREAKER |

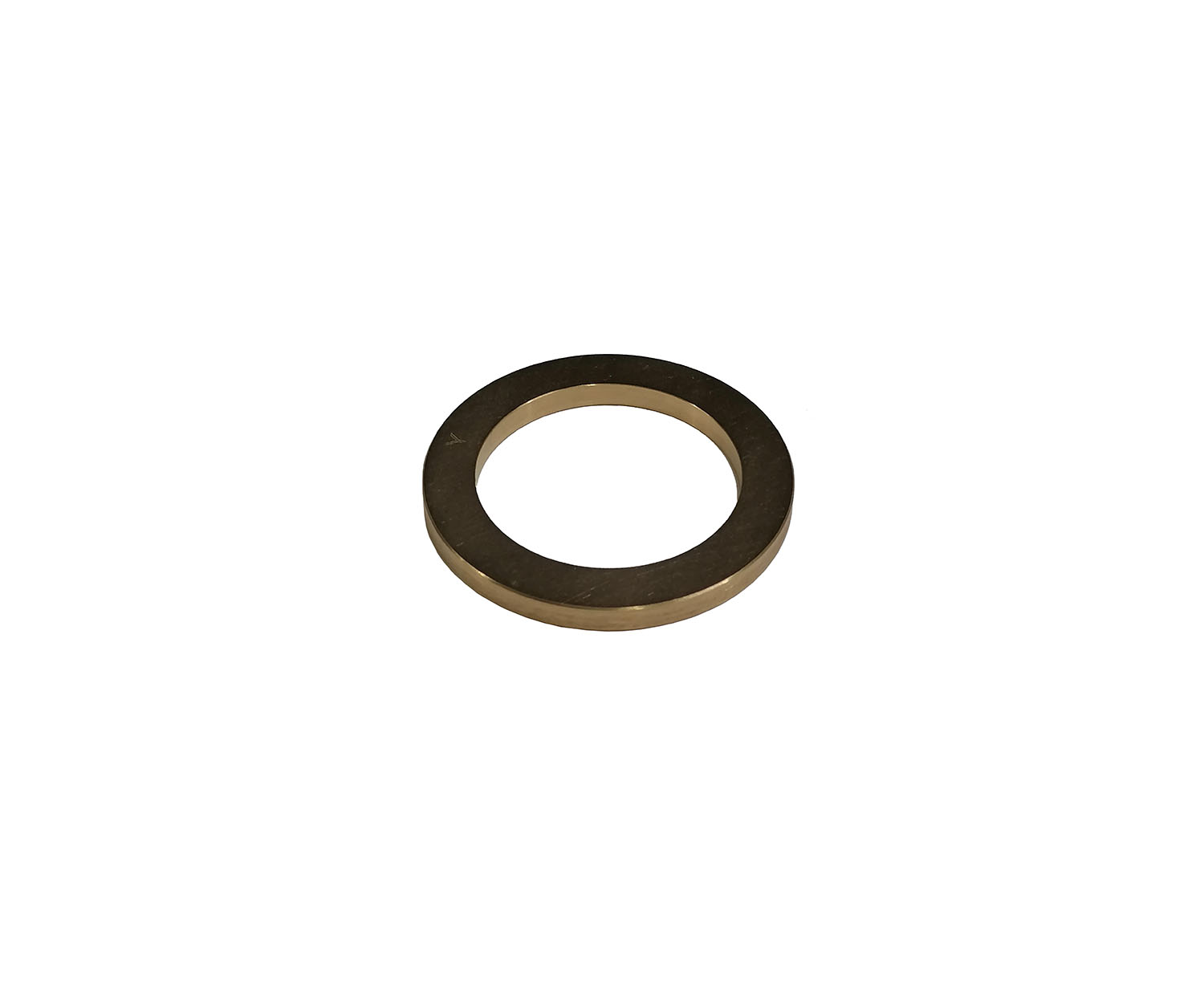

| 4 | 8160871 | RING |

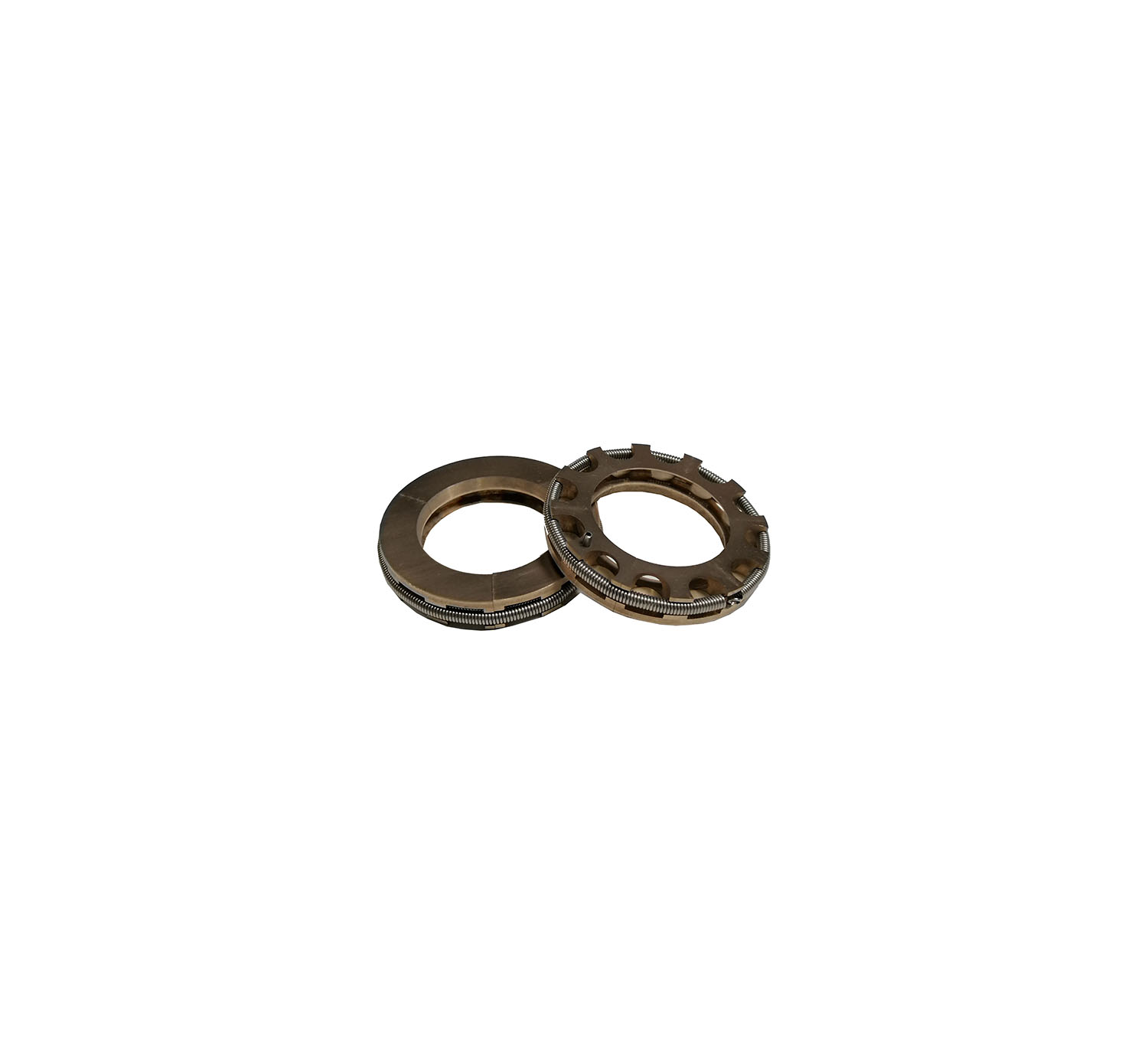

| 6 | 8267435 | RING |

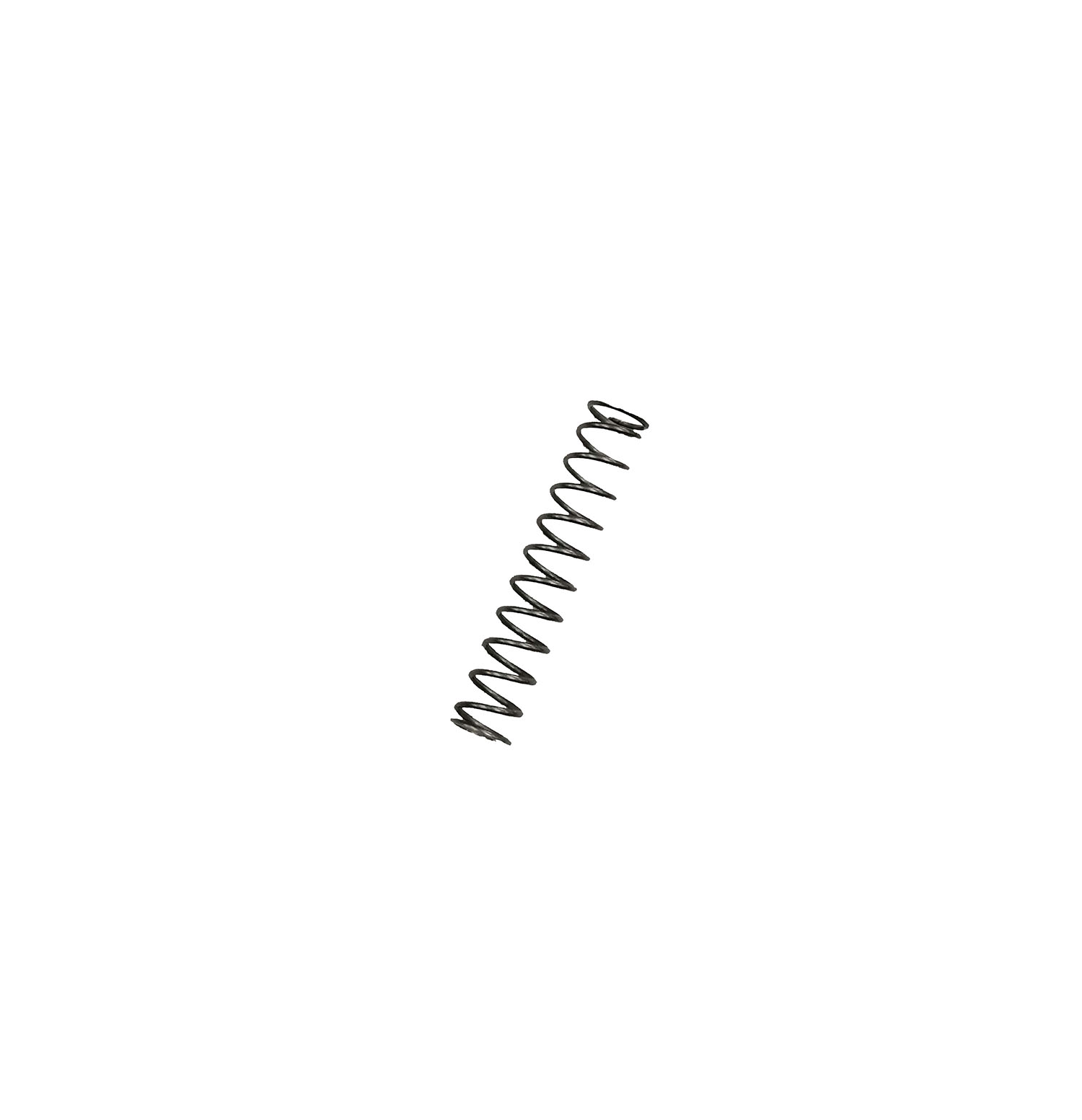

| 2 | 8541861 | SPRING |

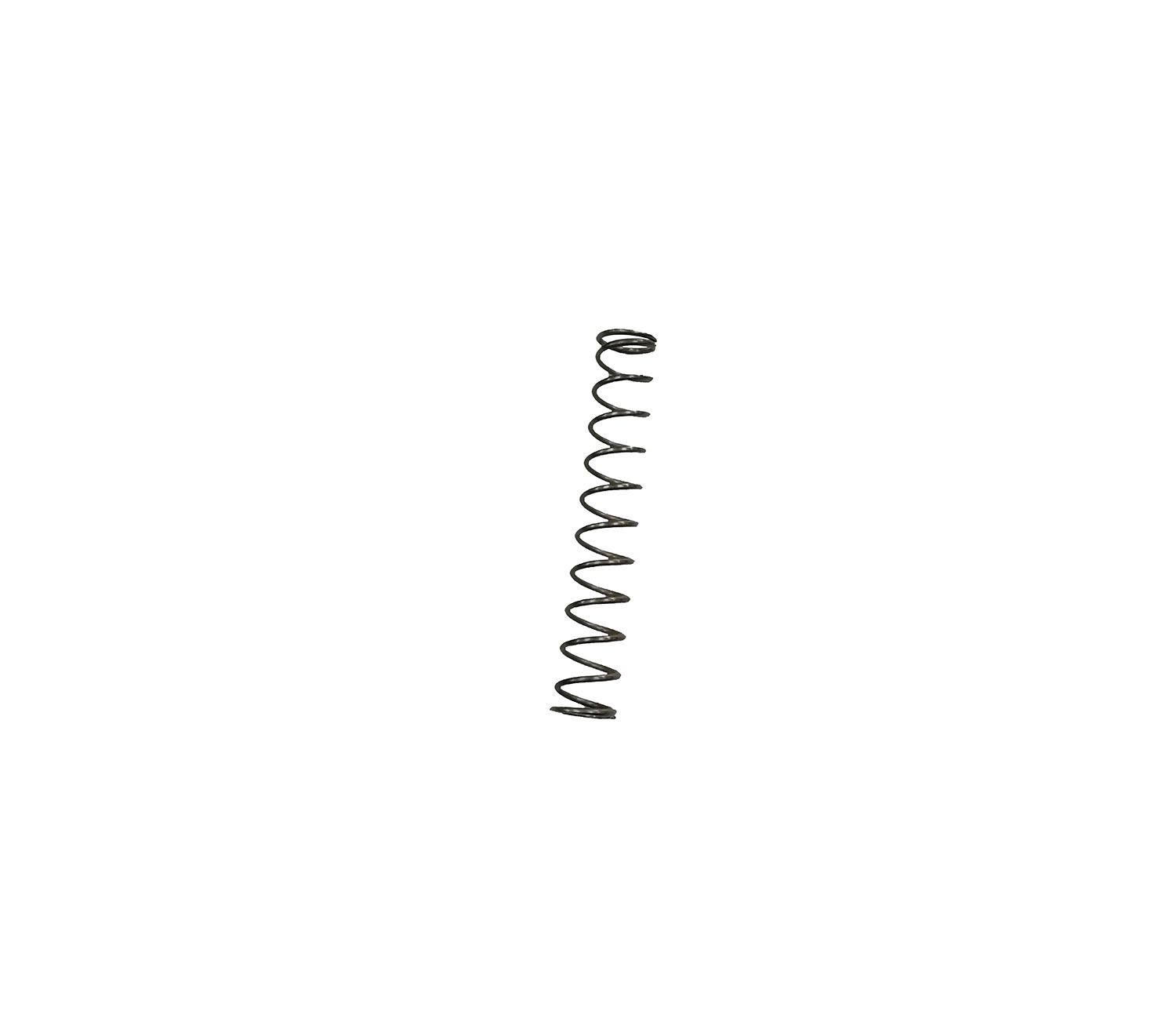

| 8 | 8070392 | SPRING |

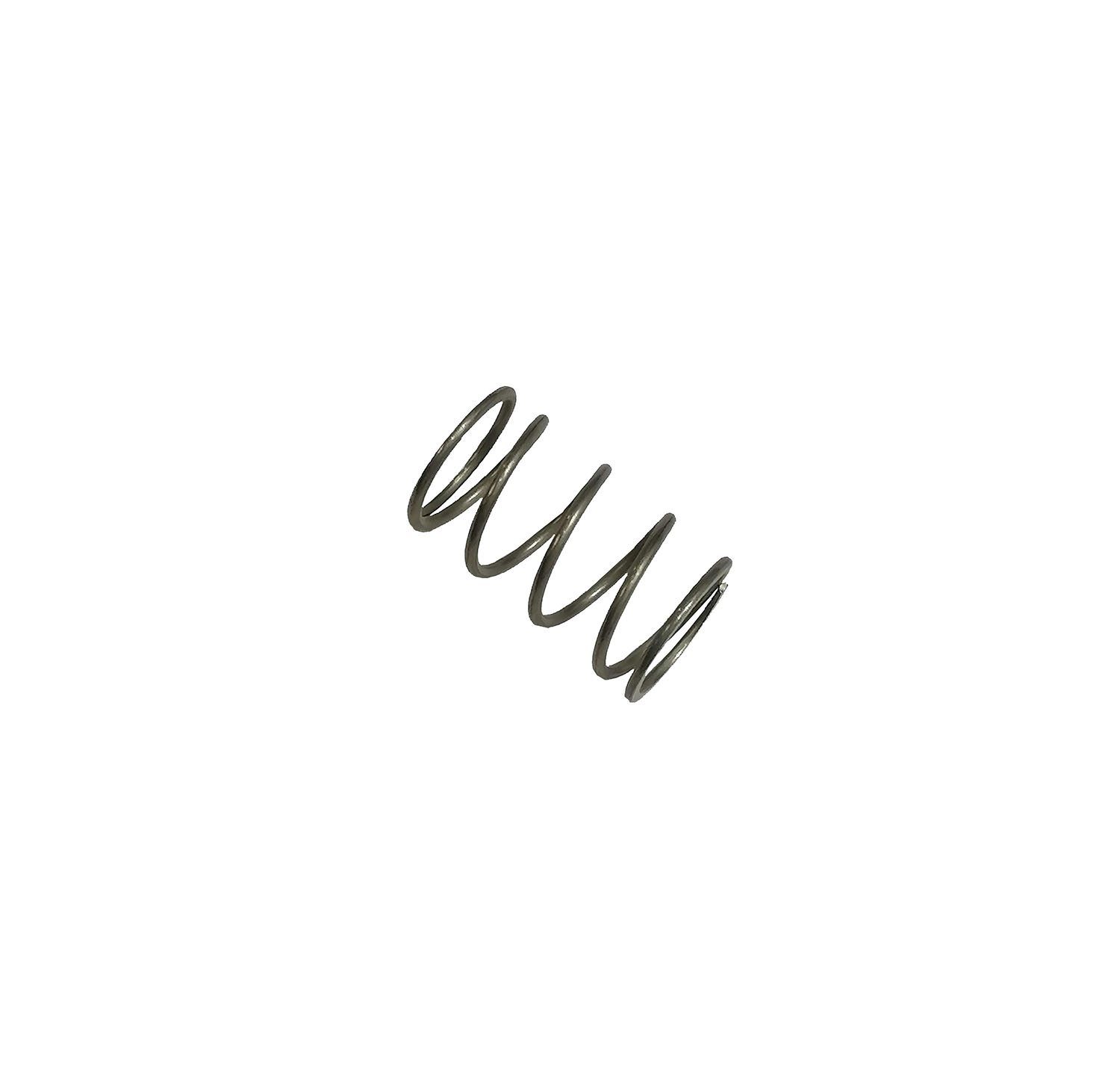

| 18 | 8454649 | SPRING |

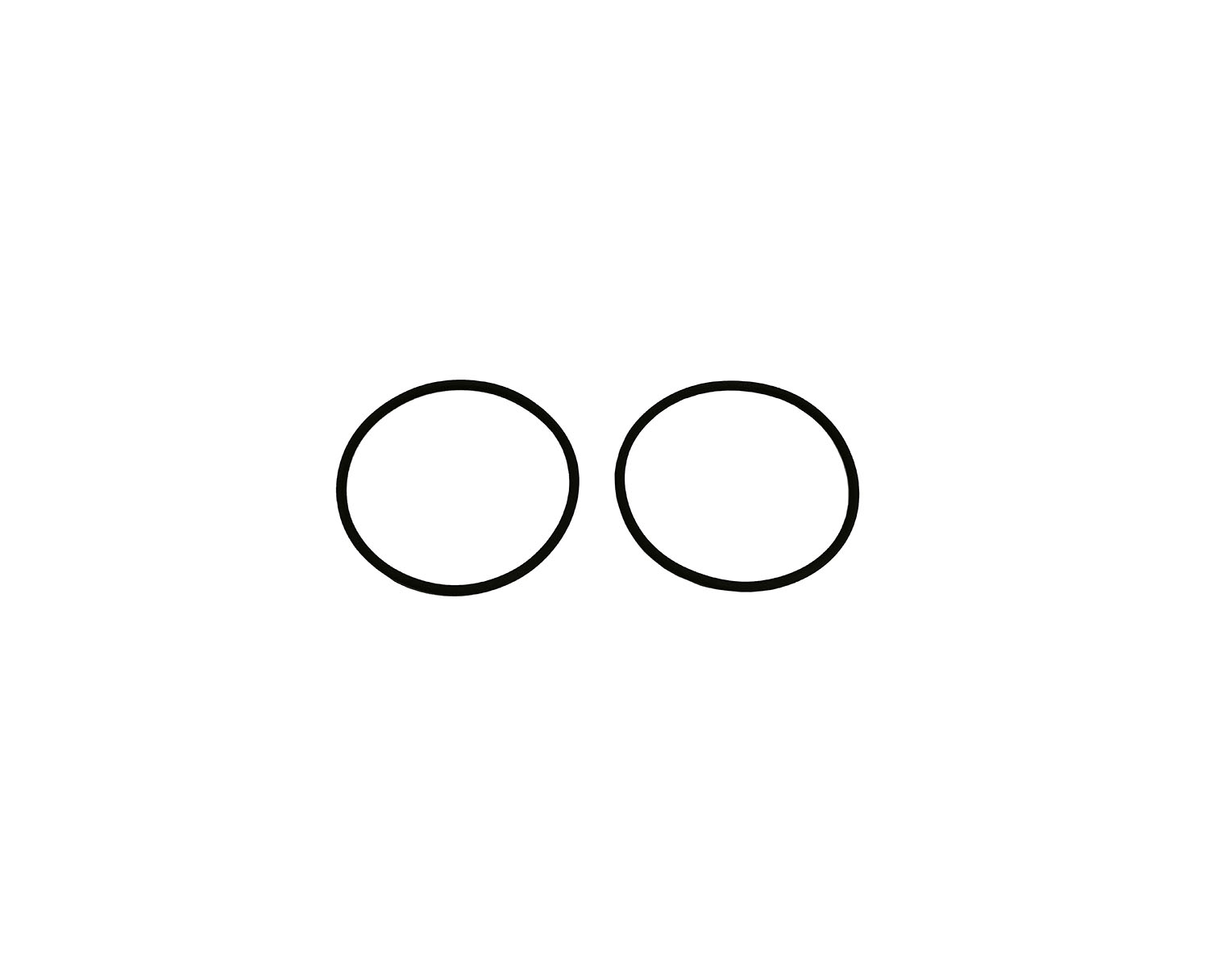

| 20 | 8332463 | O-RING |

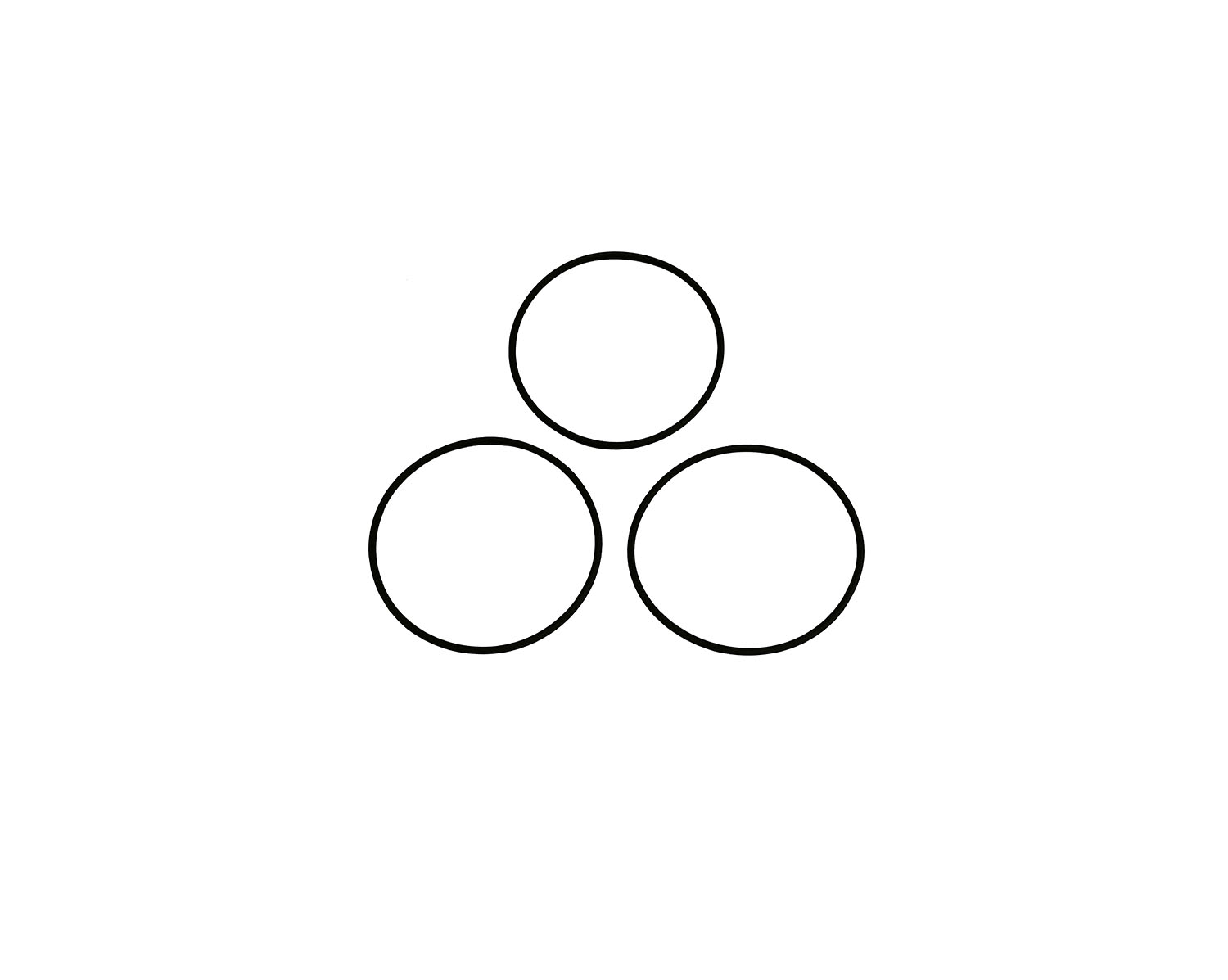

| 36 | 8672172 | O-RING |

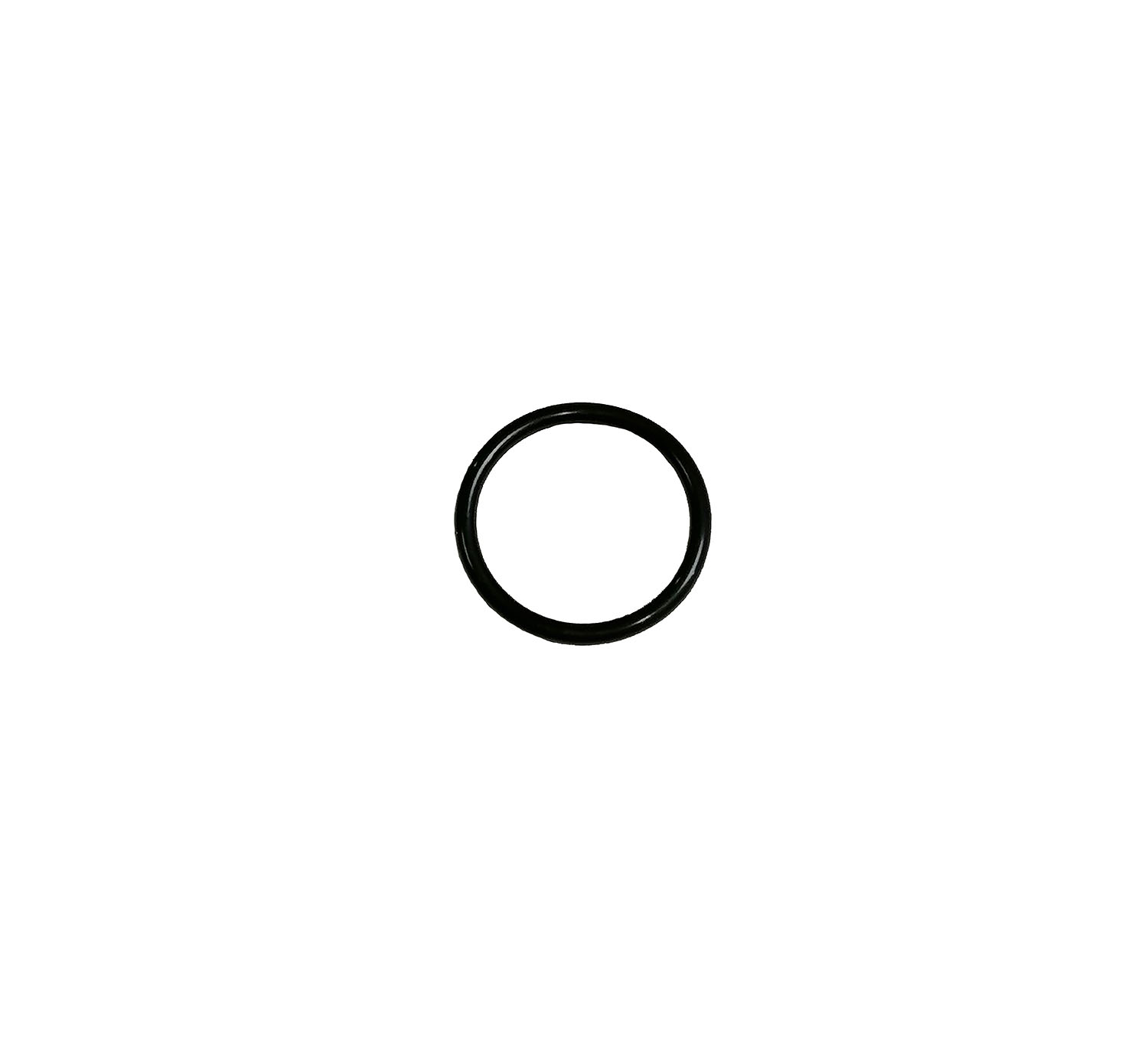

| 18 | 8888617 | O-RING |

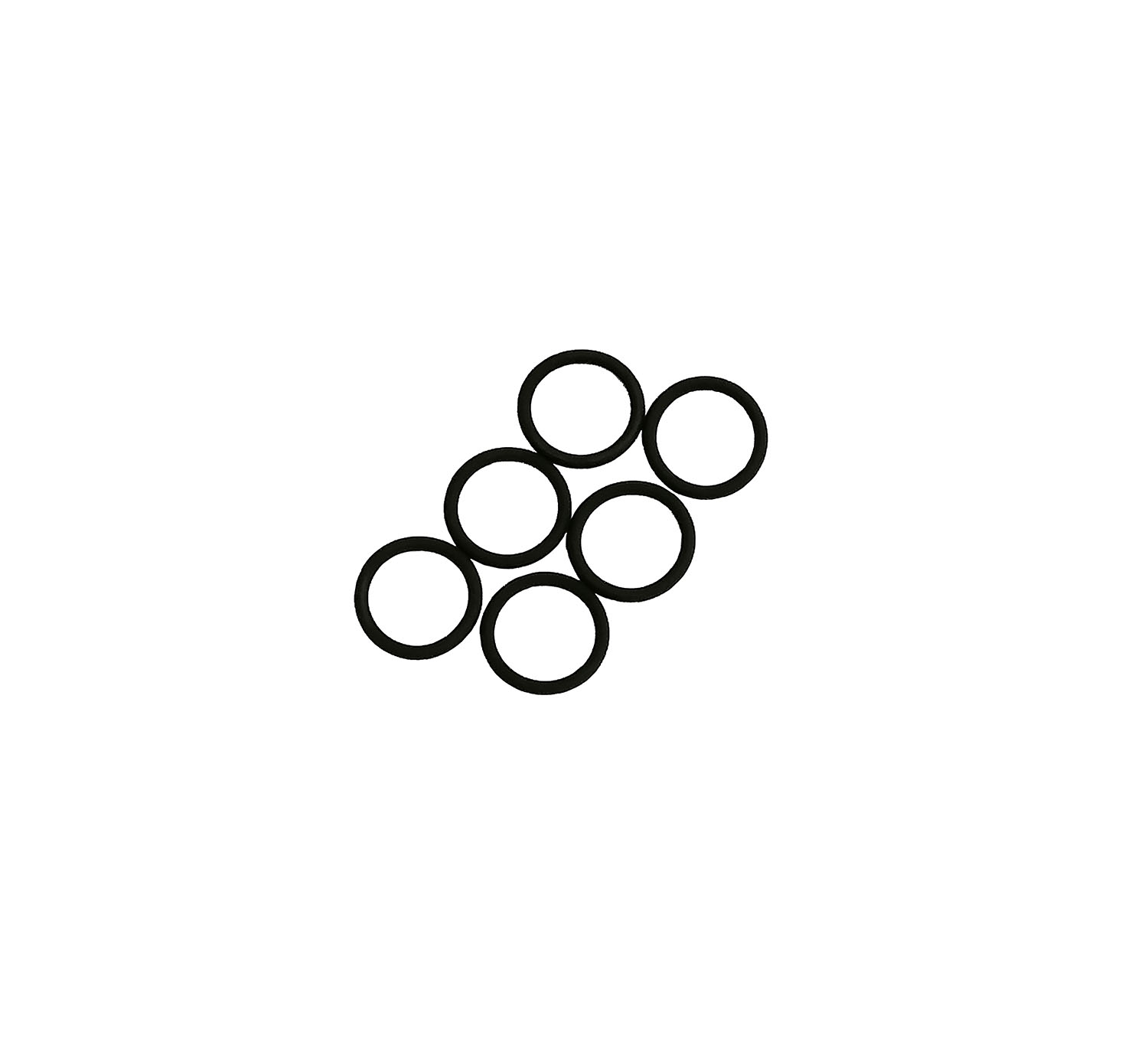

| 10 | 8645657 | O-RING |

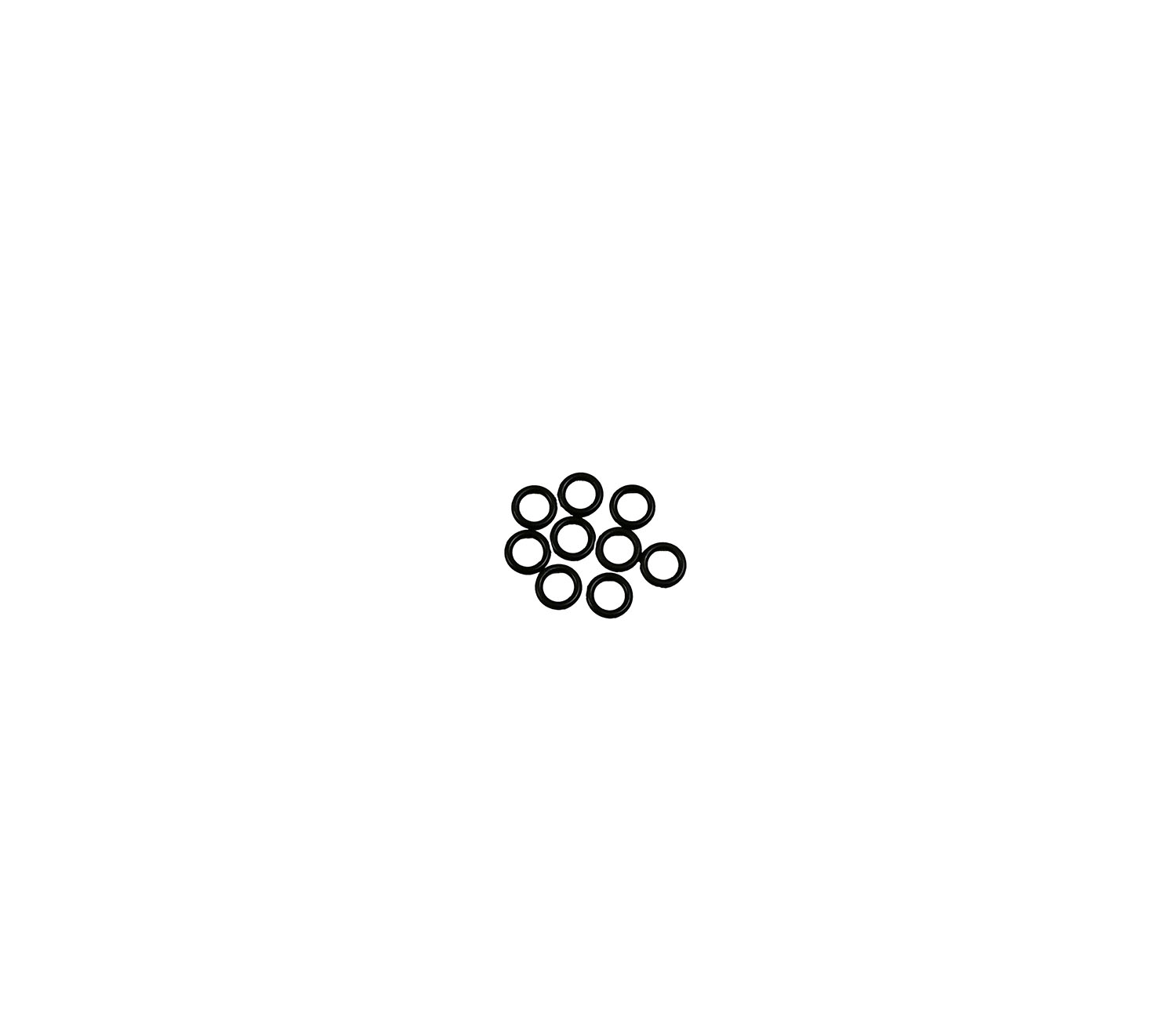

| 18 | 8329636 | O-RING |

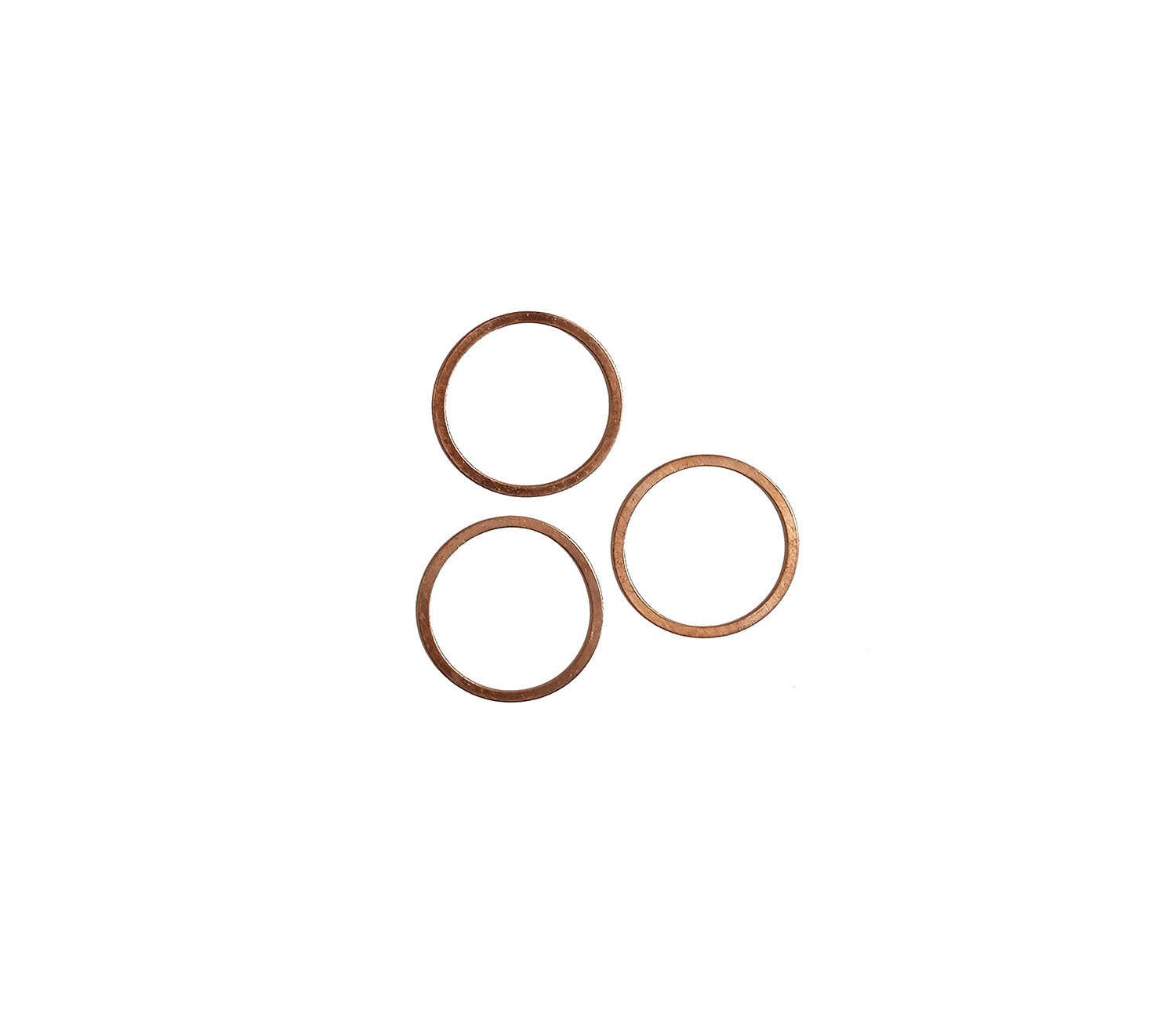

| 10 | 8014175 | JOINT |

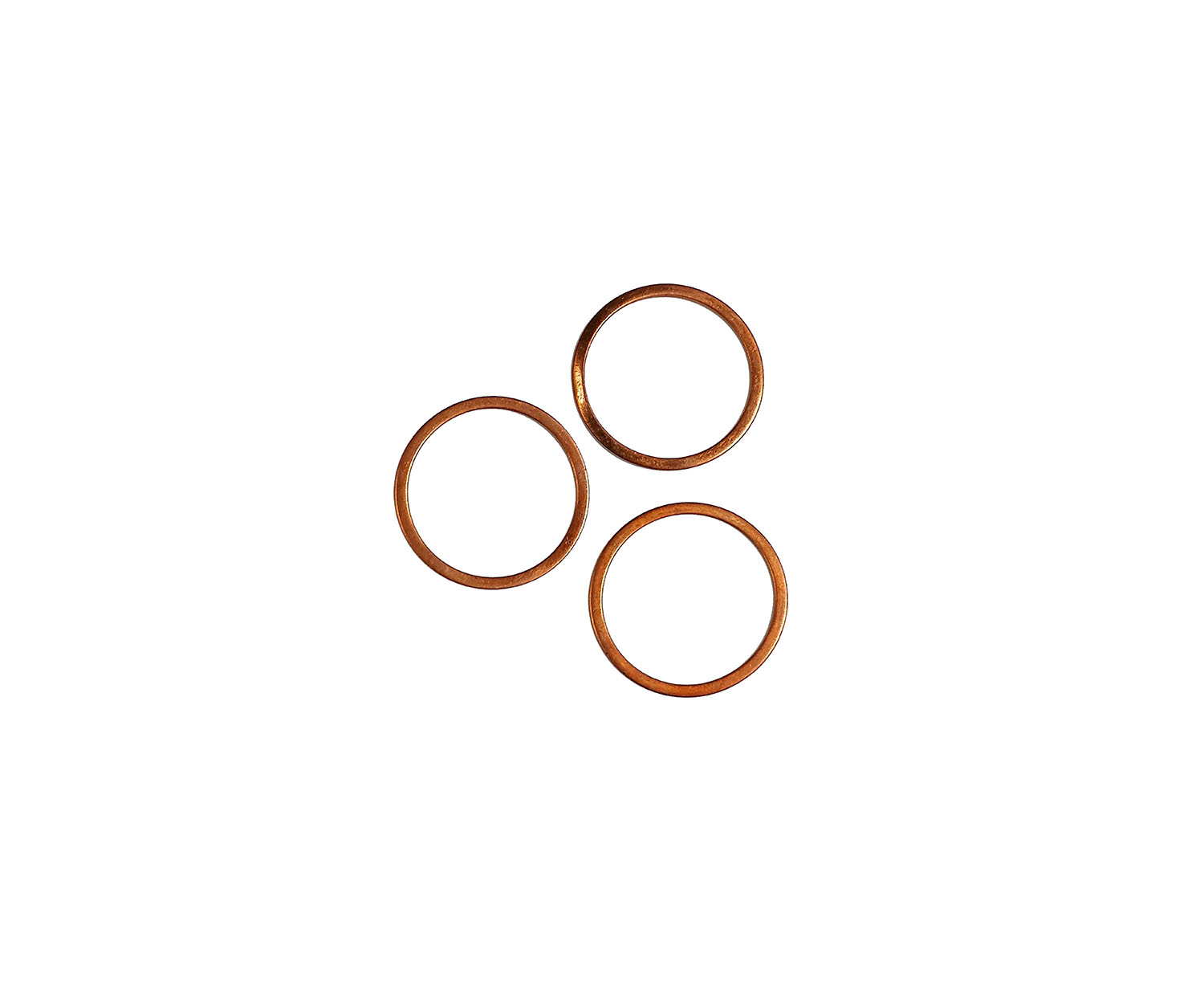

| 10 | 8970889 | JOINT |
