Compressor maintenance kit 4HA6-TER-LT Compressor maintenance kit 4HA6-TER-LT
List of parts:
| Cantidad | Código | Descipcion |
|---|---|---|

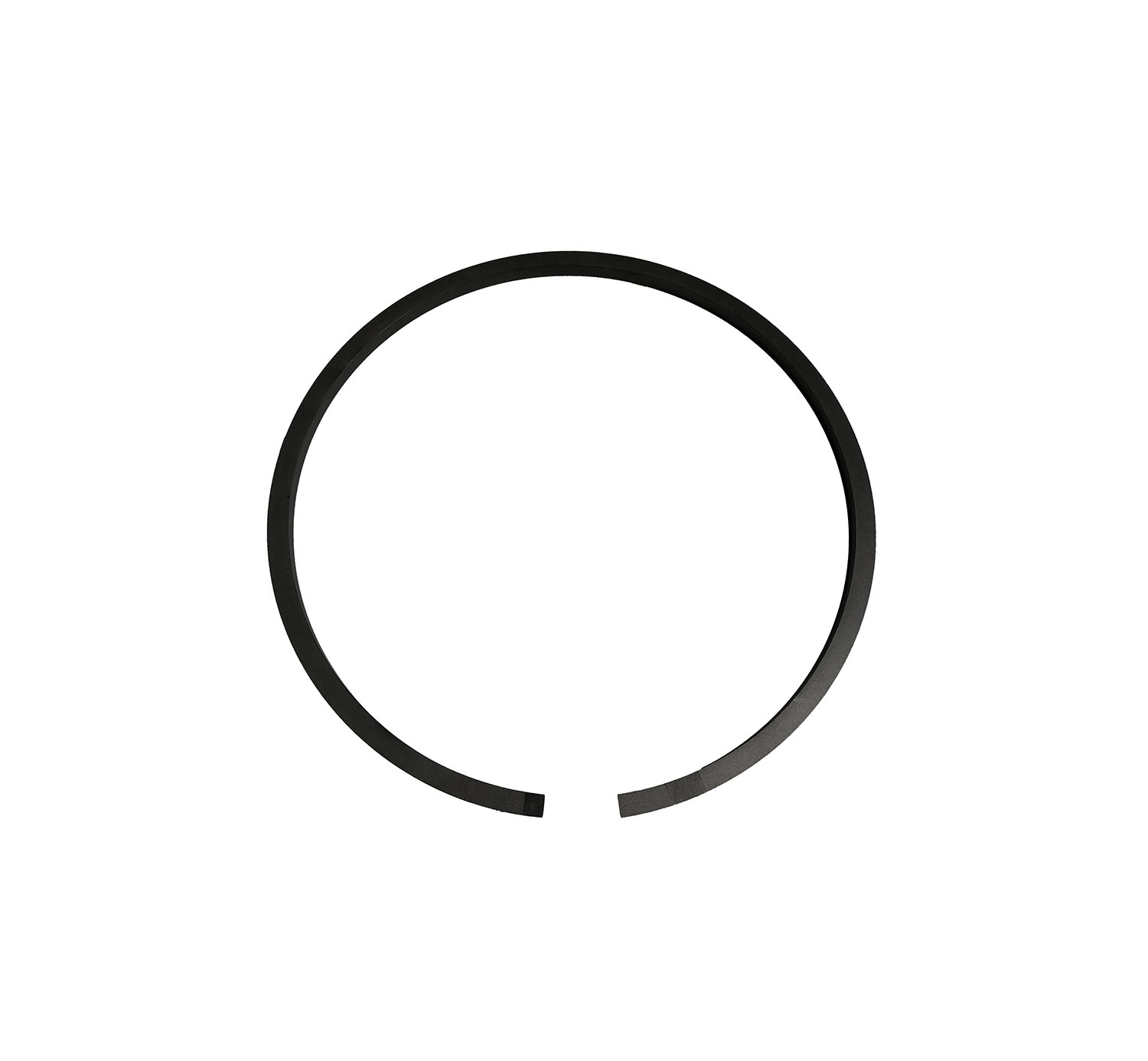

| 4 | 3831810 | PISTON RING DIAM. 310 MM |

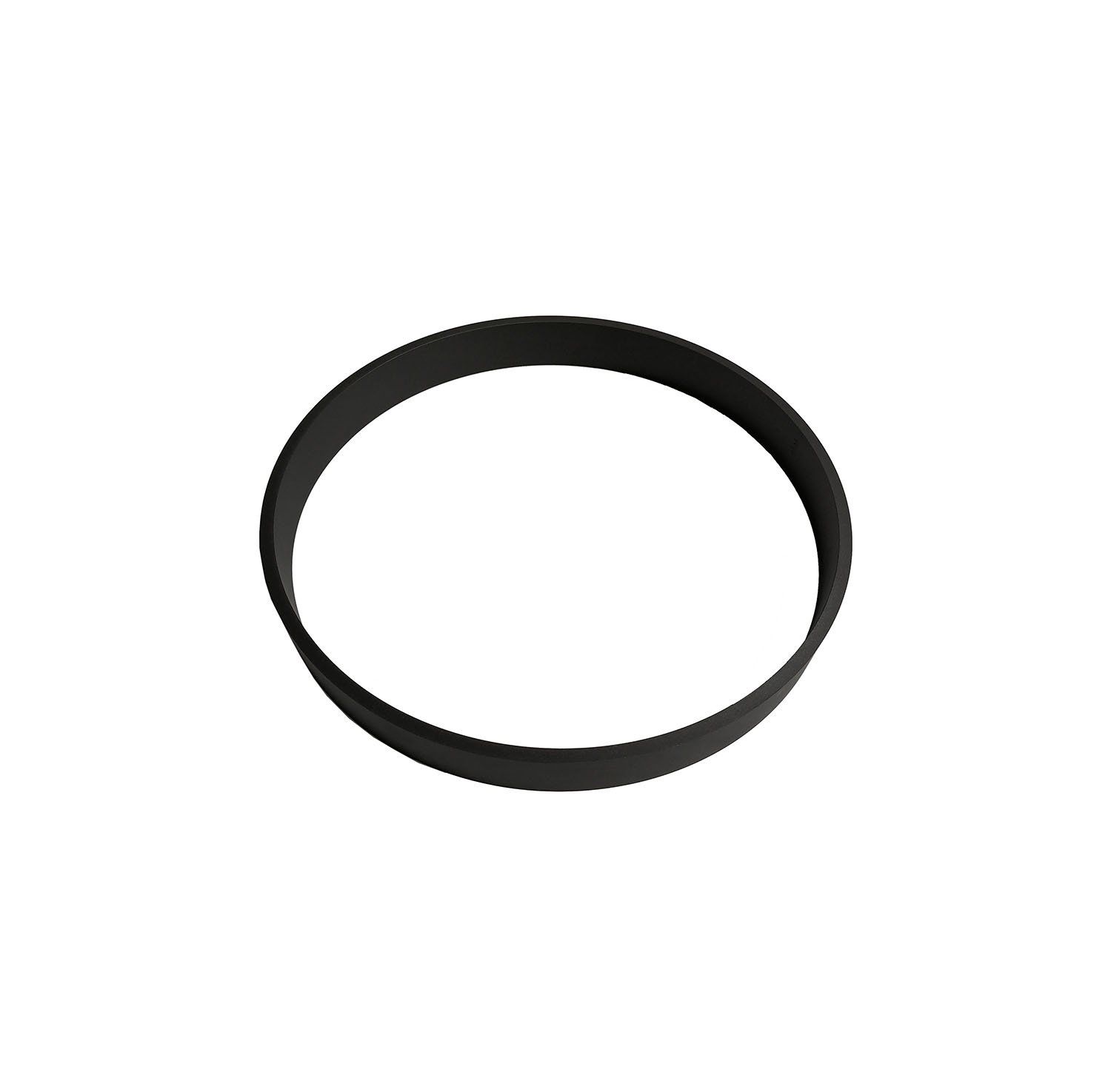

| 4 | 3831820 | RIDER RING DIAM. 310MM |
| 6 | 3831660 | PISTON RING DIAM. 185 MM |

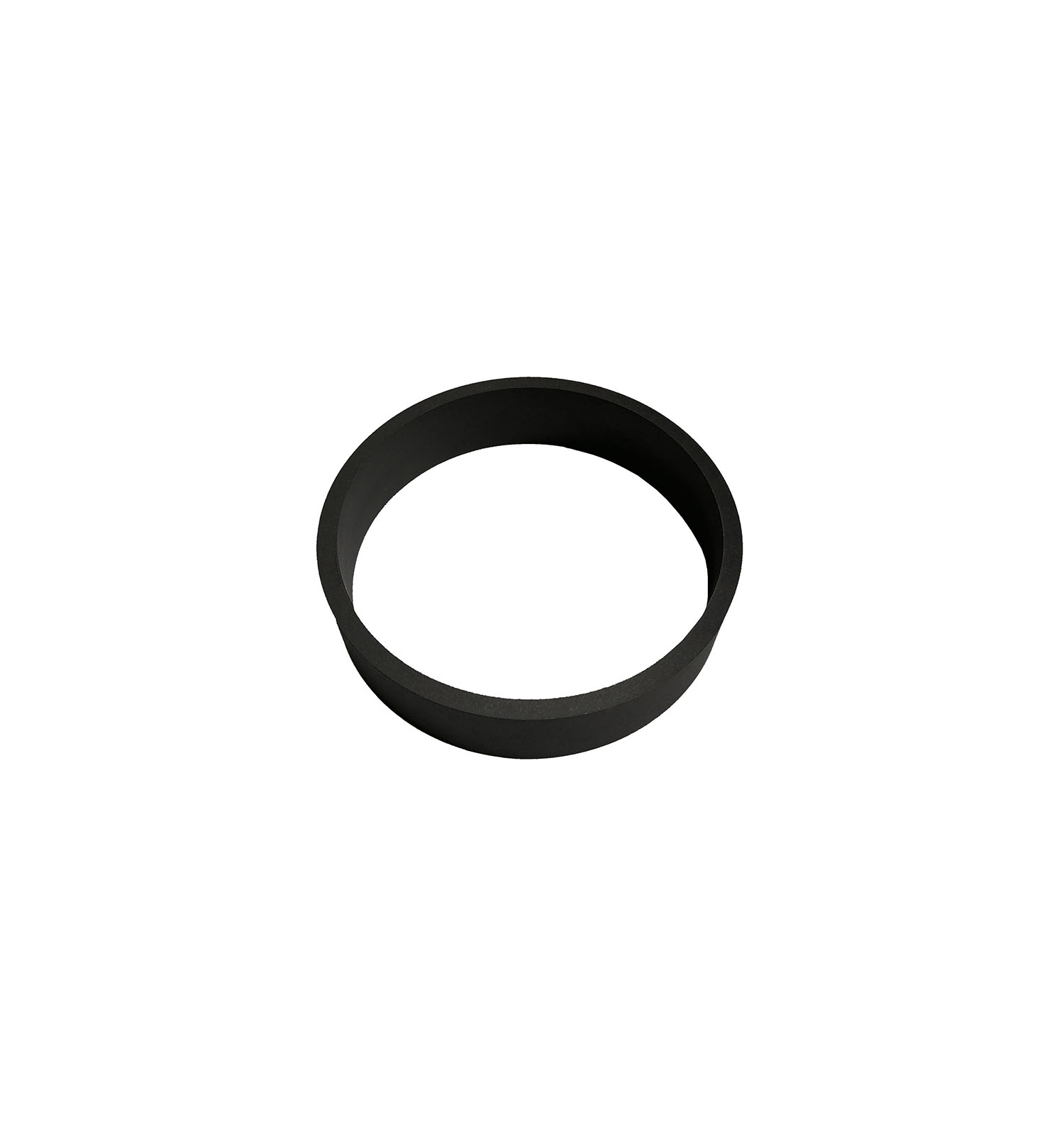

| 4 | 3831670 | RIDER RING DIAM. 185 MM. |

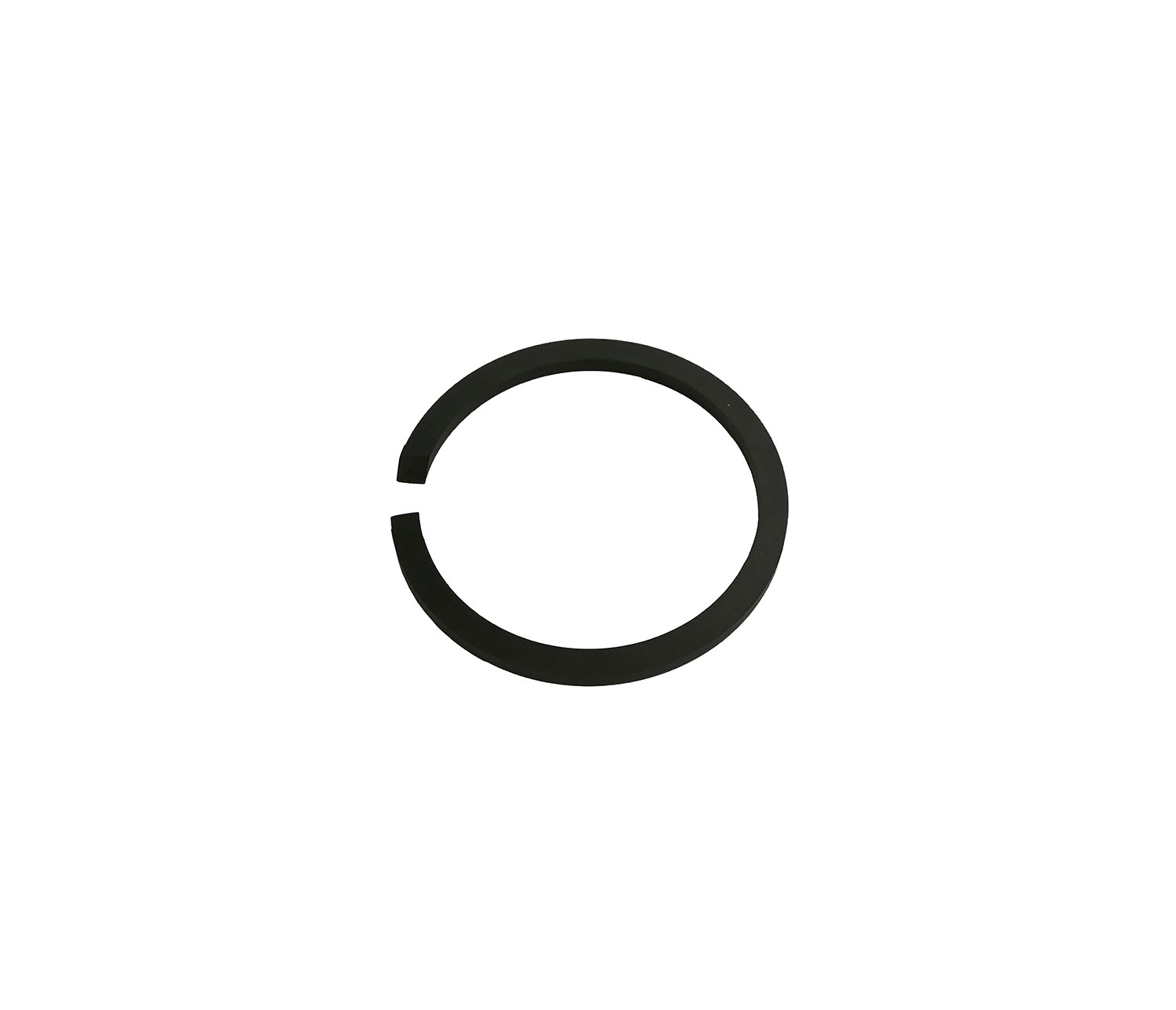

| 4 | 3831570 | PISTON RING DIAM. 140 MM |

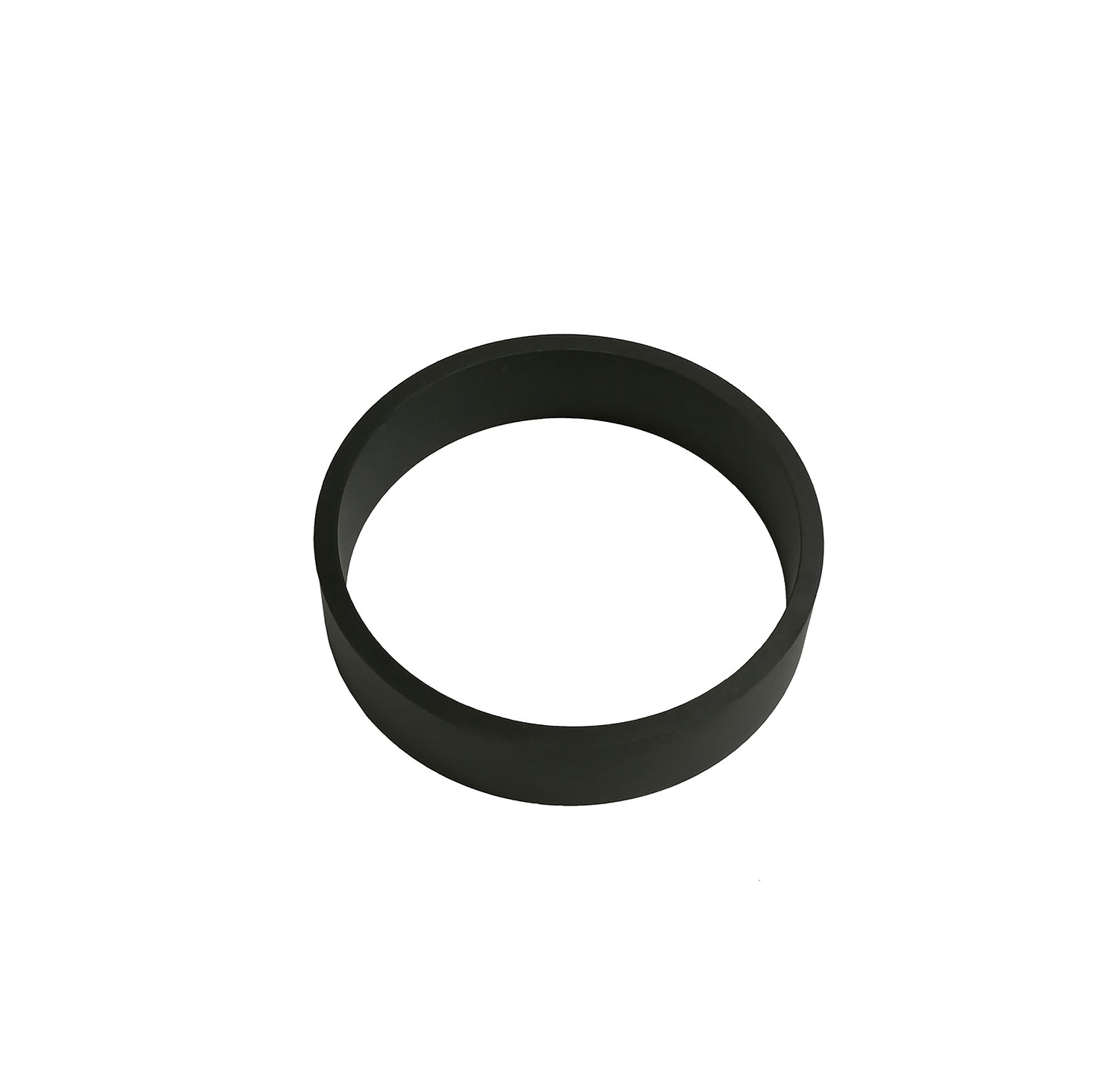

| 1 | 3831580 | RIDER RING DIAM. 140 MM |

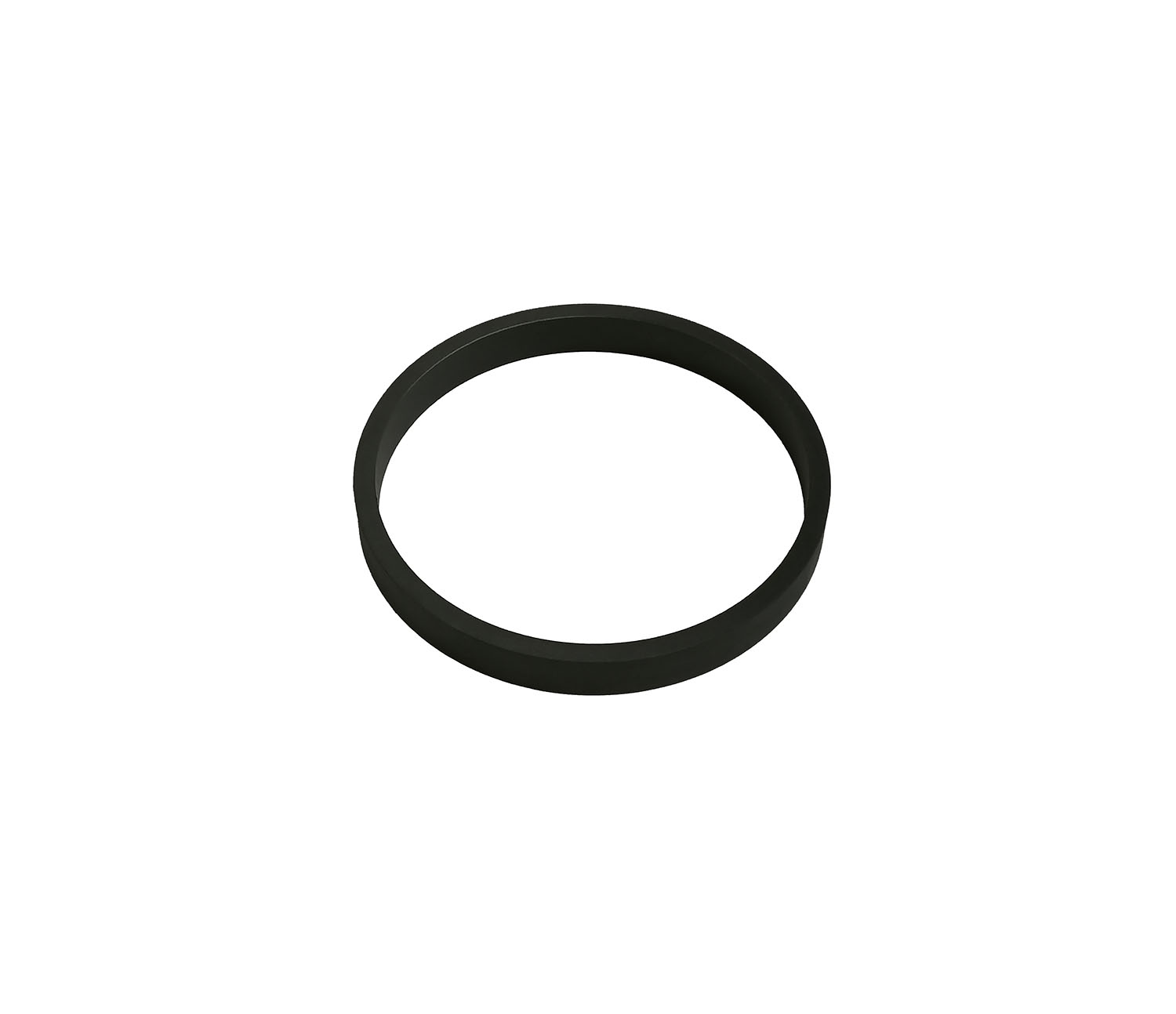

| 1 | 3831590 | RIDER RING DIAM. 140 MM |

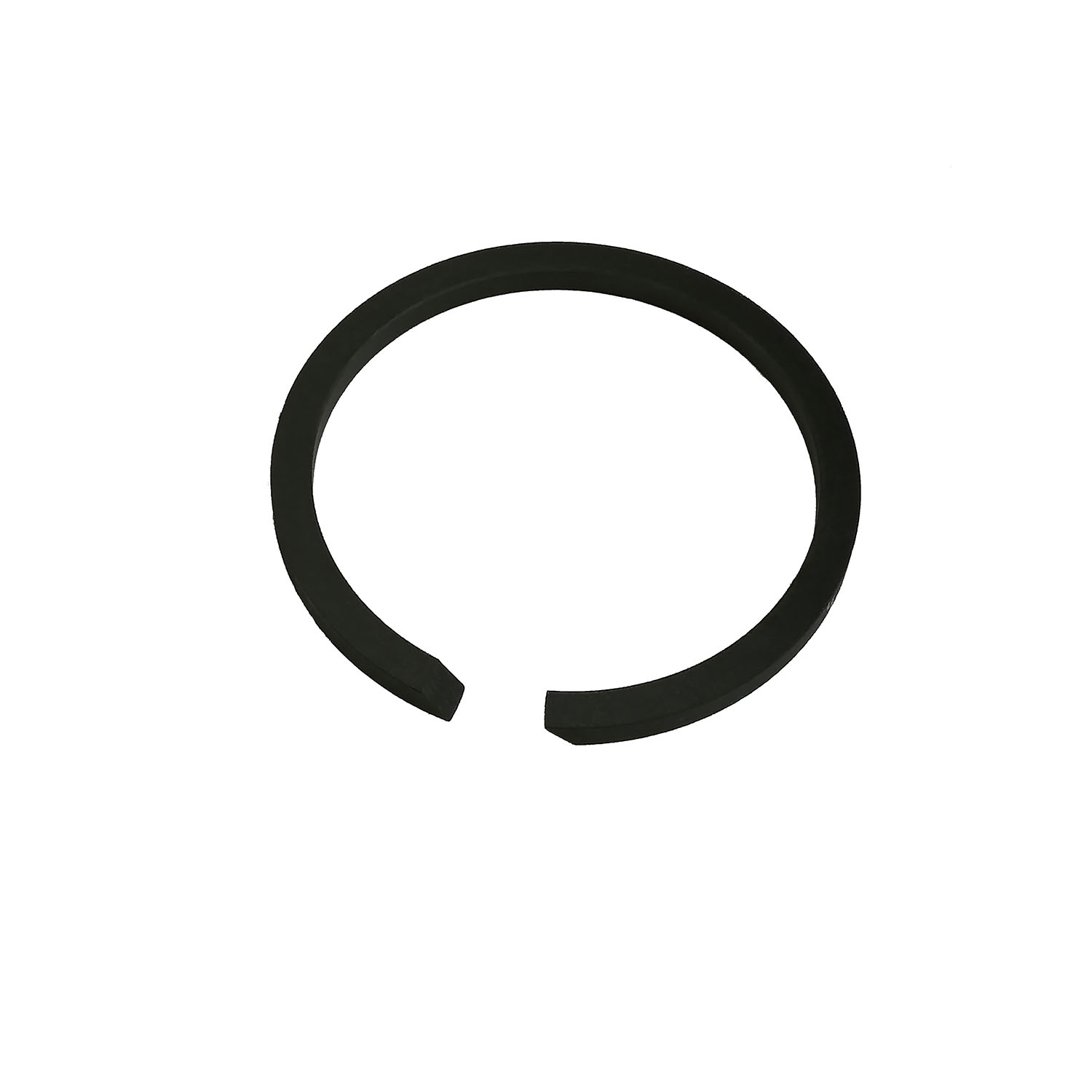

| 6 | 3831420 | PISTON RING DIAM. 95 MM |

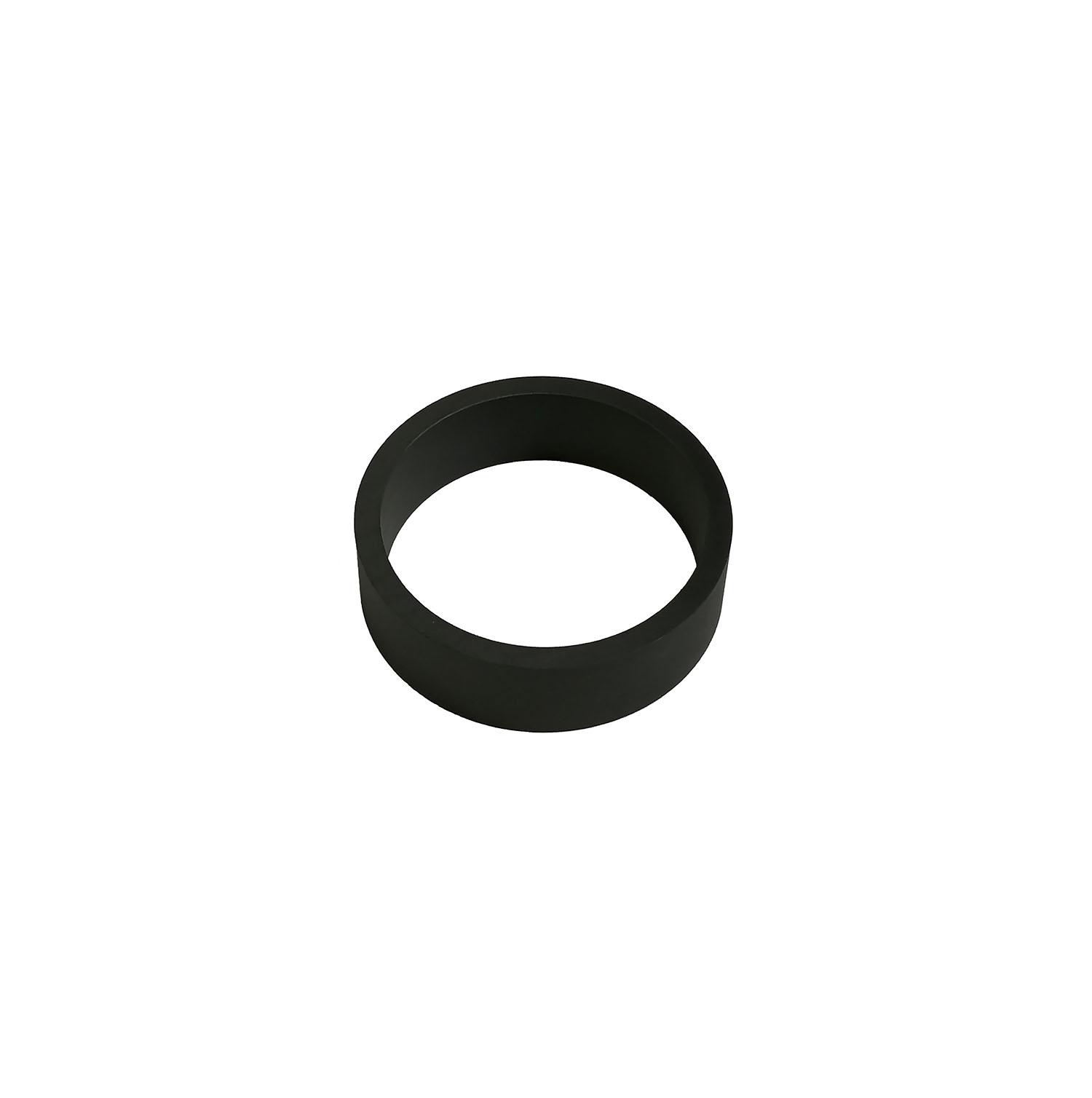

| 2 | 3831430 | RIDER RING DIAM. 95 MM. |

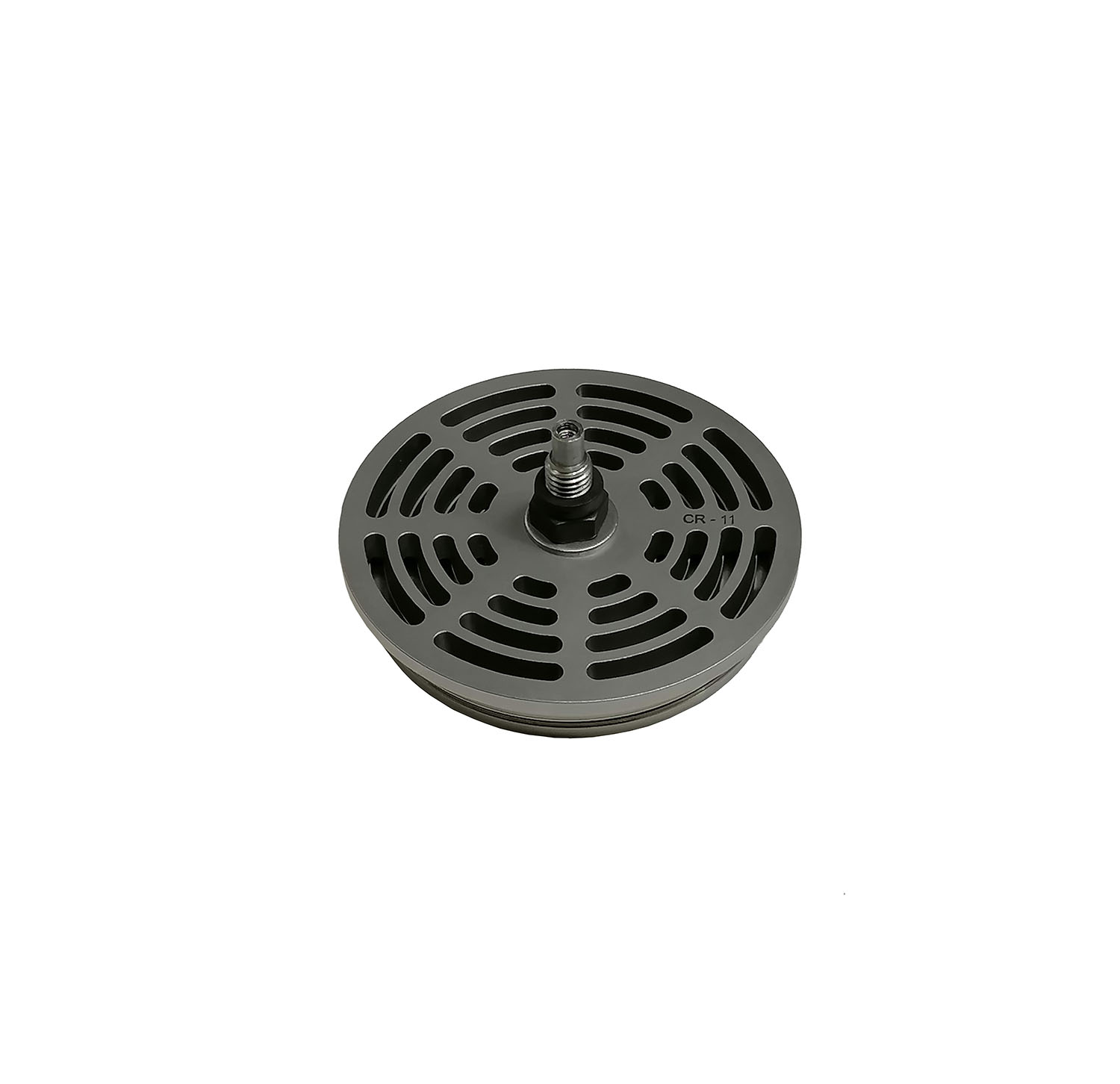

| 12 | 3944700 | VALVE 105CR-11 ADM. |
| 12 | 3945700 | VALVE 105CR-12 IMP. |

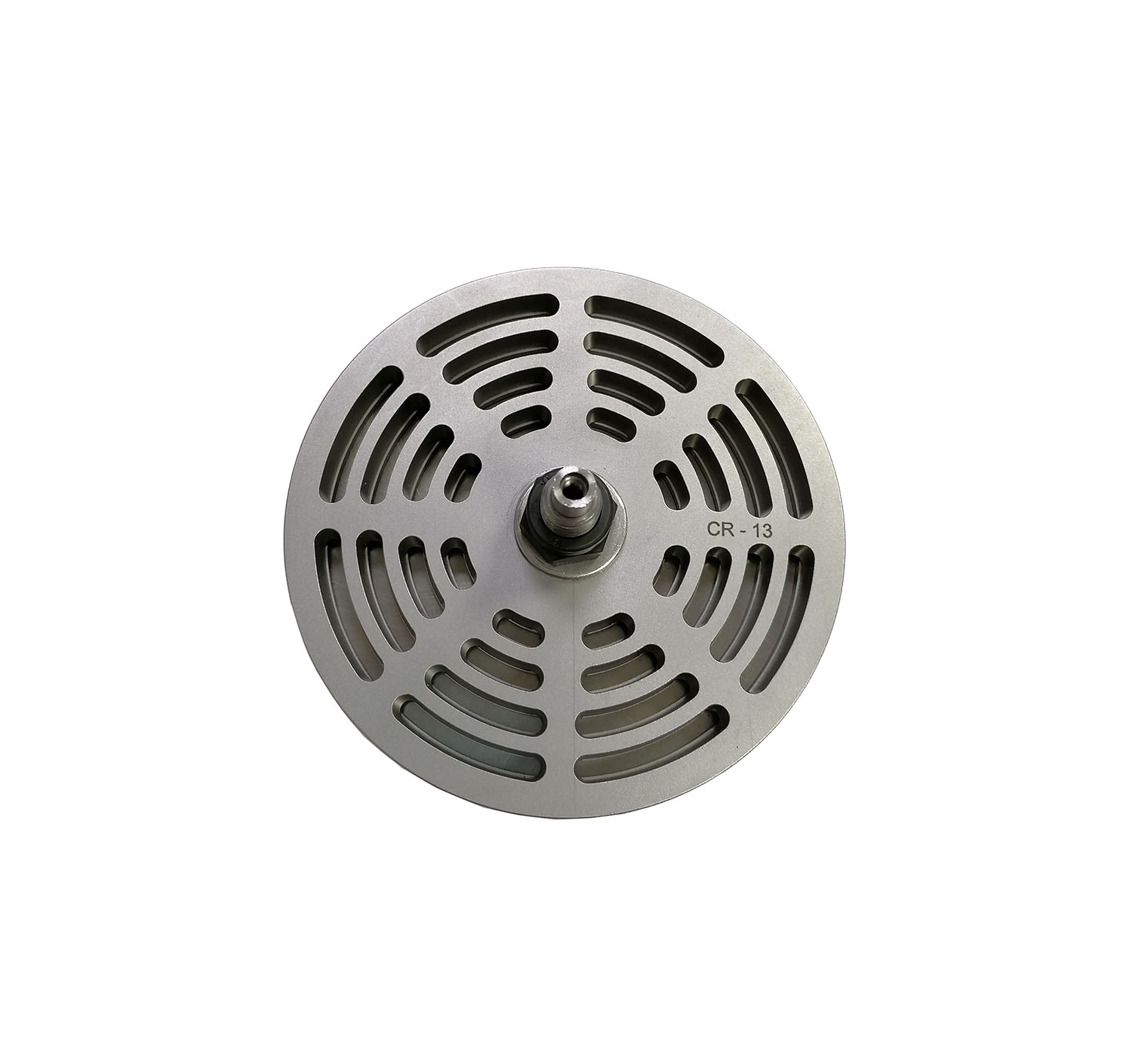

| 6 | 3944710 | VALVE 105CR-13 ADM. |

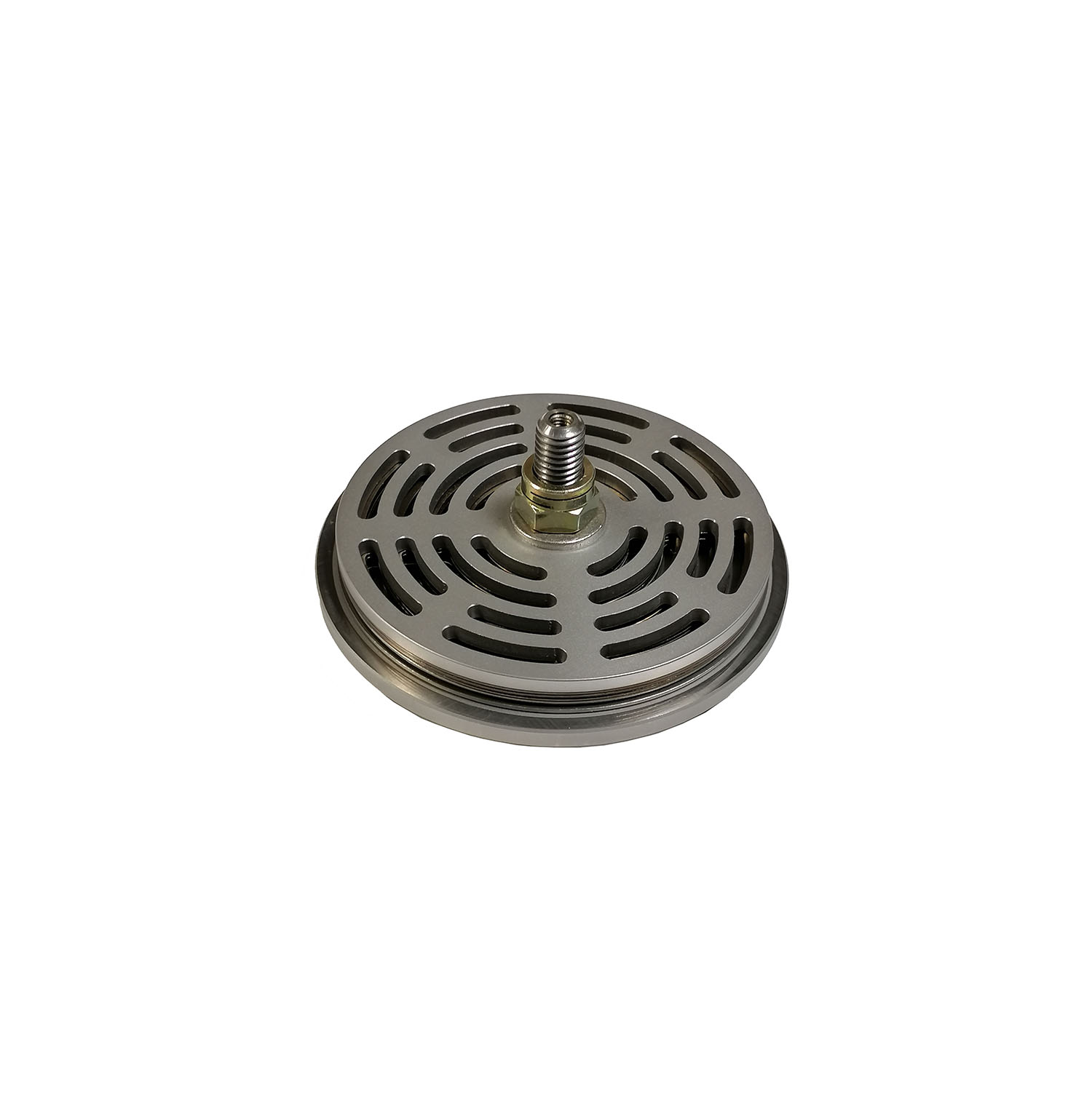

| 4 | 3945710 | VALVE 105CR-14 IMP. |

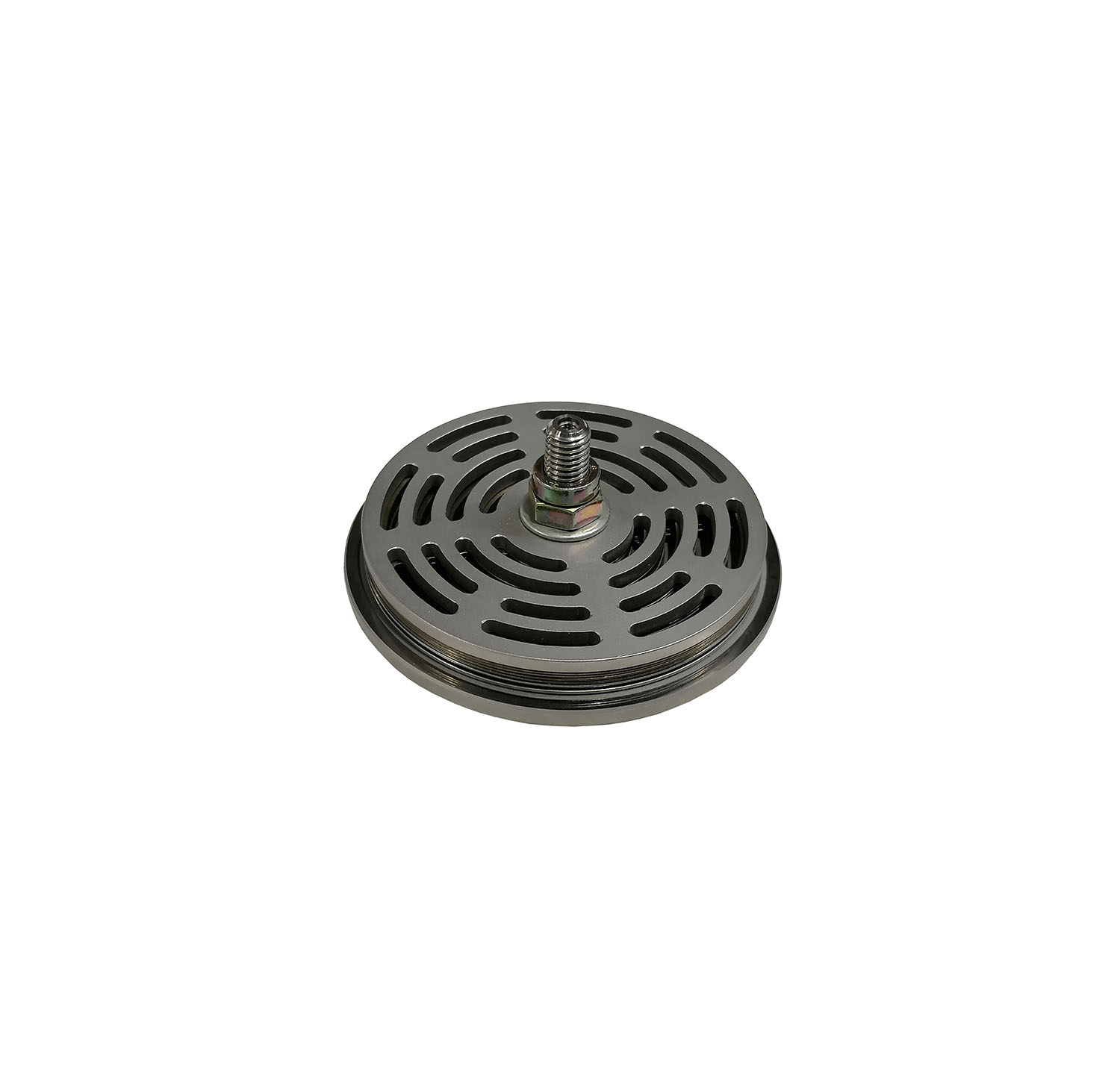

| 2 | 3945720 | VALVE 105CR-16 IMP. |

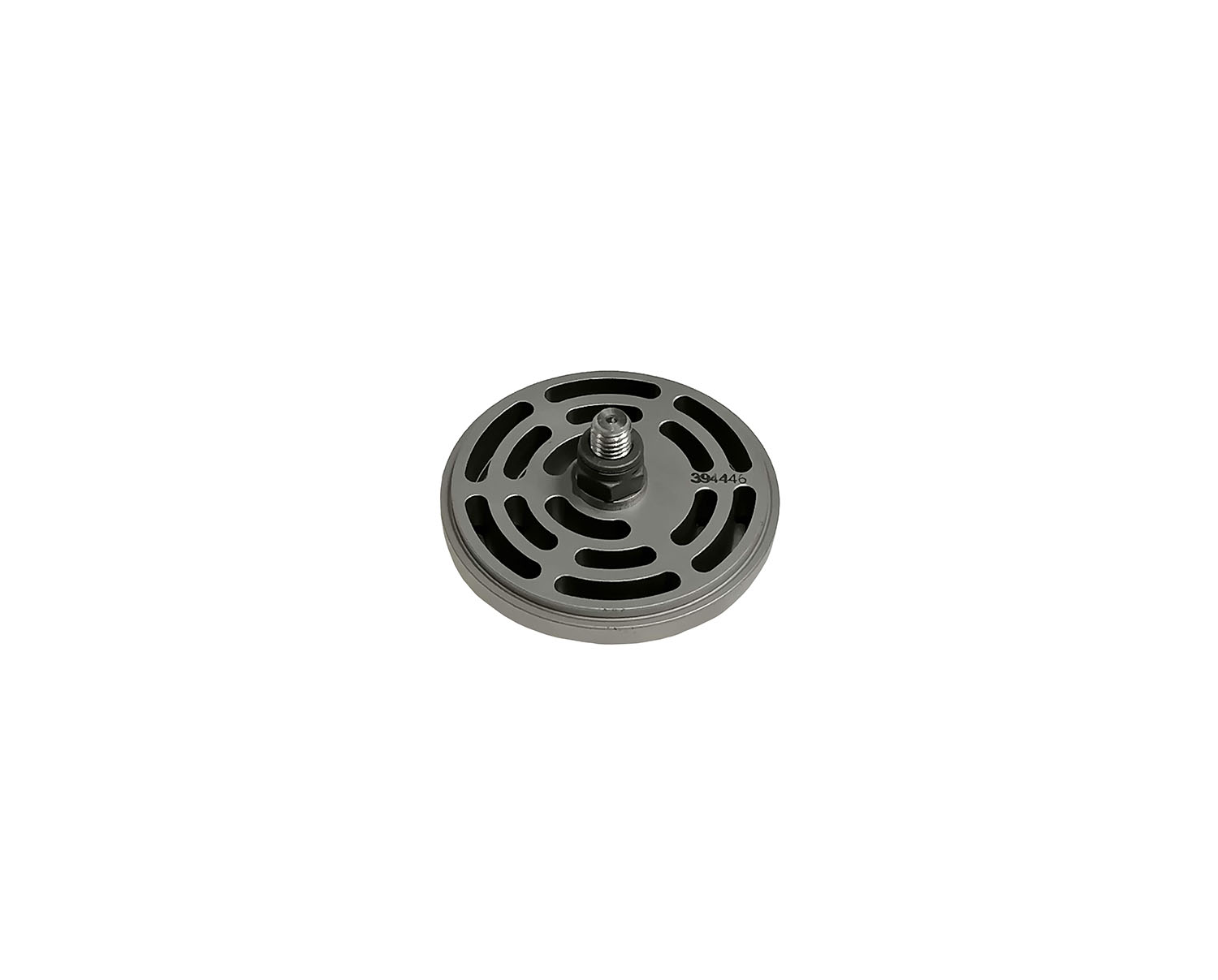

| 2 | 3944460 | VALVE 70RLX ADM. |

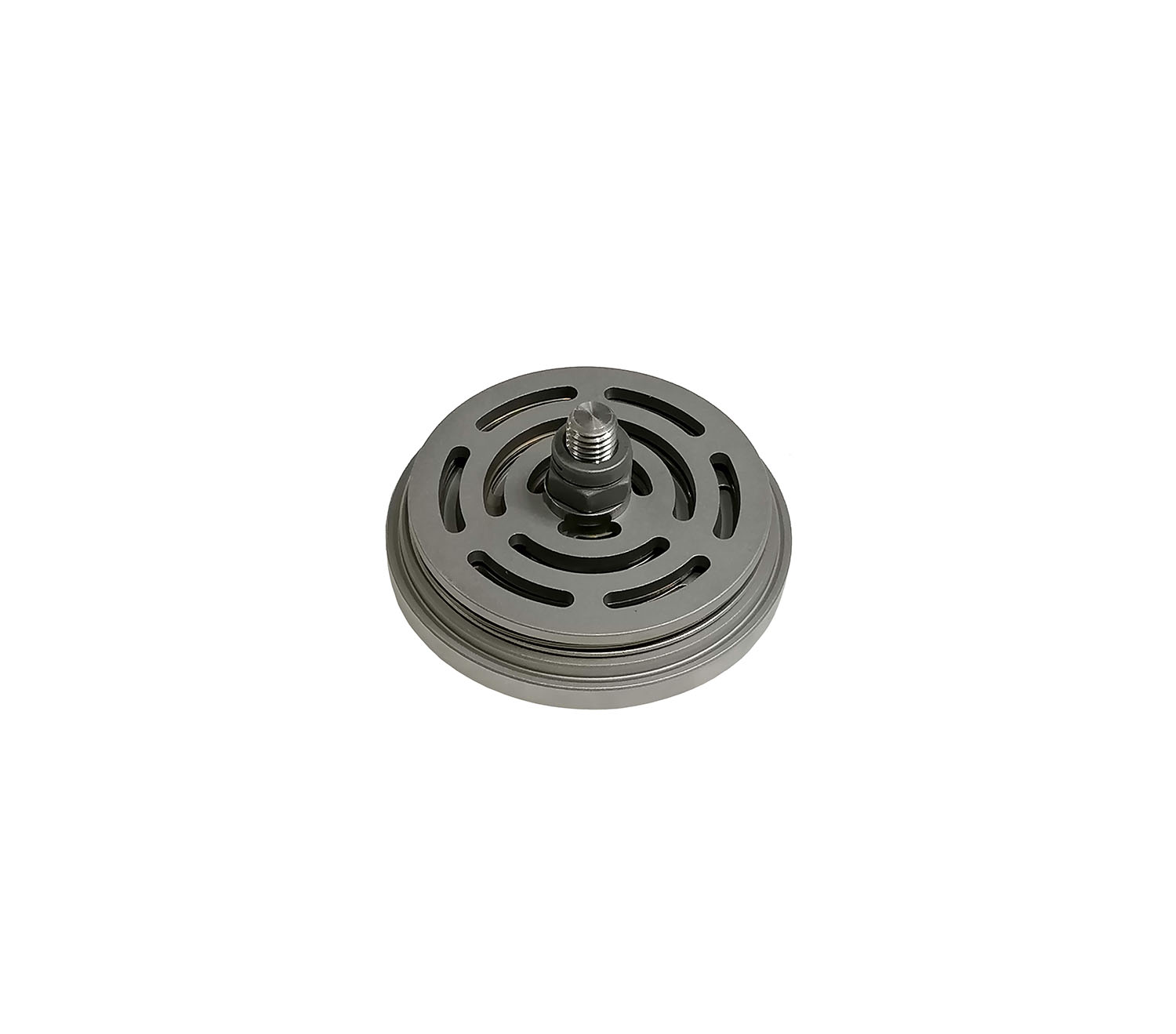

| 2 | 3945510 | VALVE 70RLX IMP |

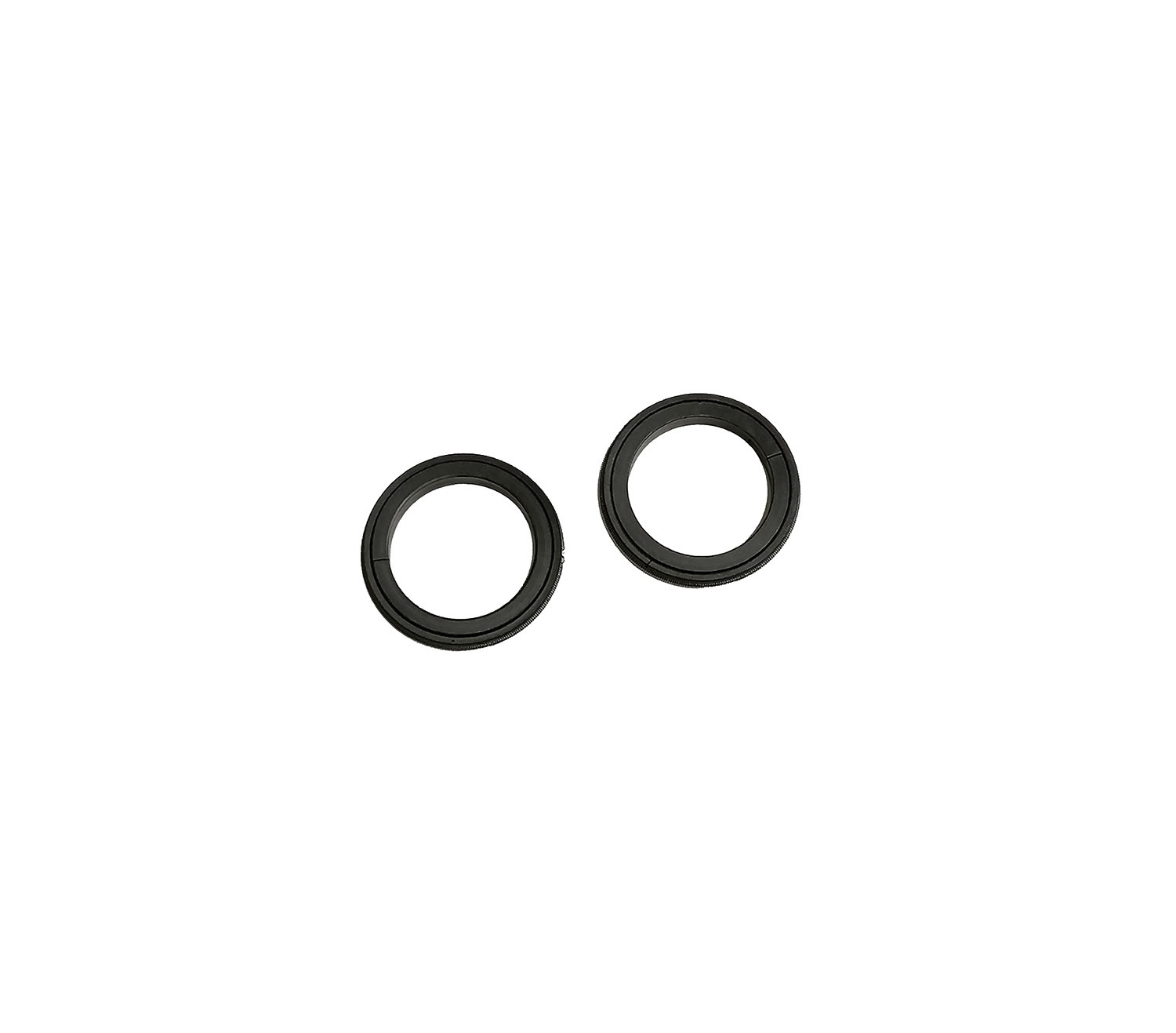

| 55 | 3037760 | RING |

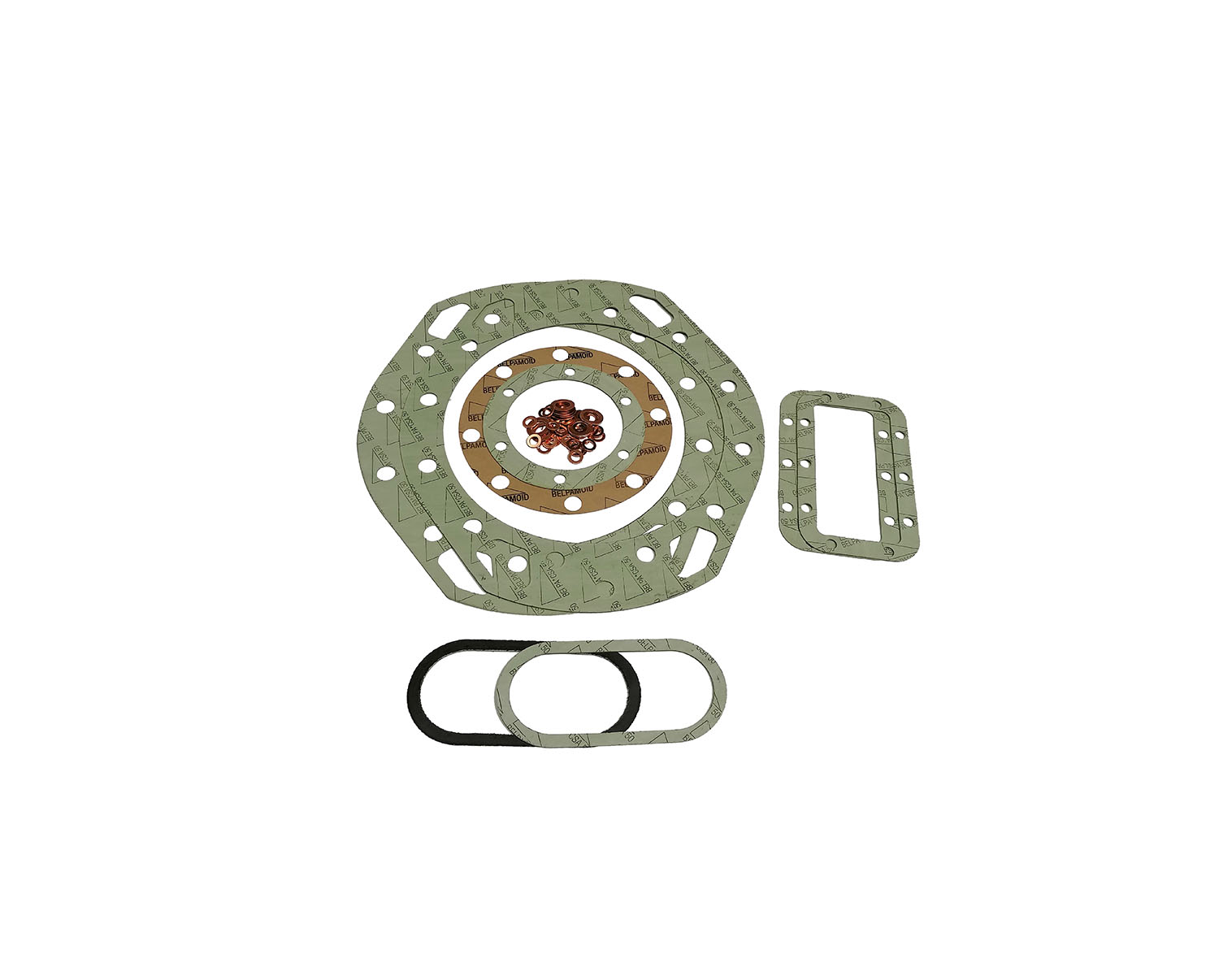

| 2 | 3539500 | JOINT |

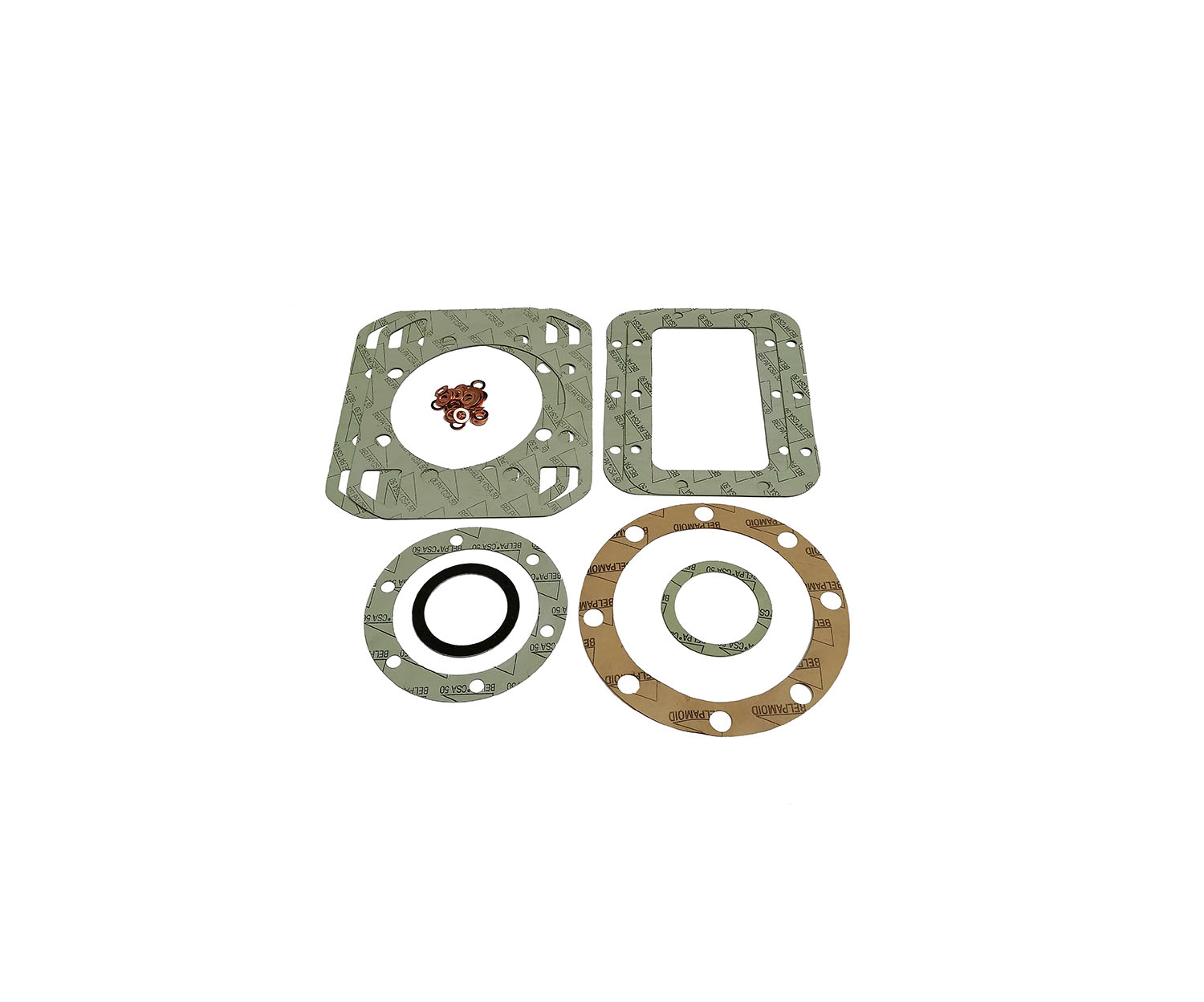

| 2 | 3539470 | JOINT |

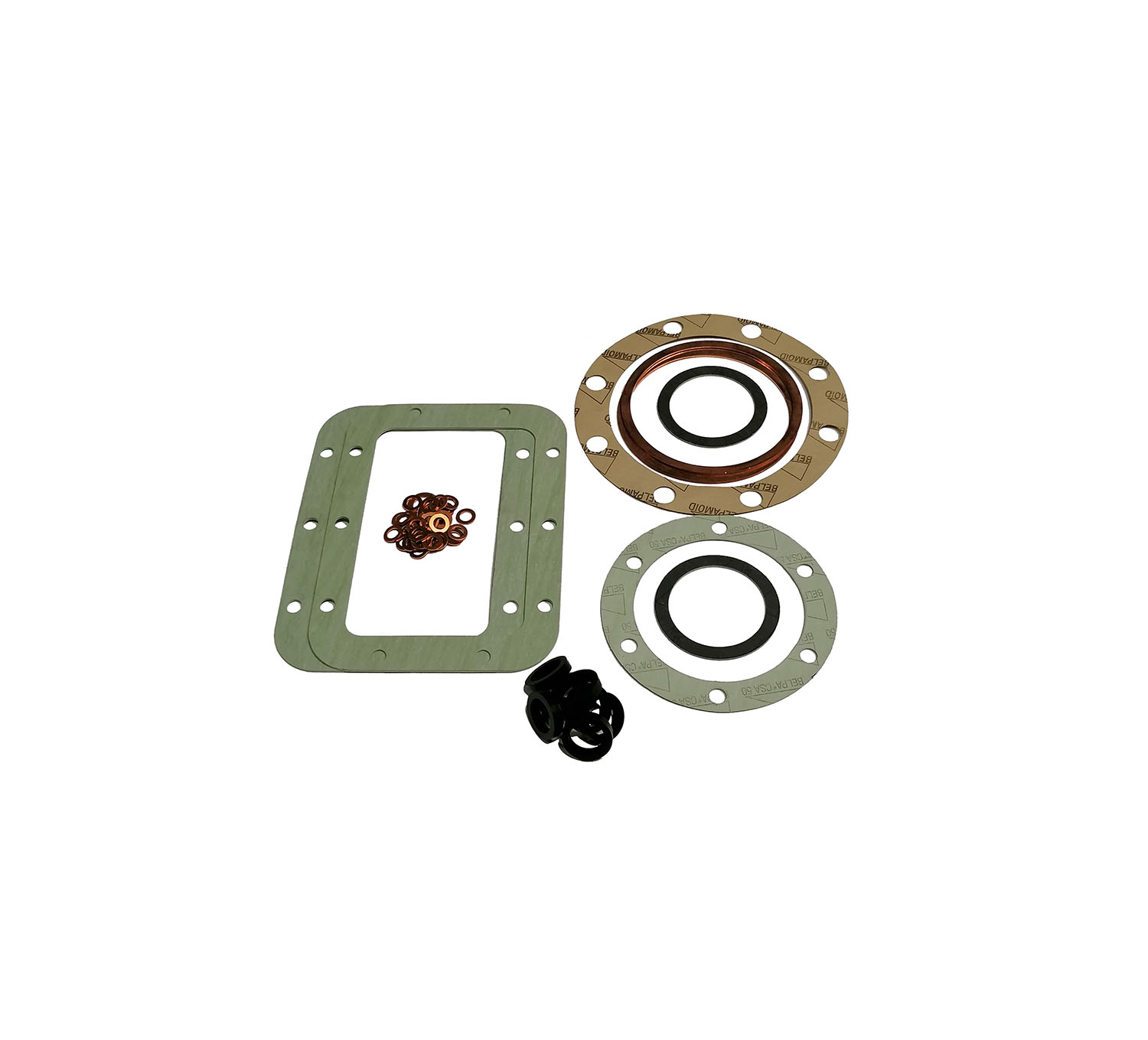

| 1 | 3539450 | JOINT |

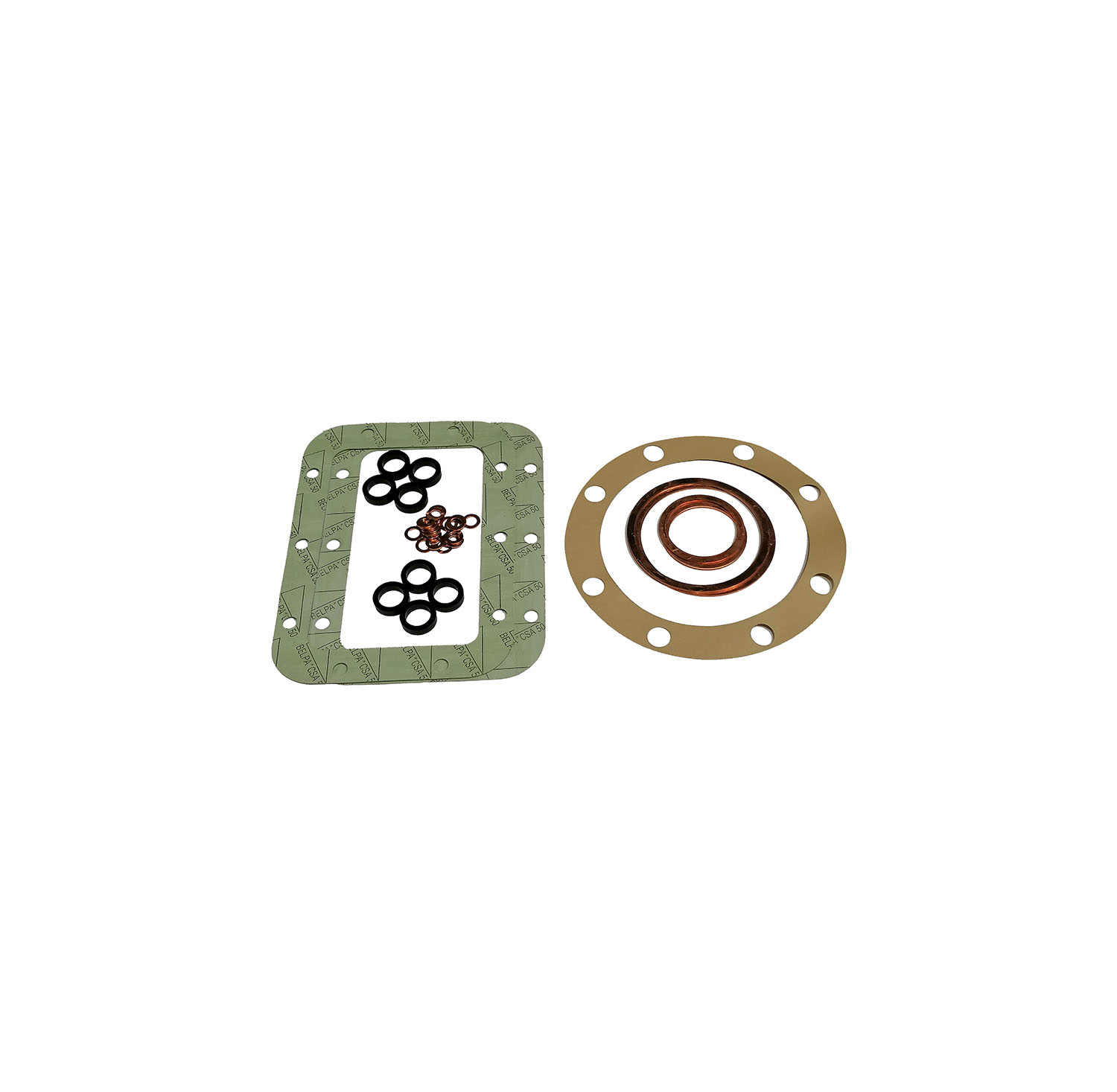

| 1 | 3540550 | JOINT |

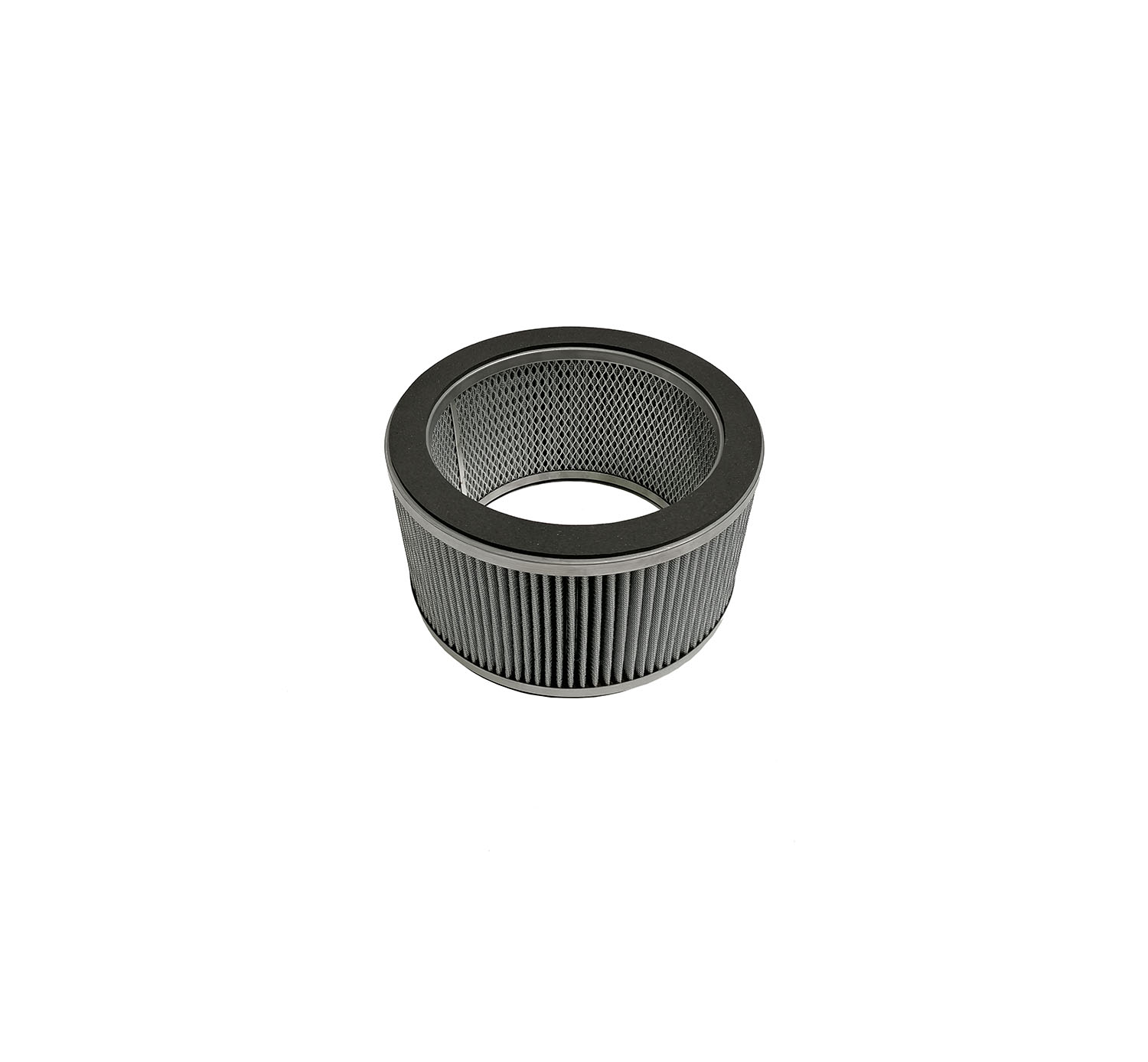

| 2 | 3312130 | CARTRIDGE FILTER |

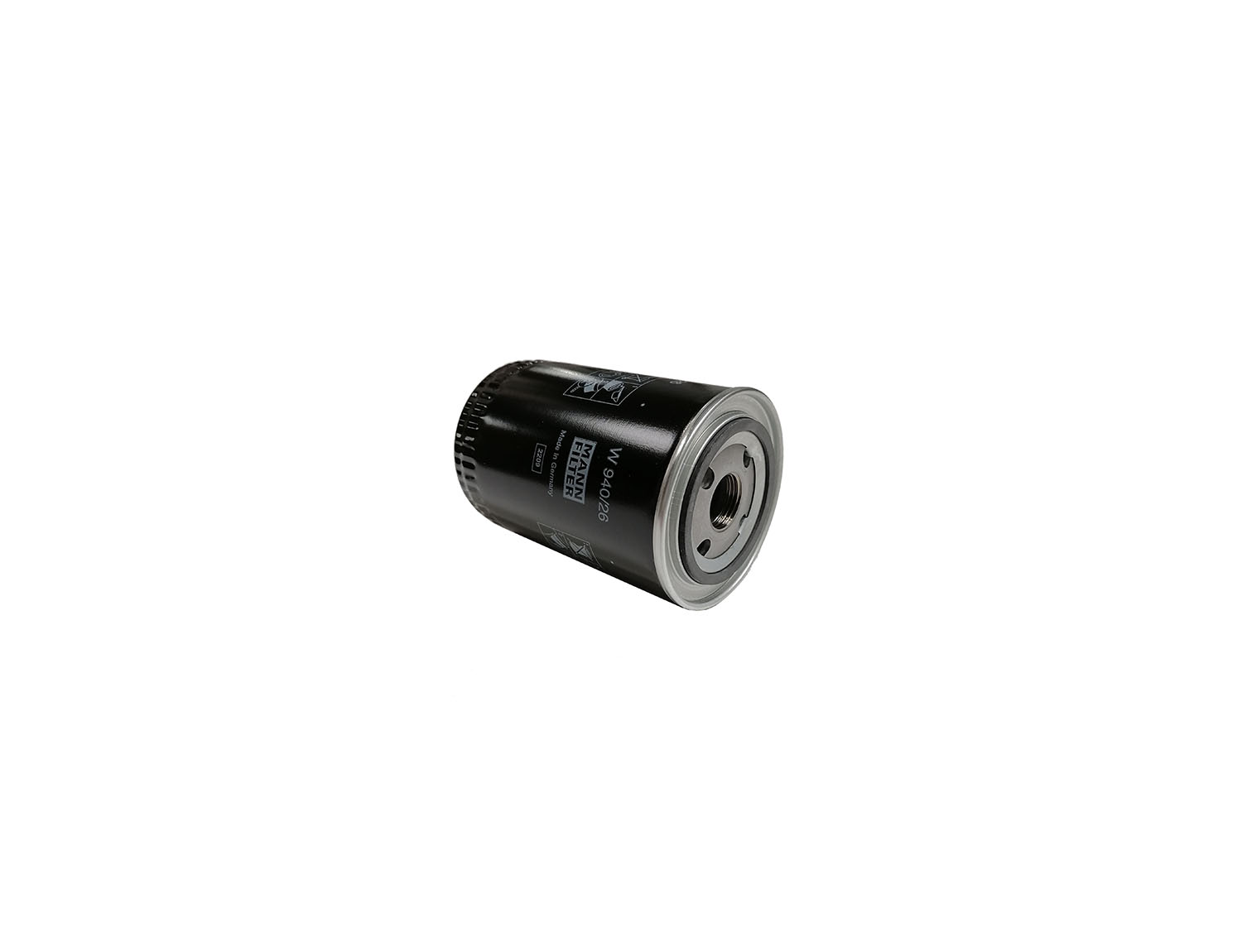

| 1 | 4372580 | CARTRIDGE FILTER |

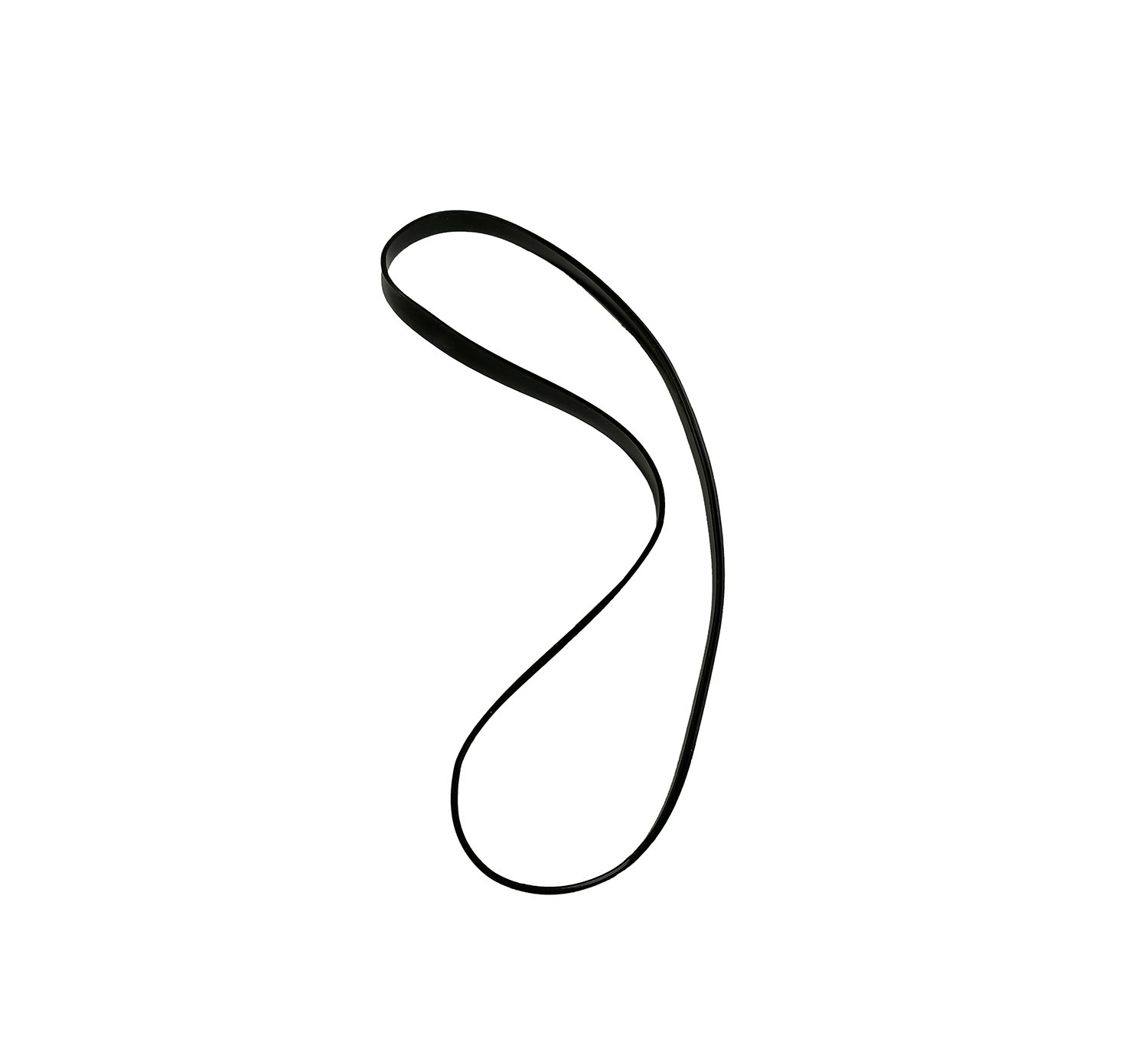

| 2 | 3574850 | JOINT |

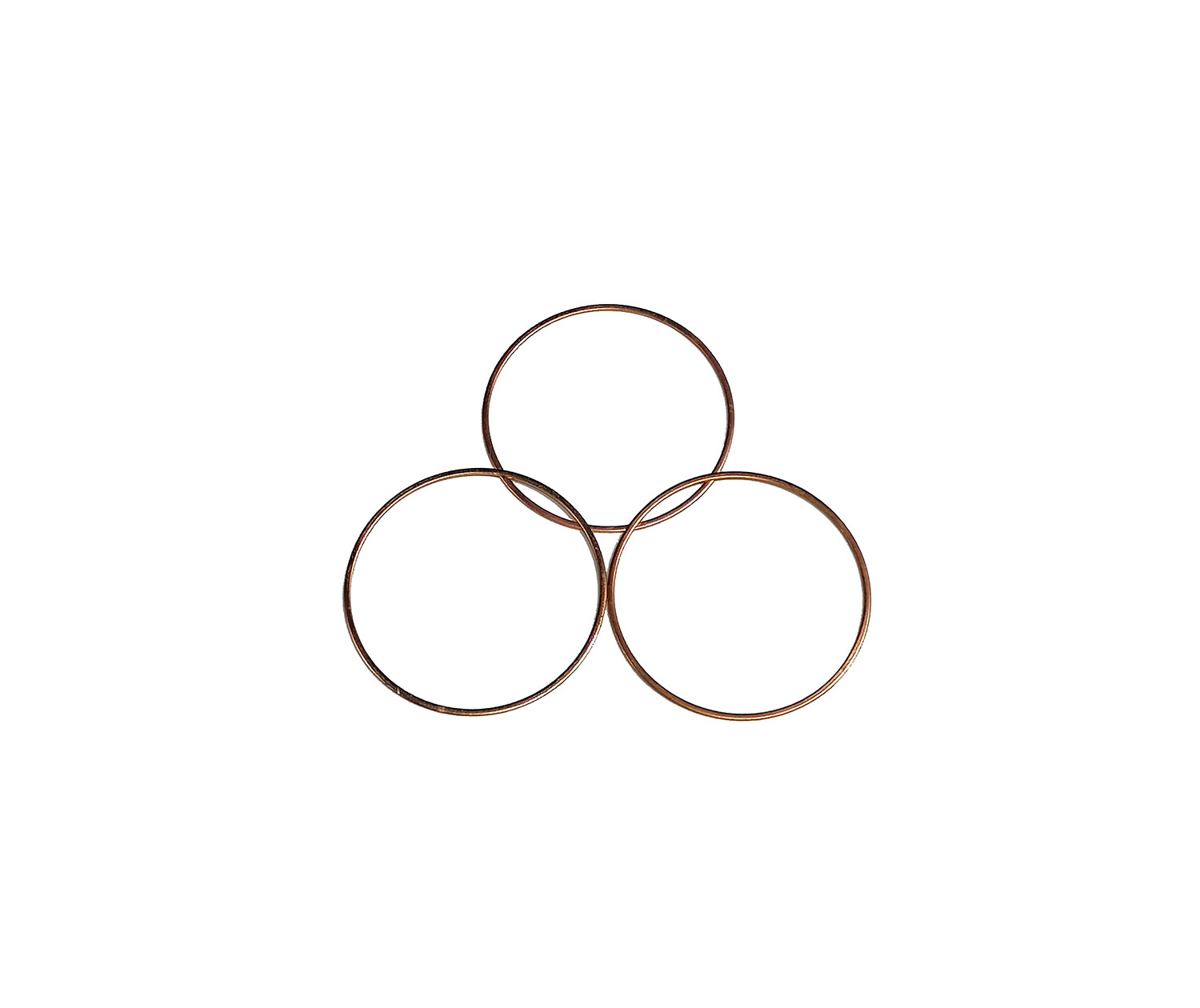

| 36 | 3573670 | JOINT |

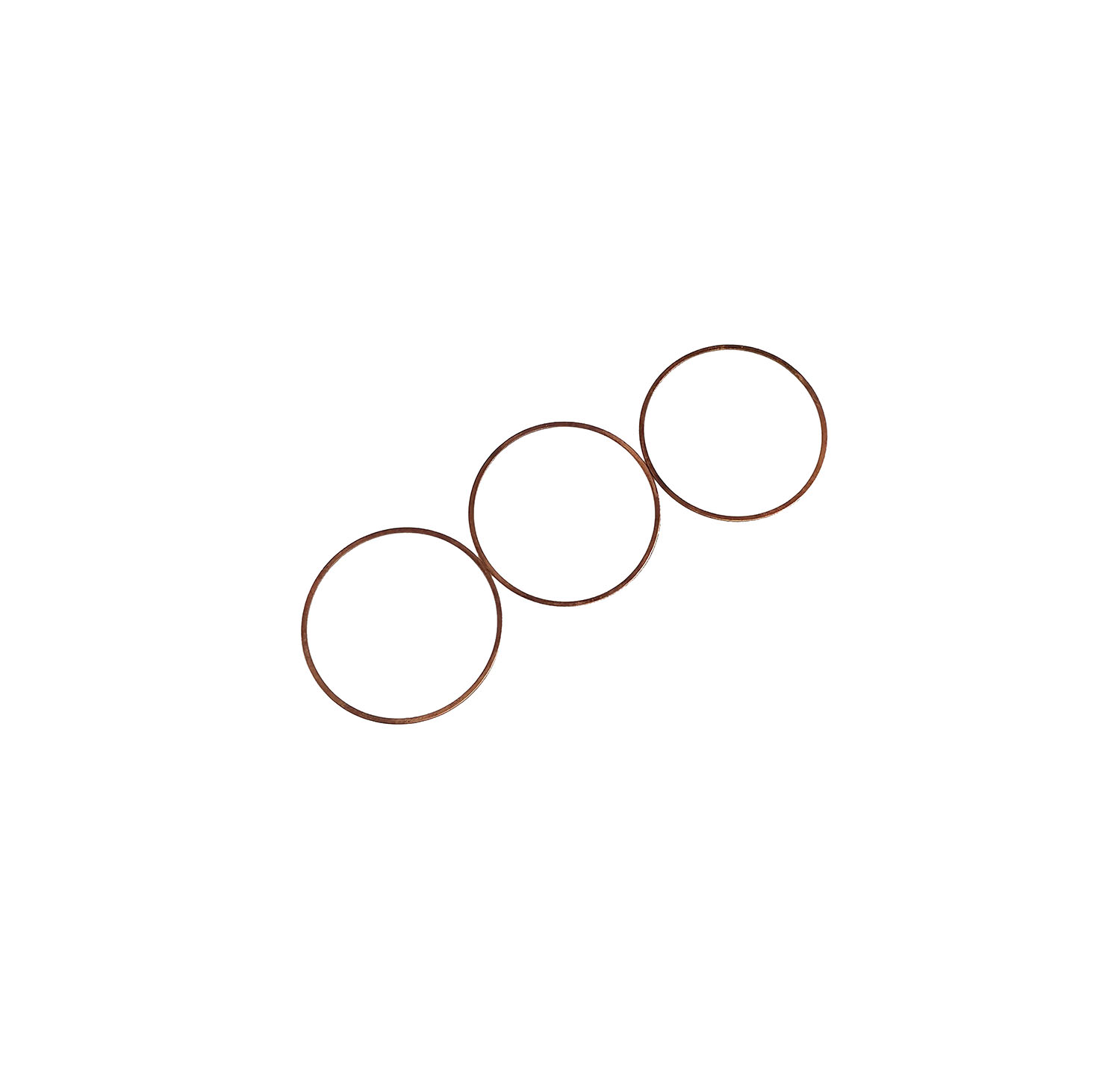

| 36 | 3573690 | RING |

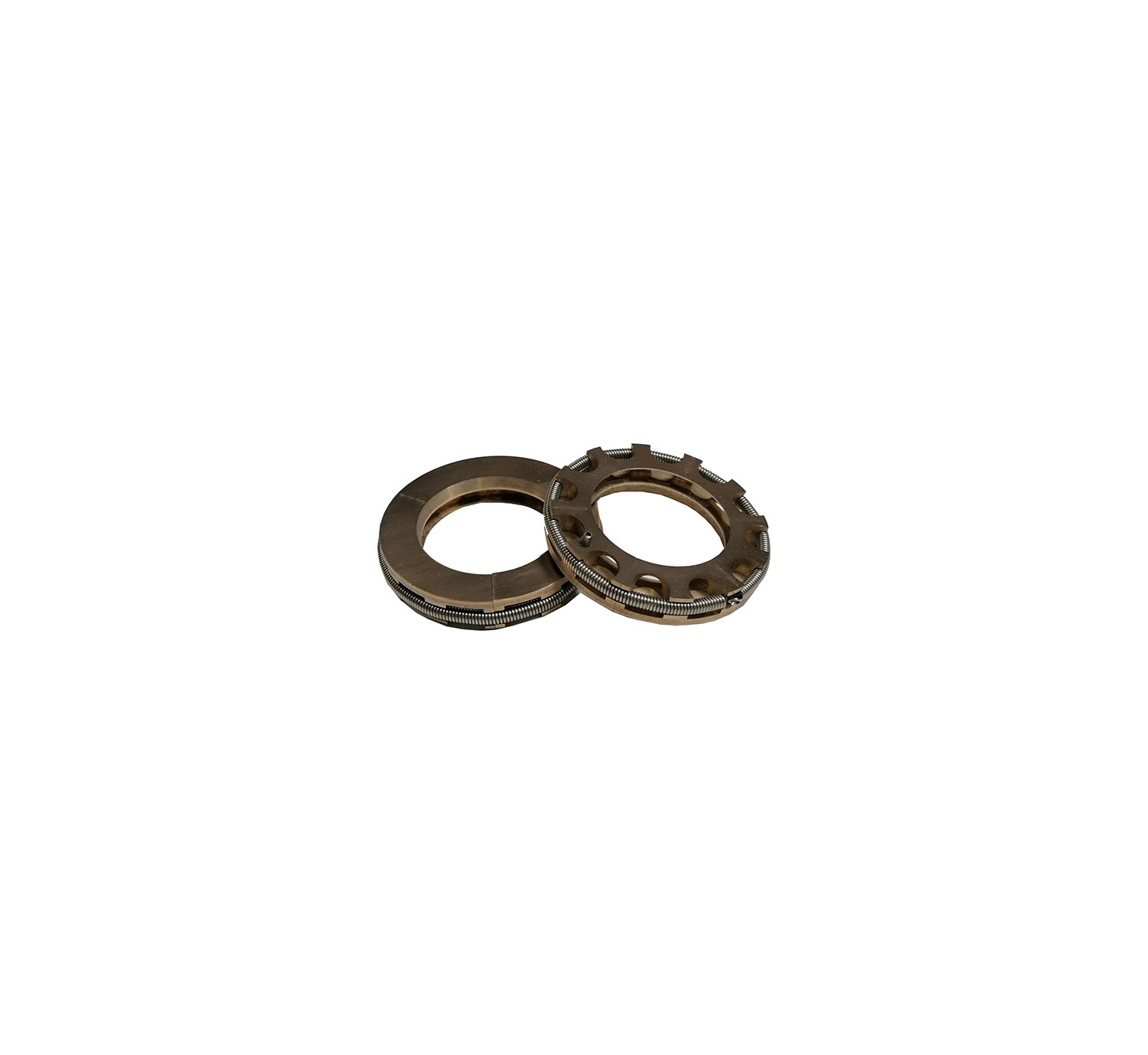

| 6 | 3037560 | RING |

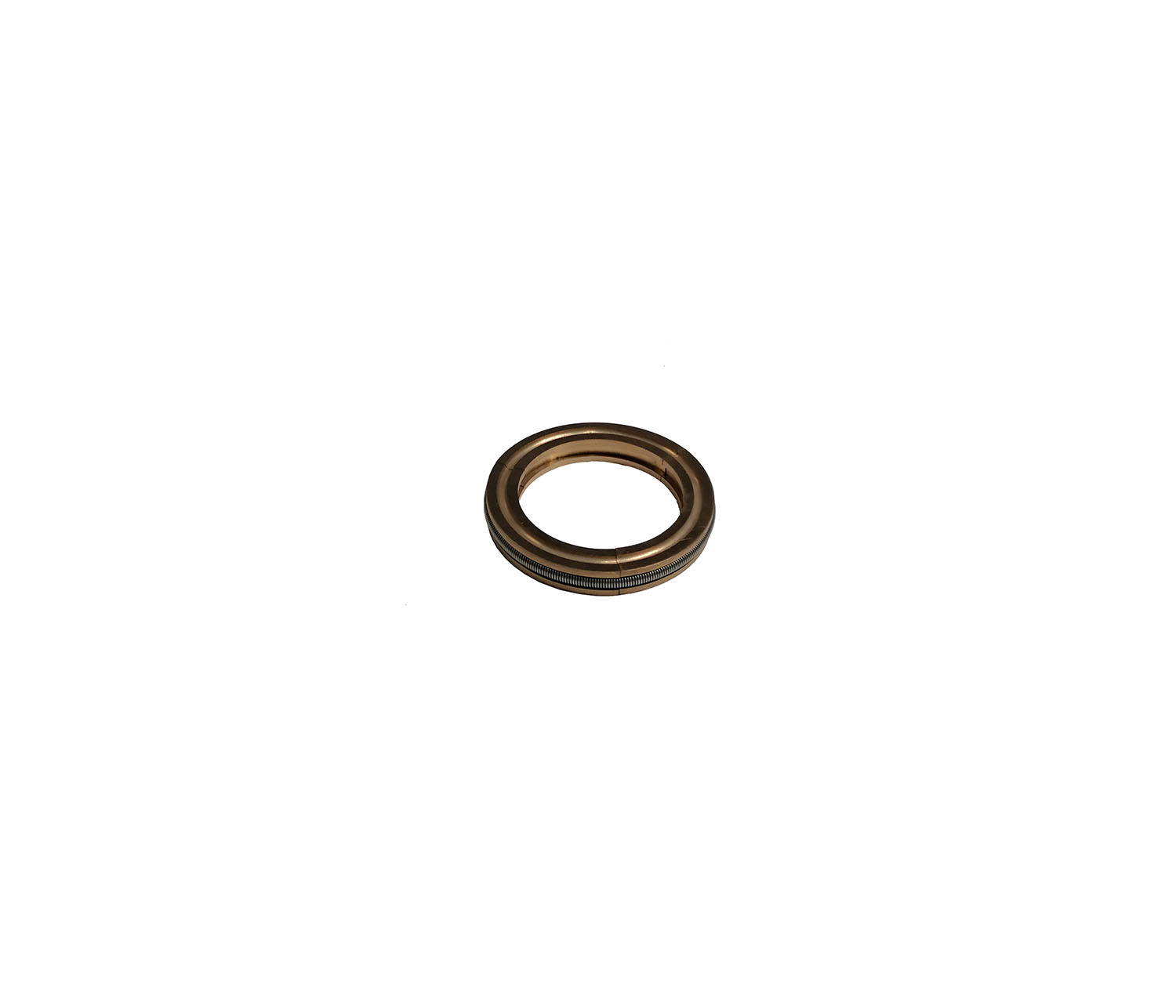

| 3 | 3037570 | RING |

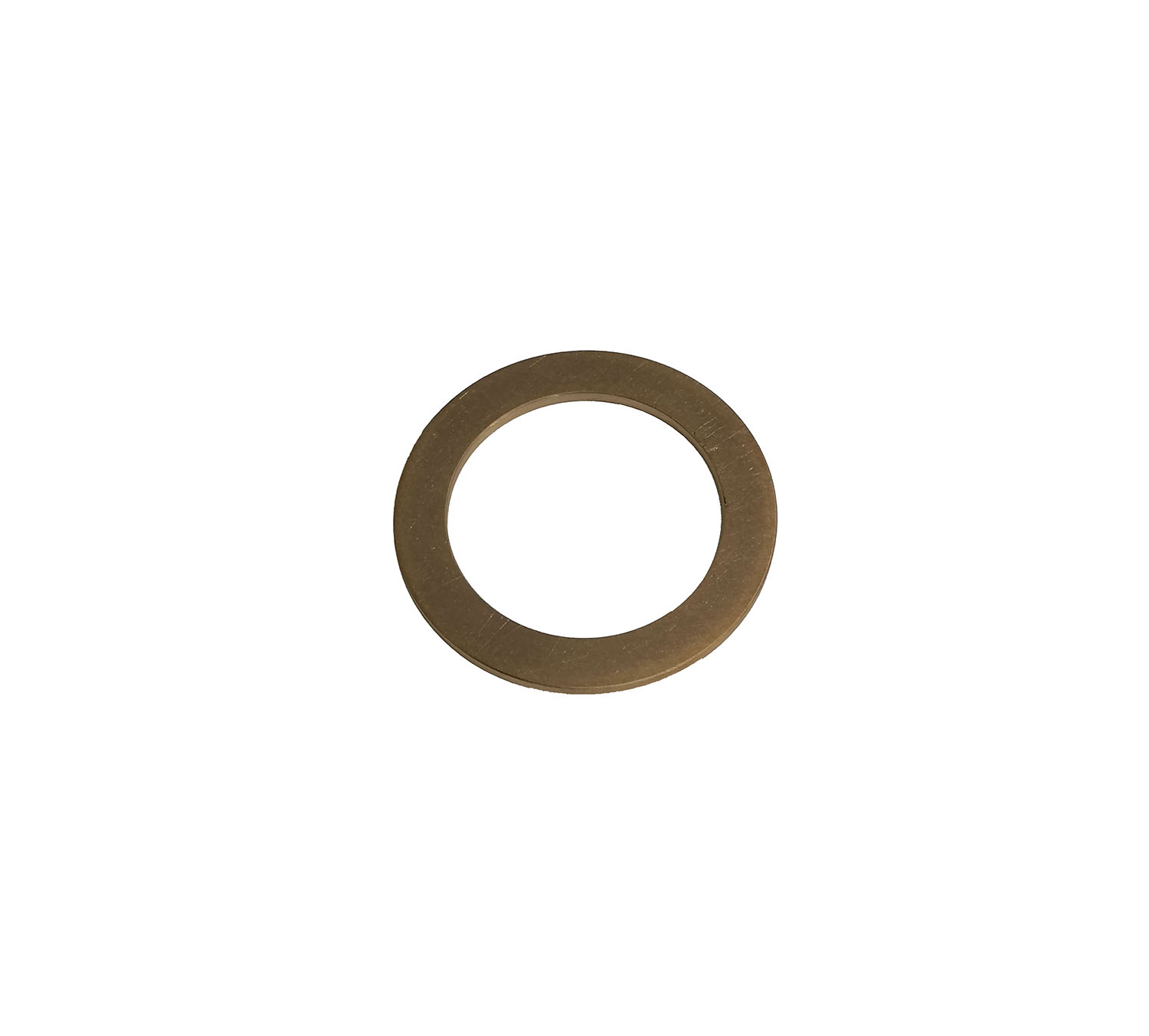

| 7 | 3037500 | RING |

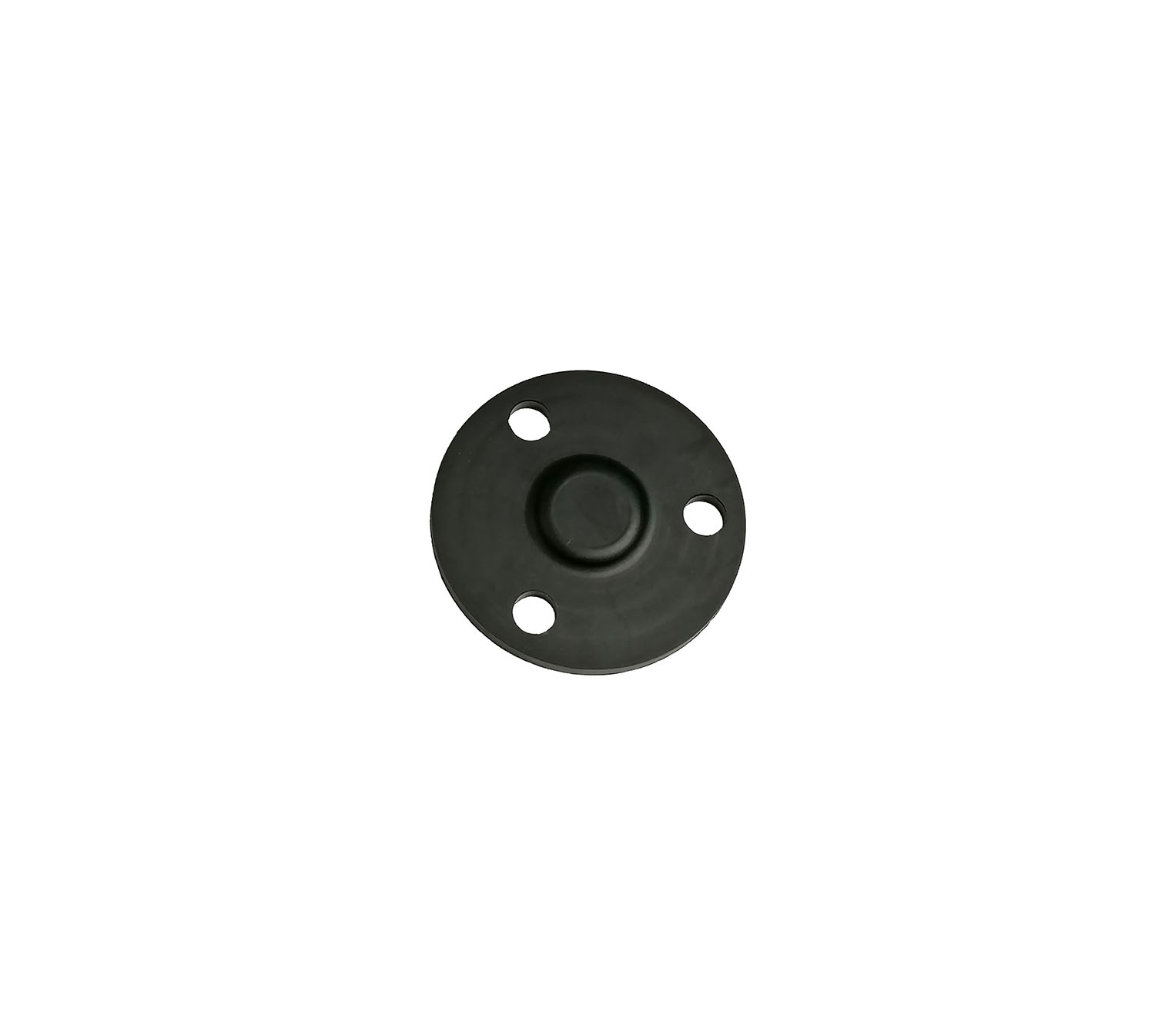

| 8 | 3637060 | MEMBRANE |

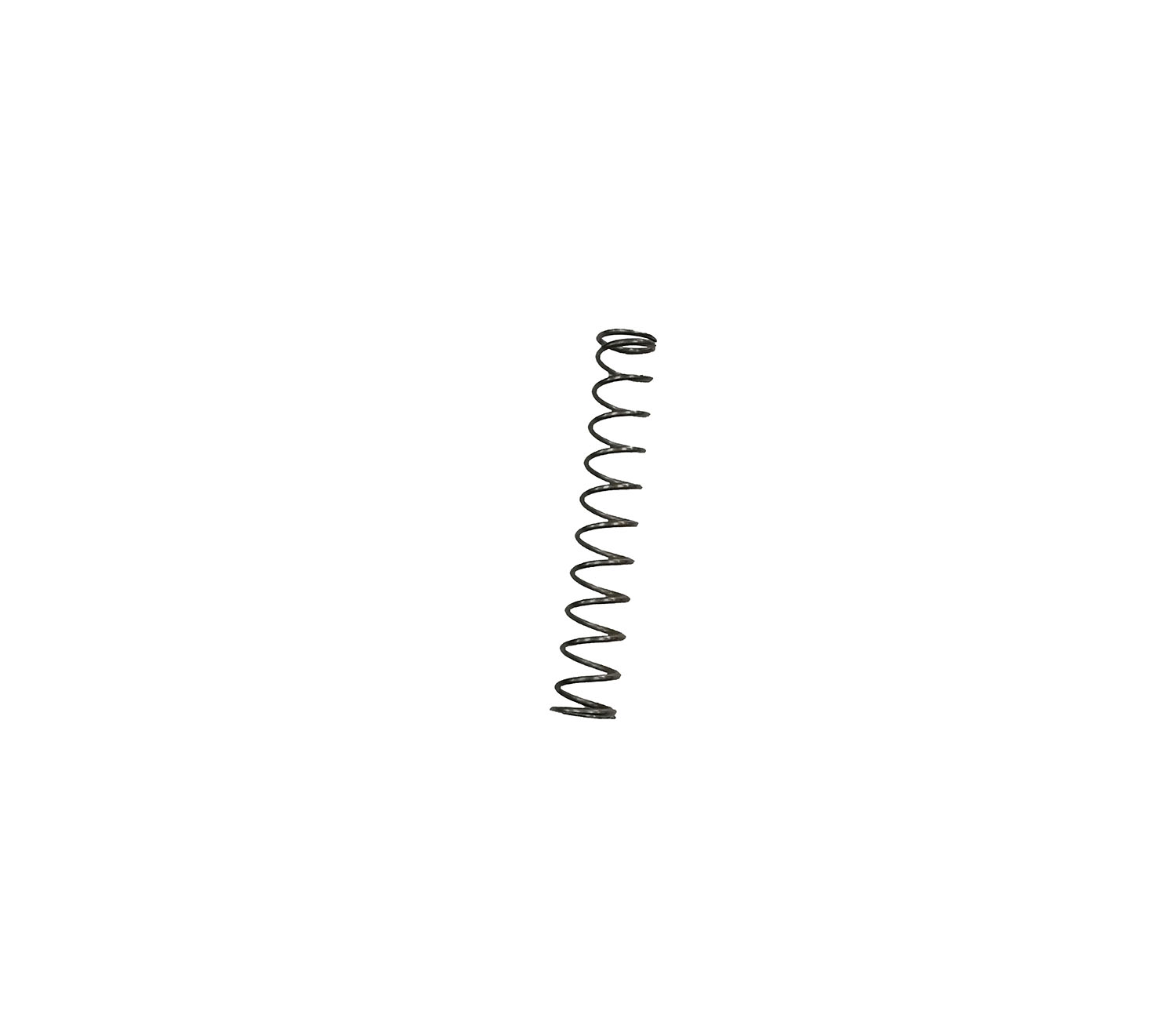

| 14 | 3649030 | SPRING |

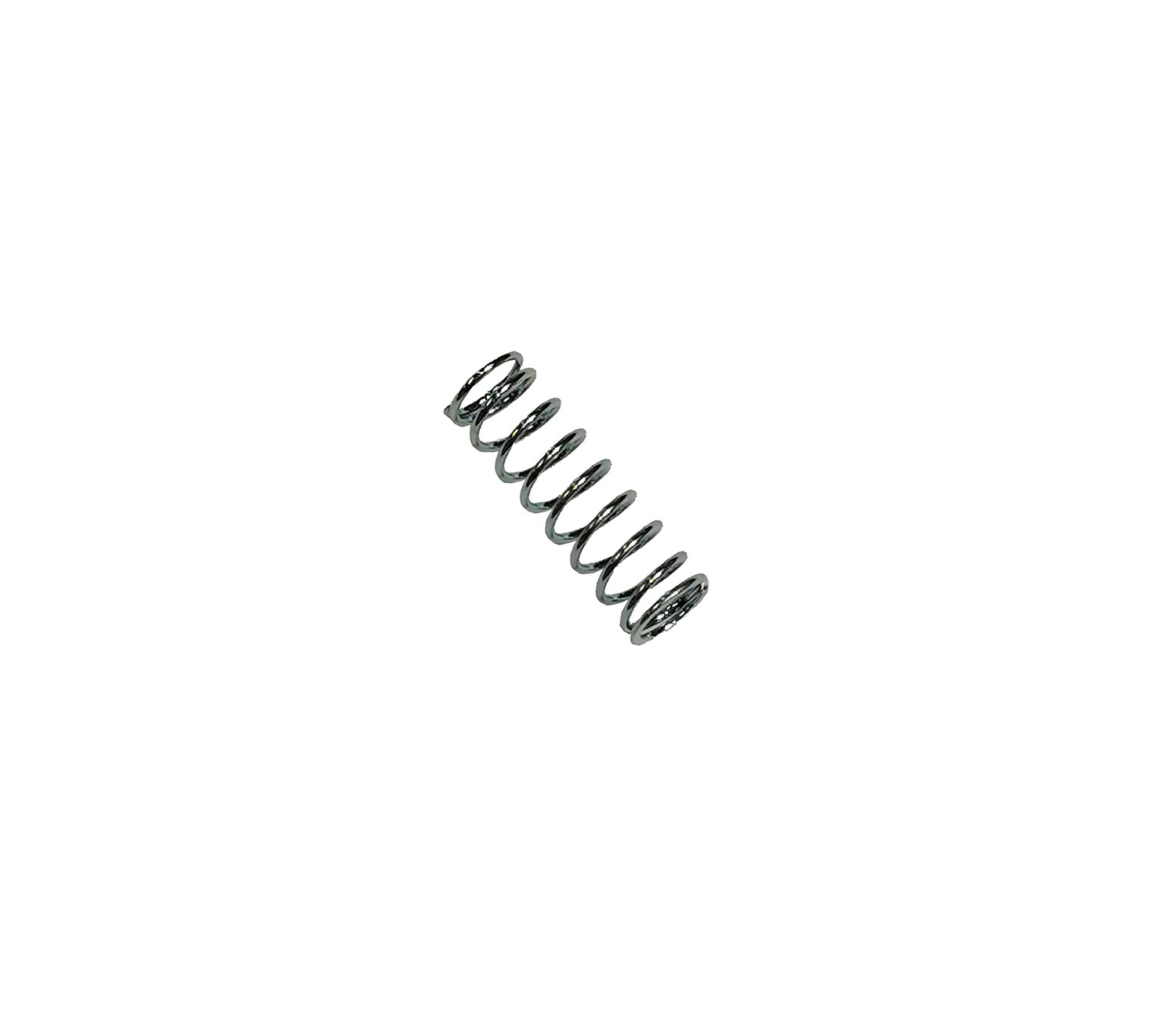

| 2 | 3648210 | SPRING |

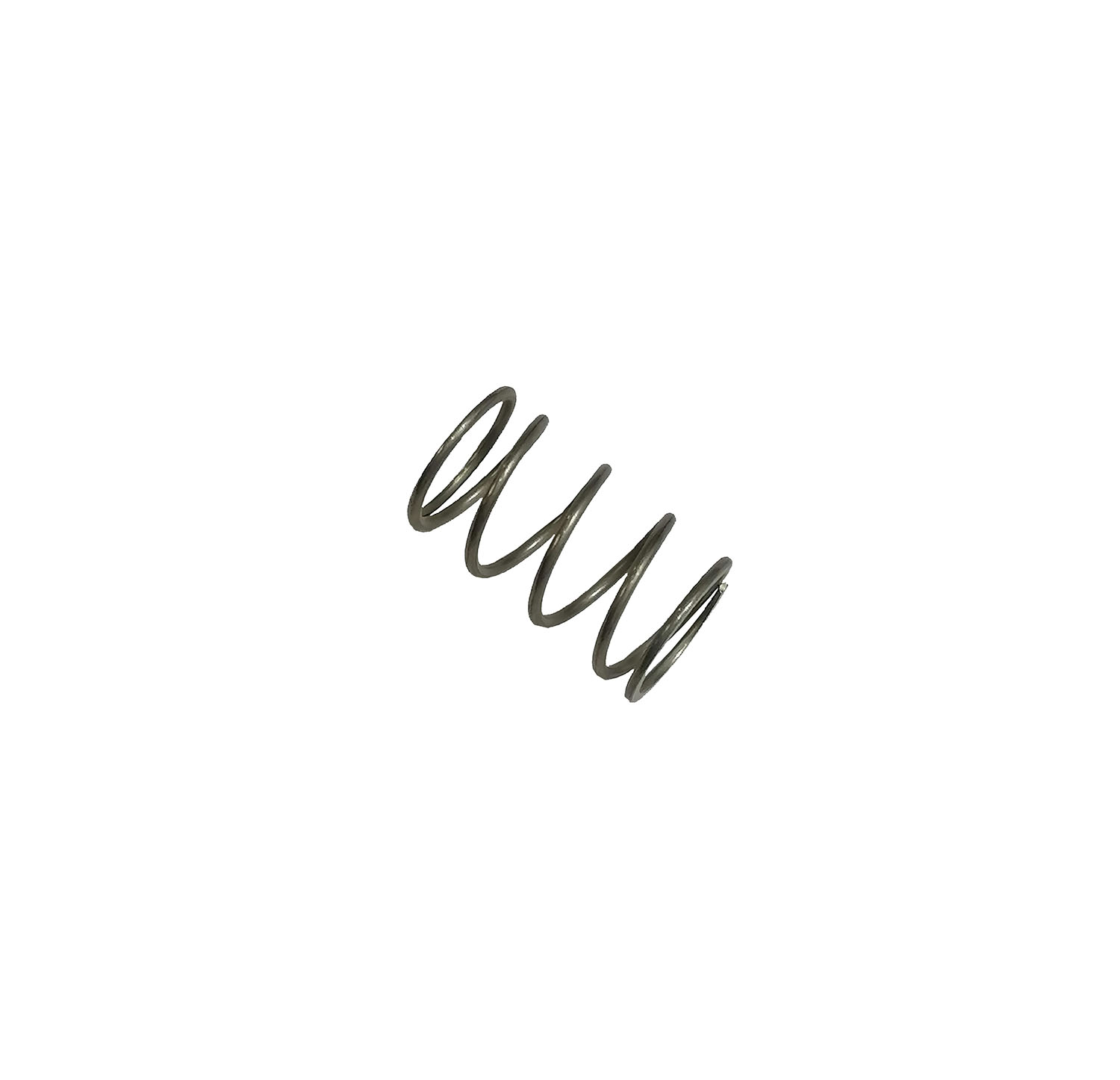

| 4 | 3649480 | SPRING |

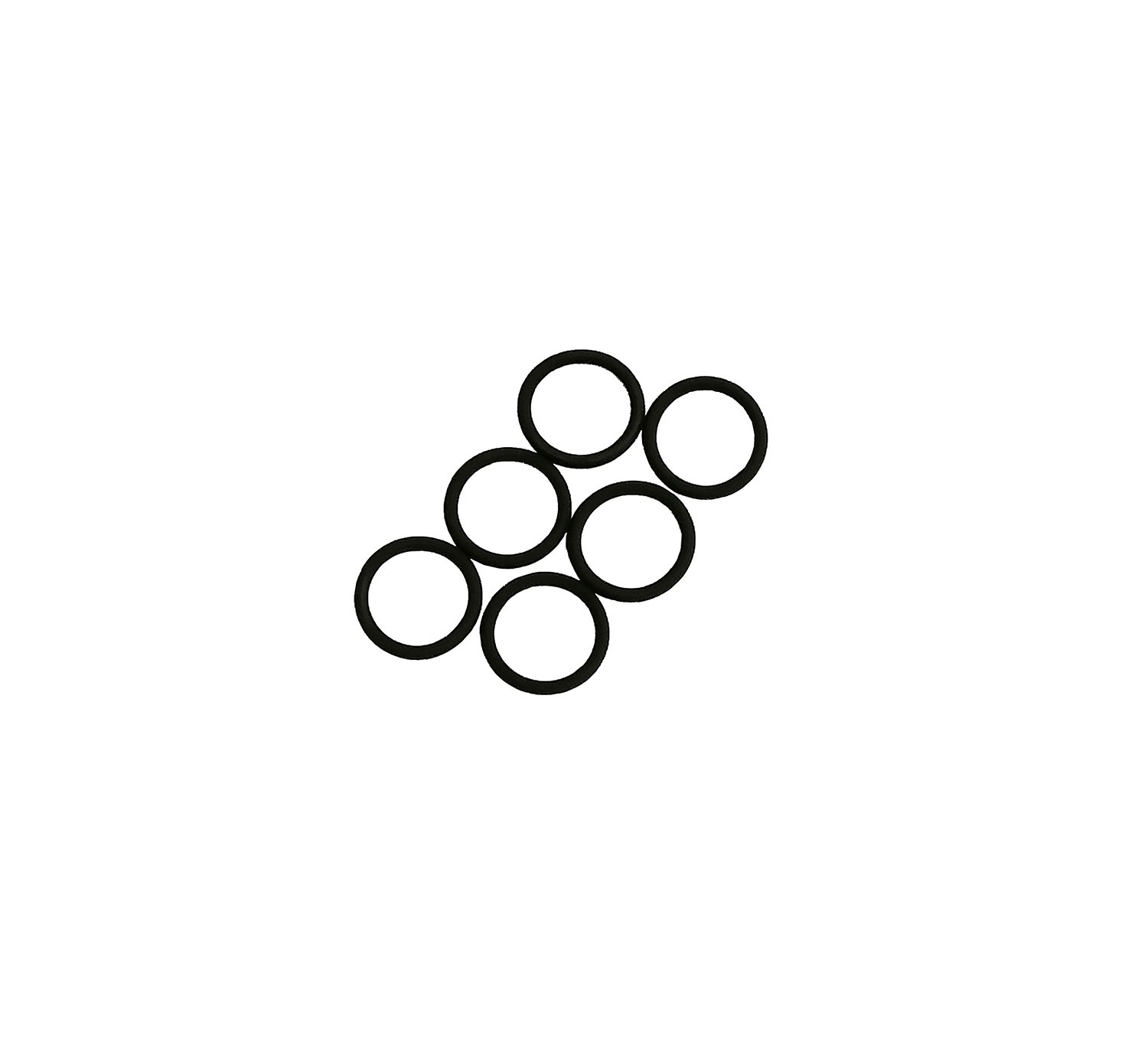

| 4 | 4021180 | O-RING |
| 4 | 4021210 | O-RING |

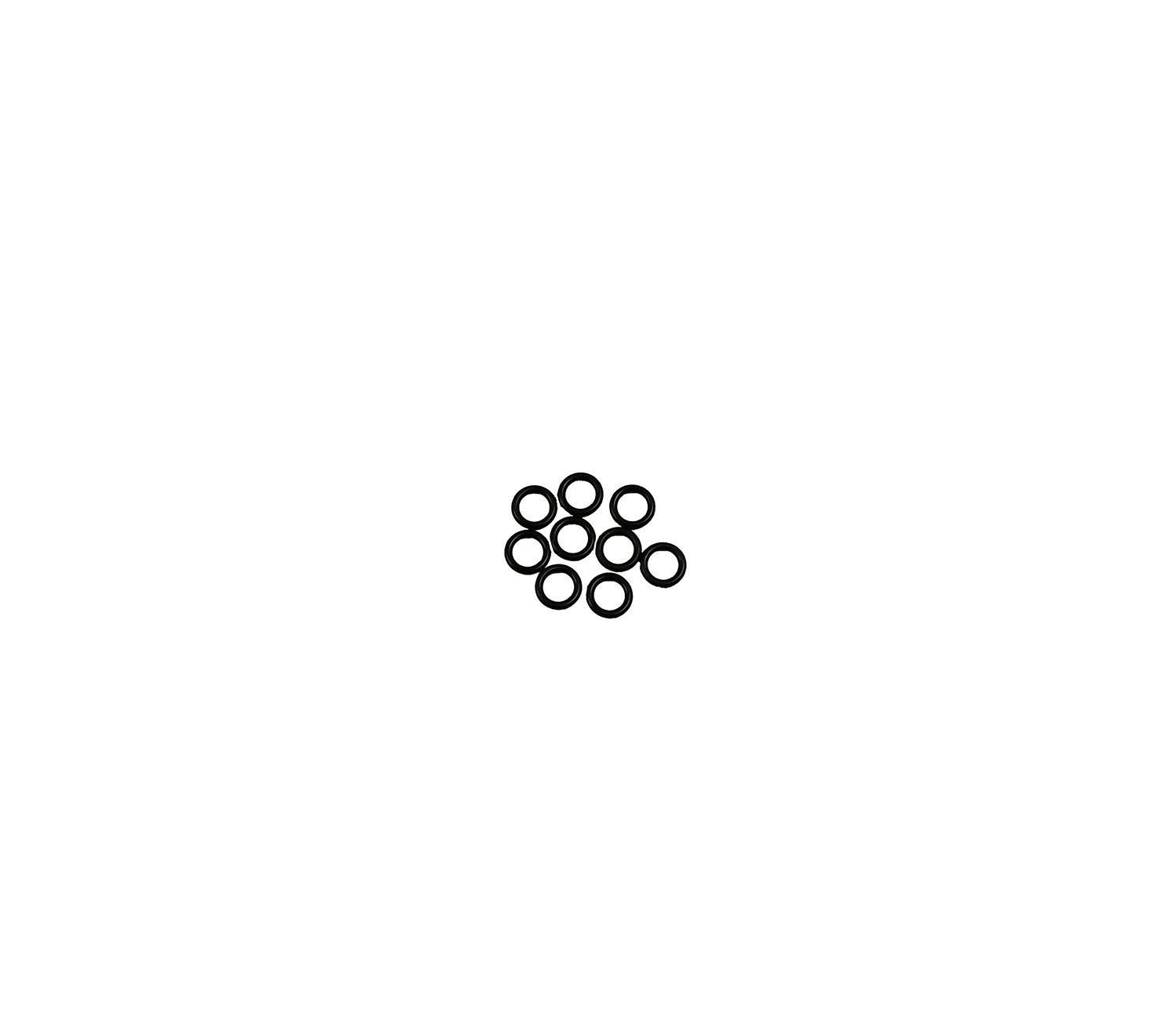

| 8 | 4021080 | O-RING |

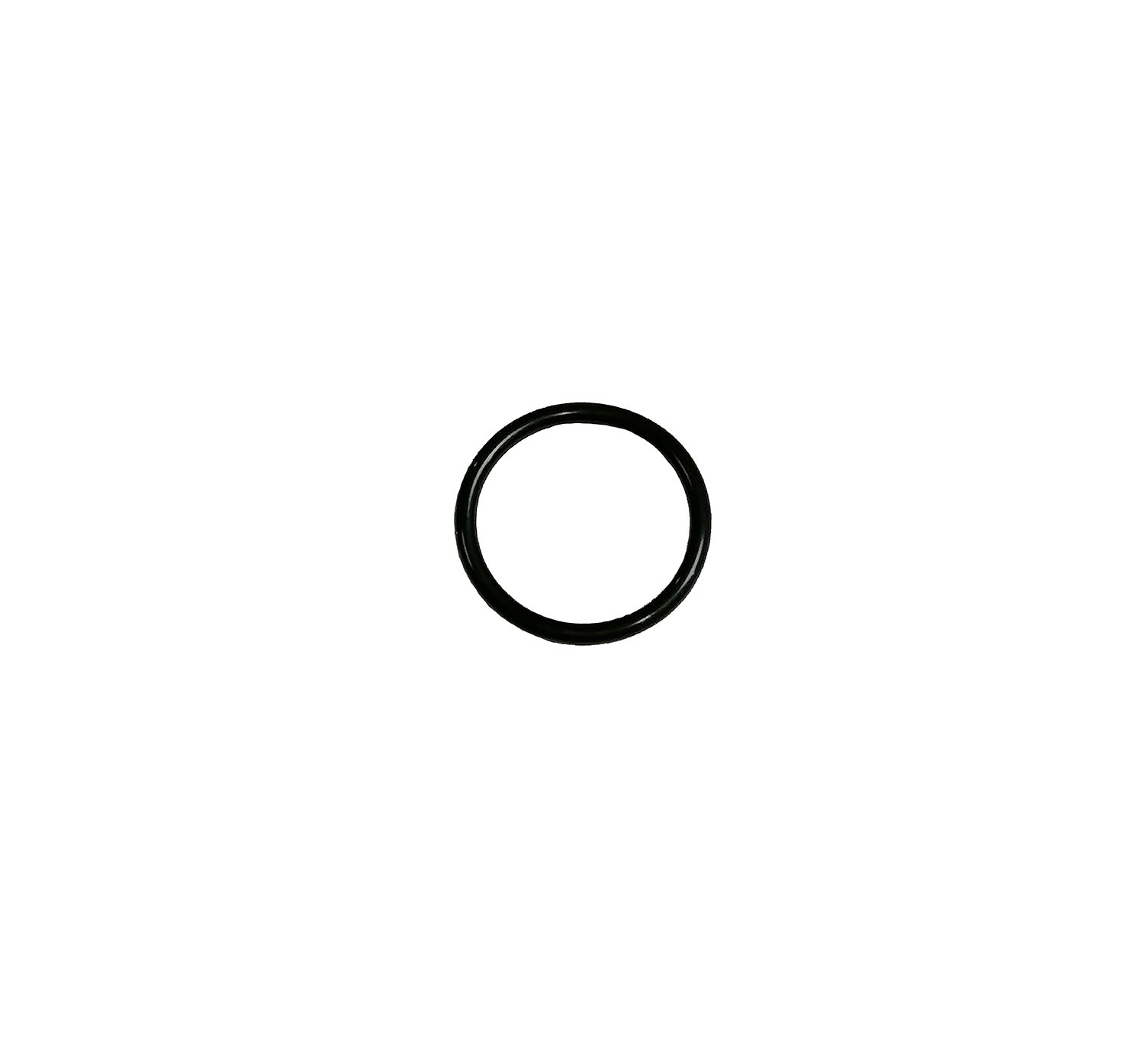

| 4 | 4021240 | O-RING |

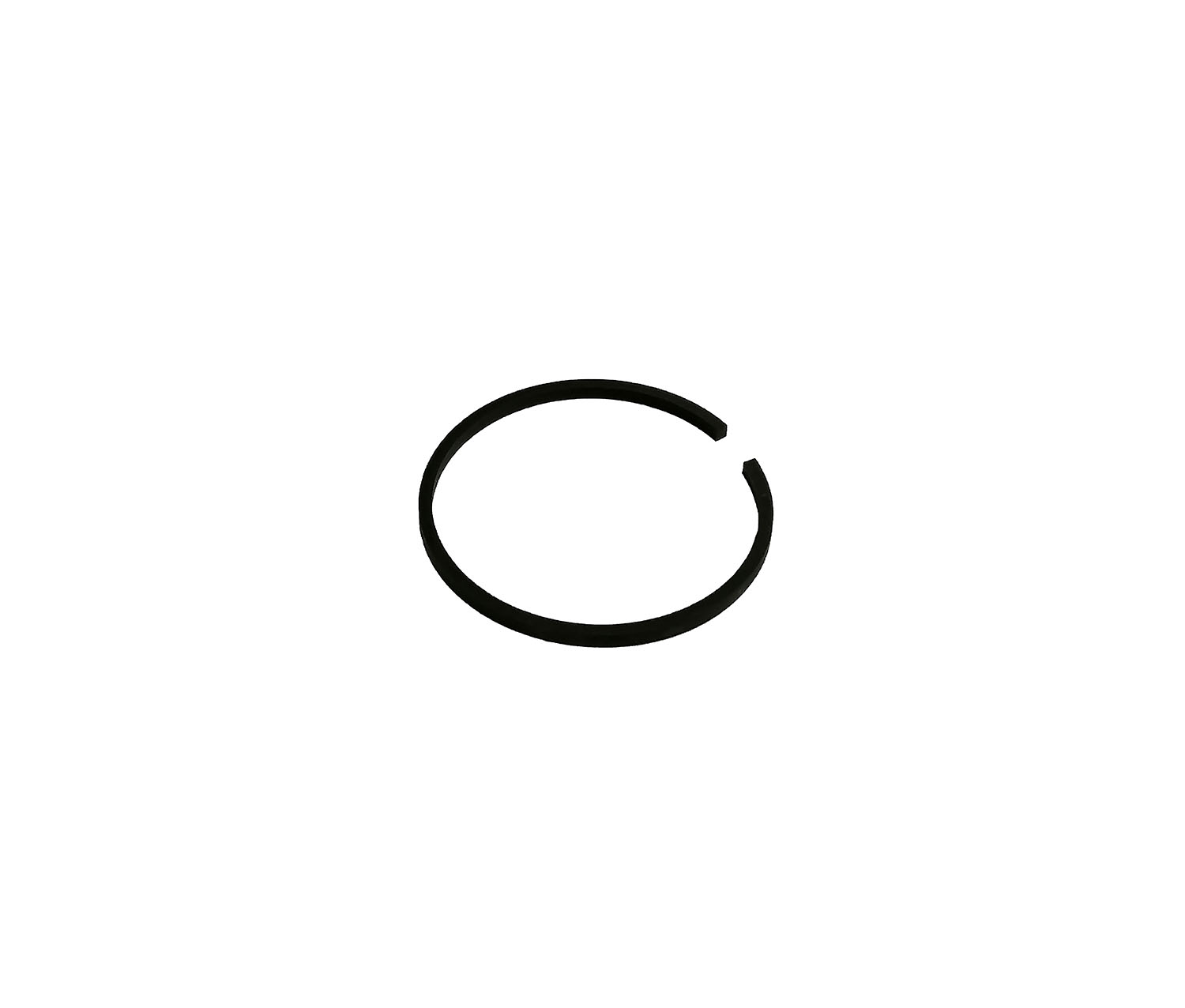

| 4 | 3828050 | RING |

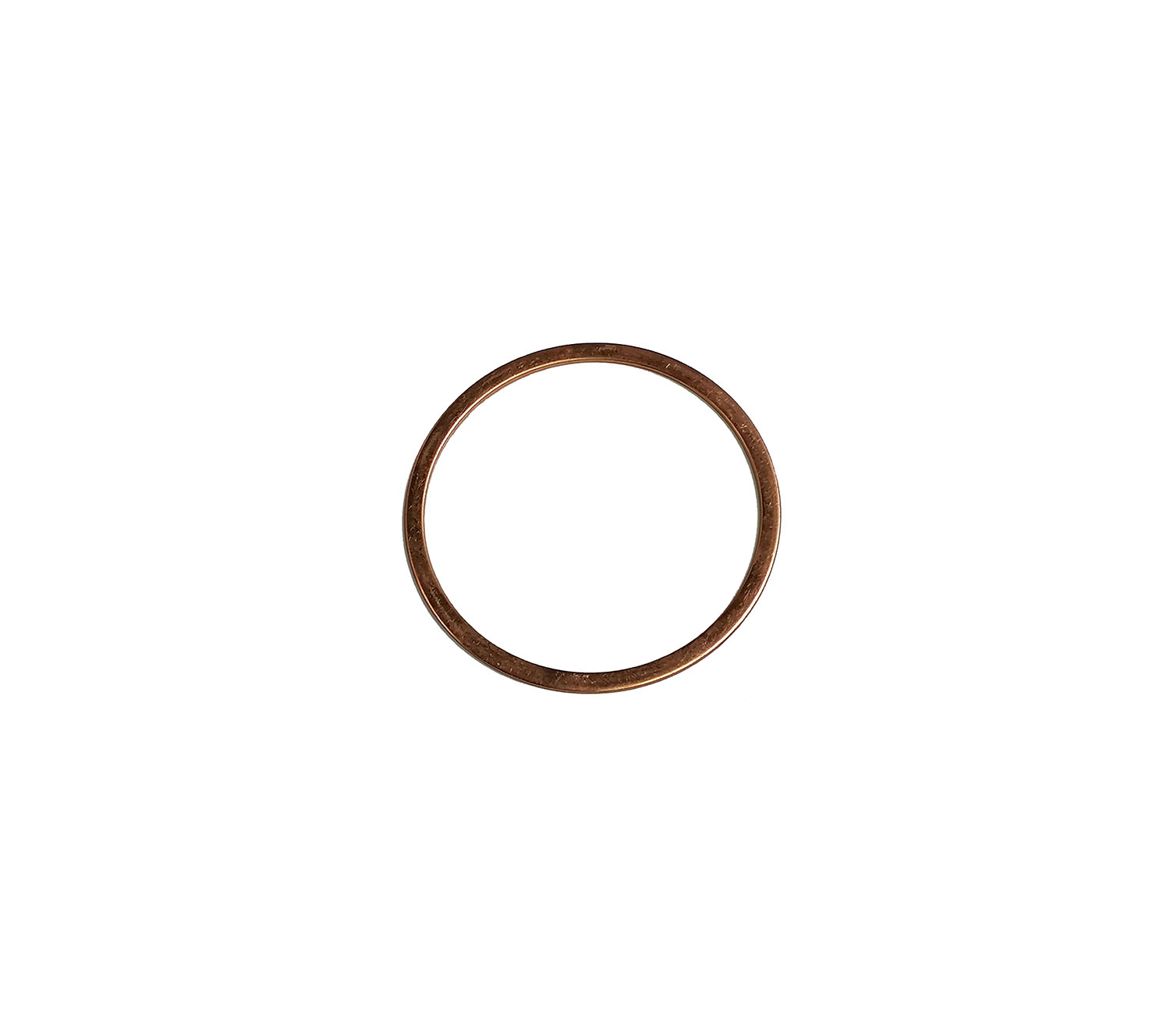

| 4 | 3573800 | RING |

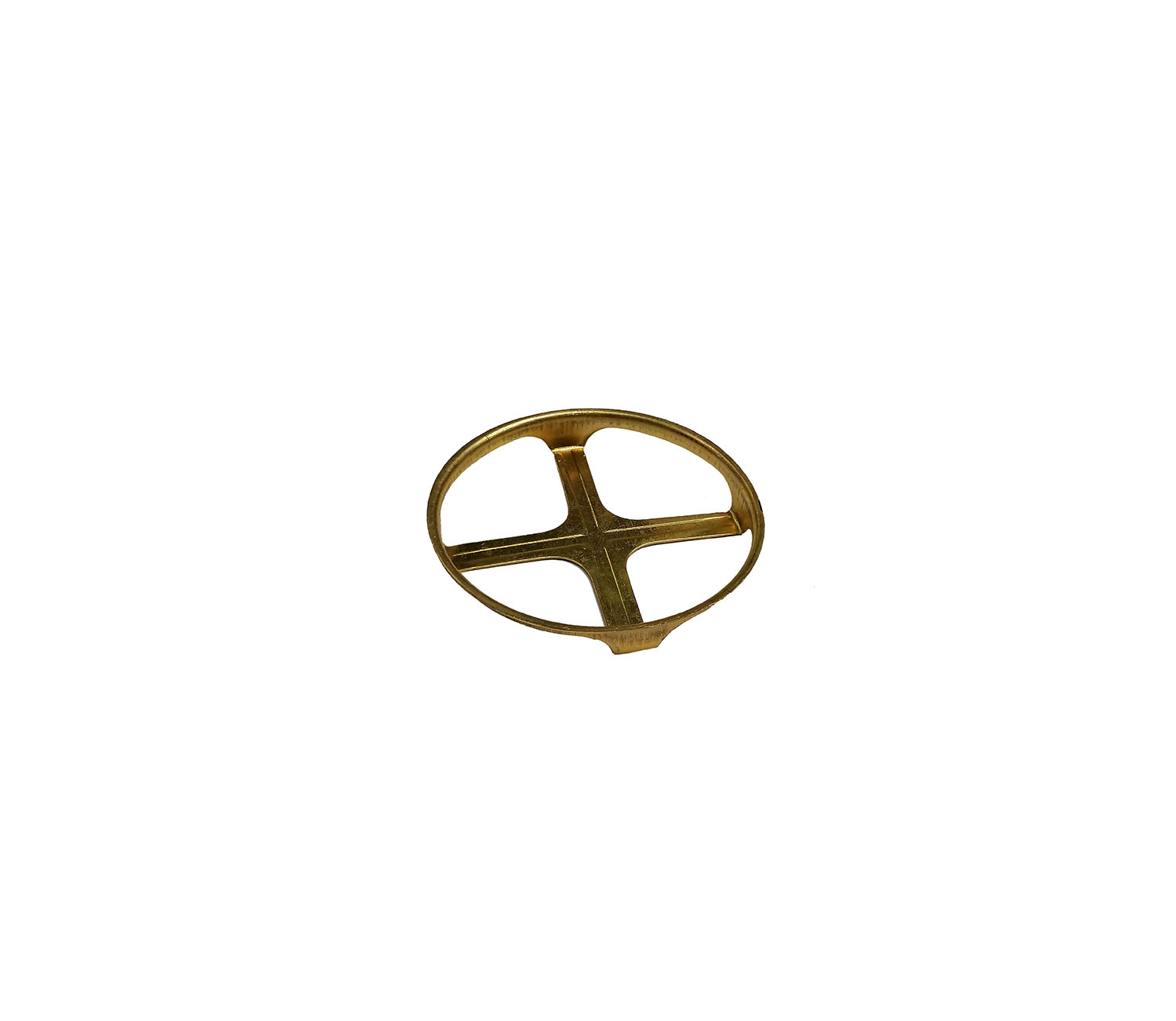

| 4 | 3798050 | PROTECTION GRILL |
