8,000 hour maintenance kit for ABC 4HA-4-TER-LT air piston compressor
List of parts:
| Quantity | Code | Description |
|---|---|---|

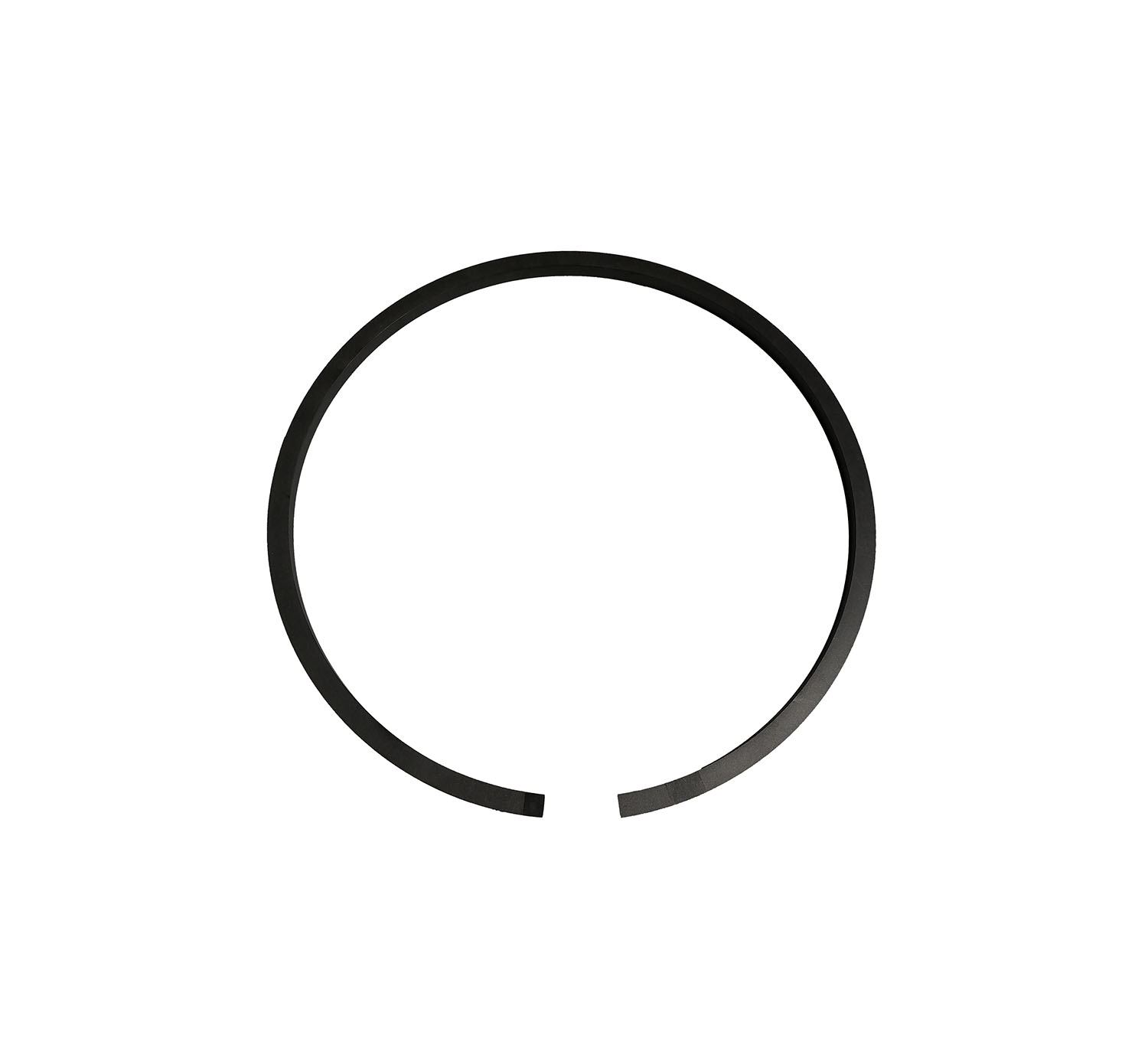

| 2 | 3831810 | PISTON RING DIAM. 310 MM |

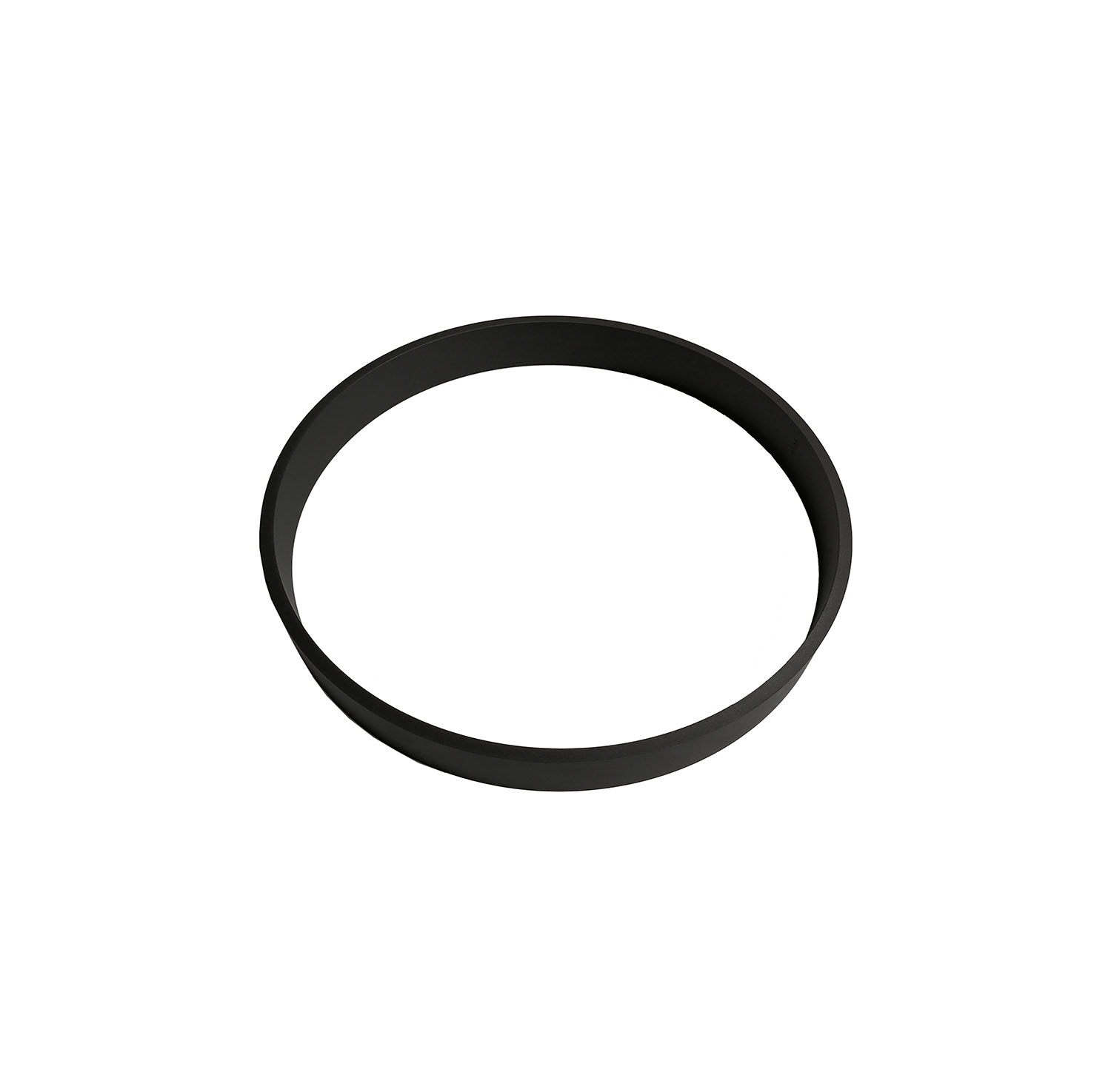

| 2 | 3831820 | RIDER RING DIAM. 310MM |

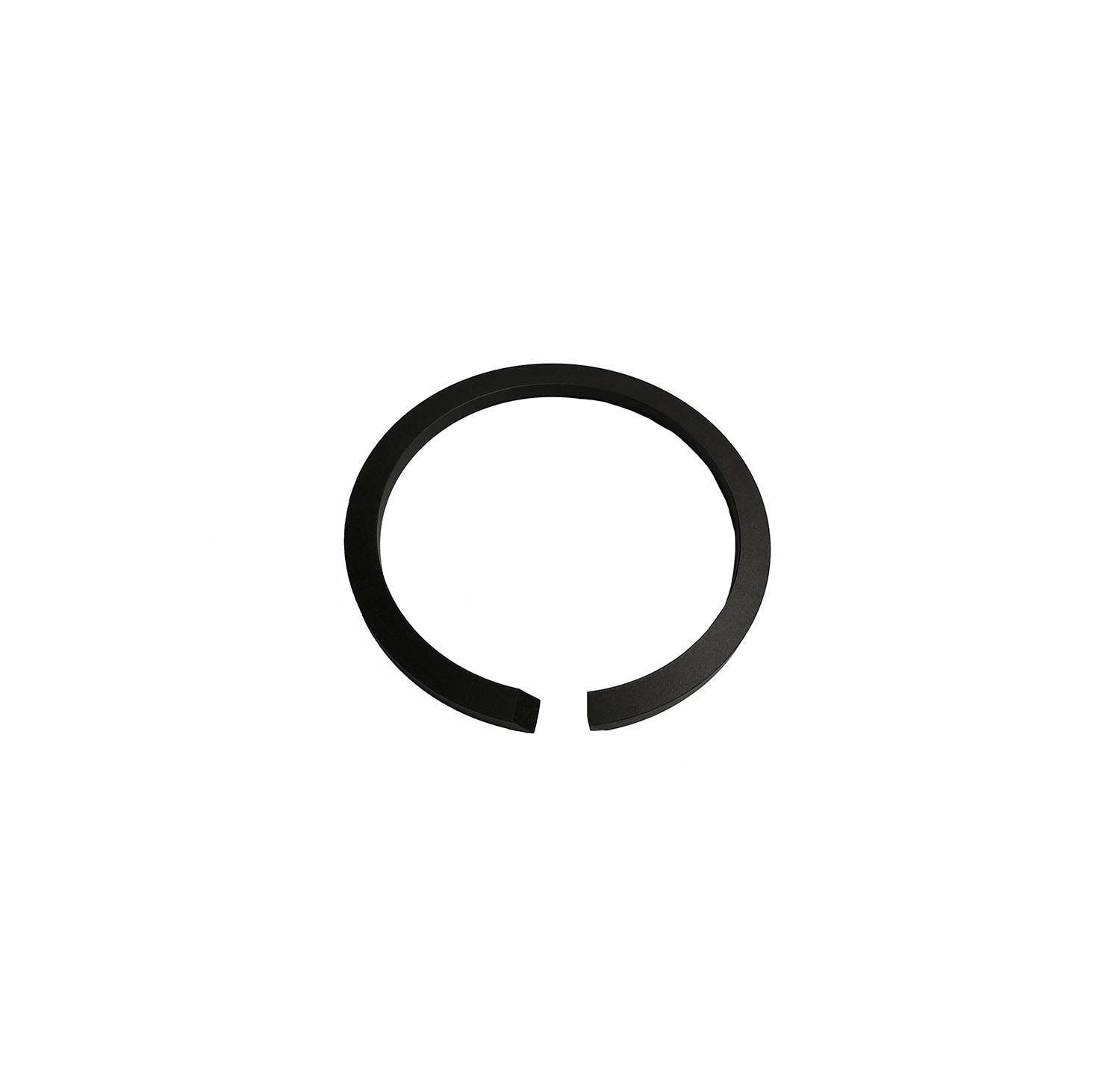

| 3 | 3831660 | PISTON RING DIAM. 185 MM |

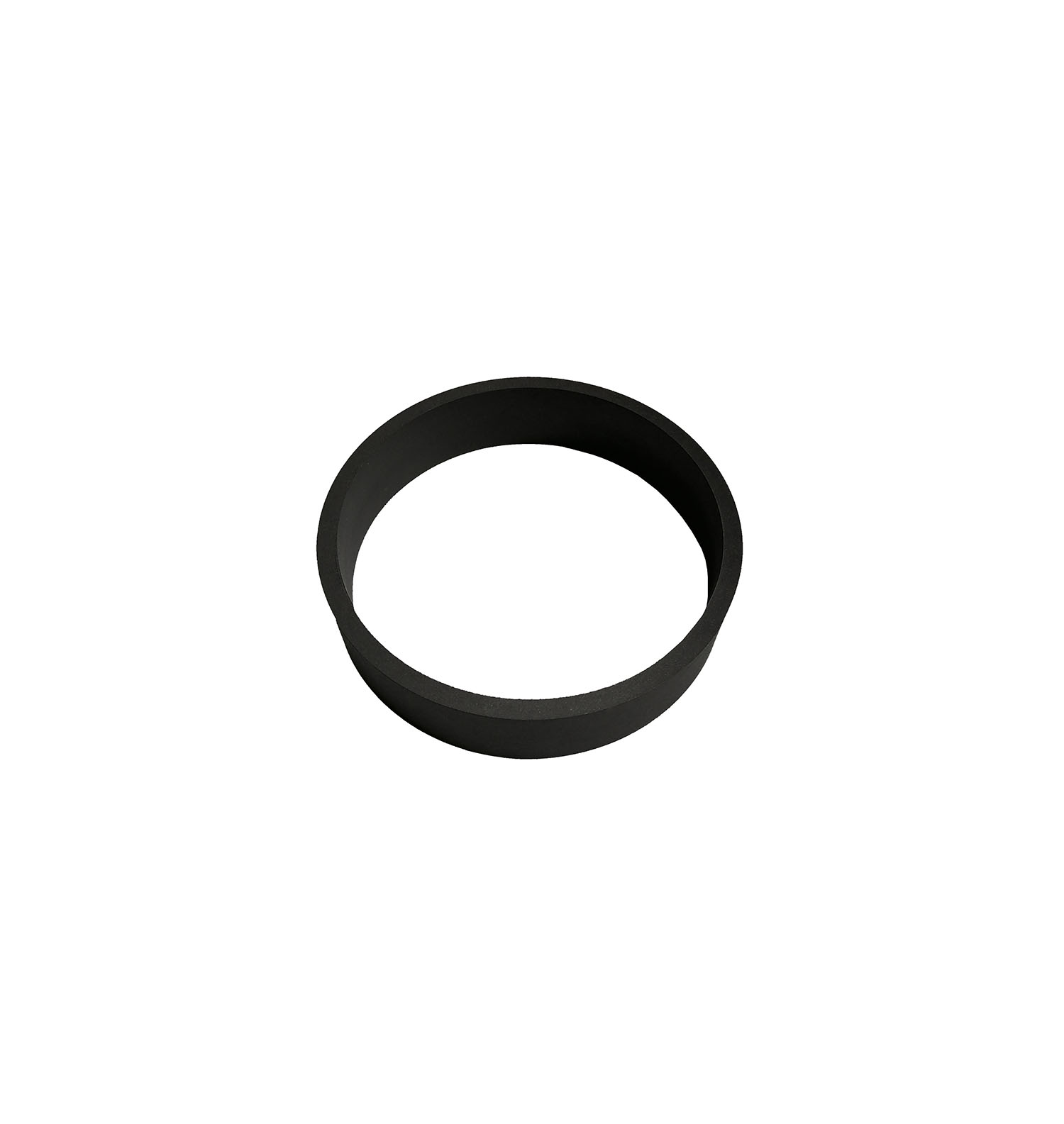

| 2 | 3831670 | RIDER RING DIAM. 185 MM. |

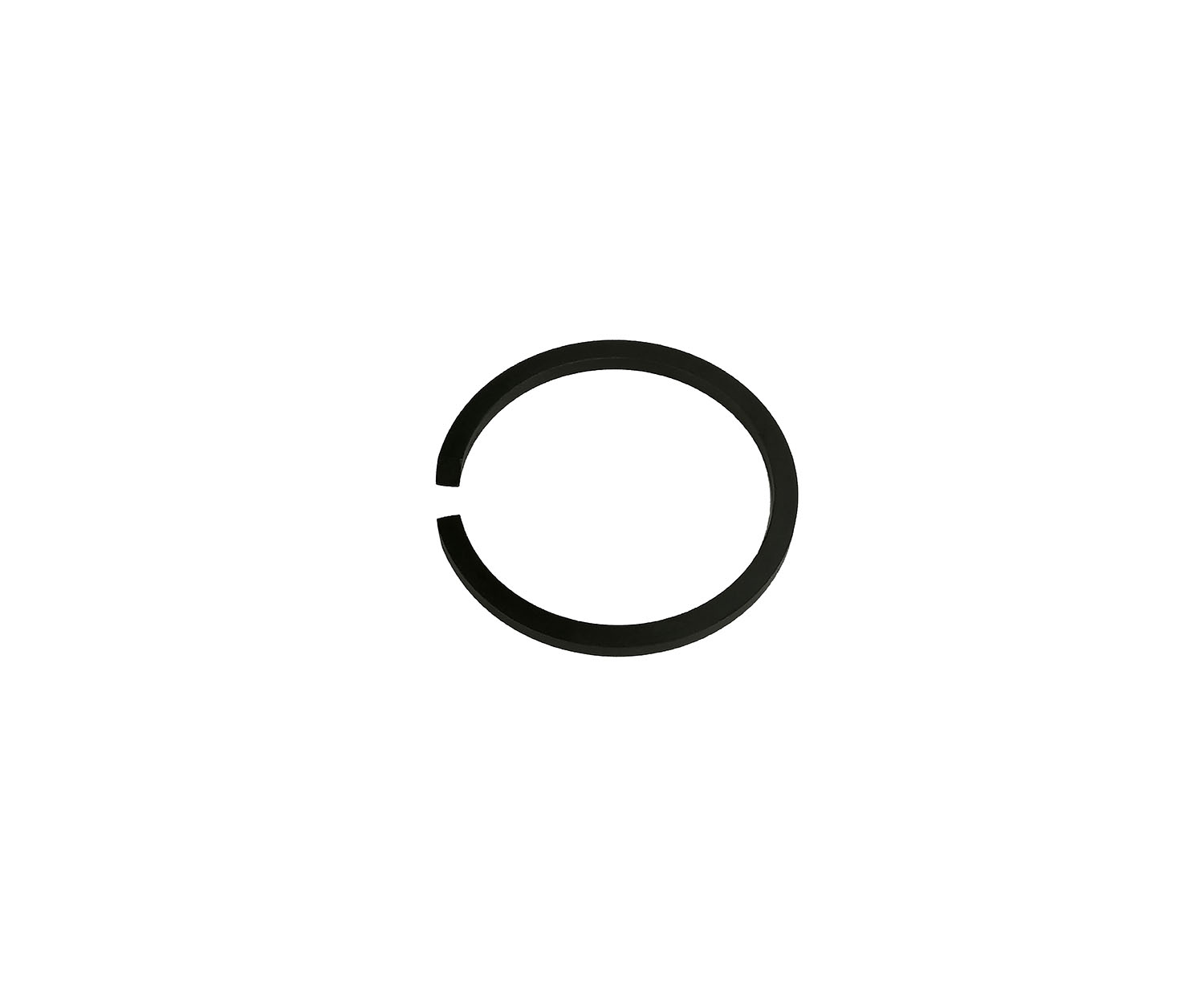

| 5 | 3831530 | PISTON RING DIAM 125 MM. |

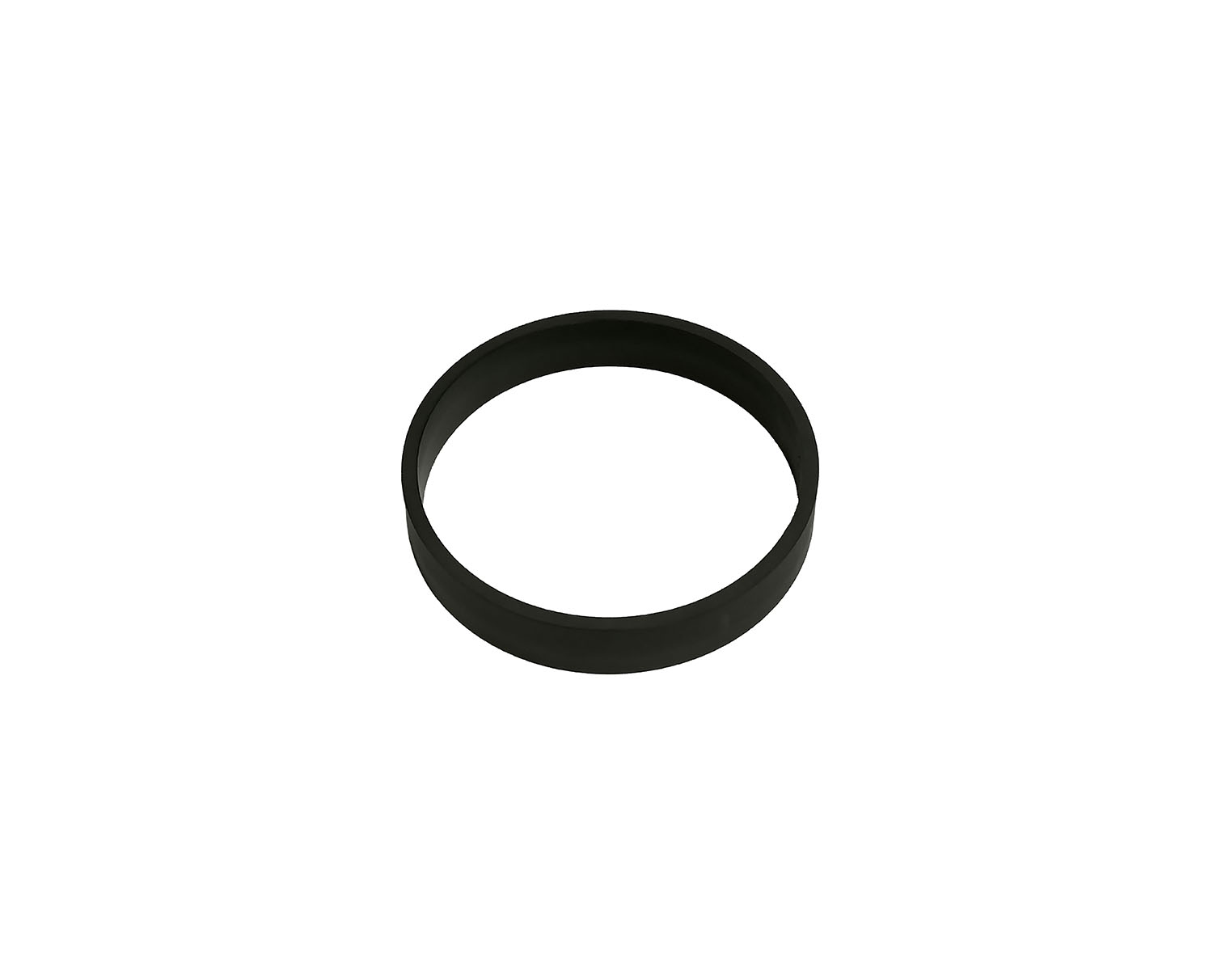

| 2 | 3831540 | RIDER RING DIAM. 125 MM |

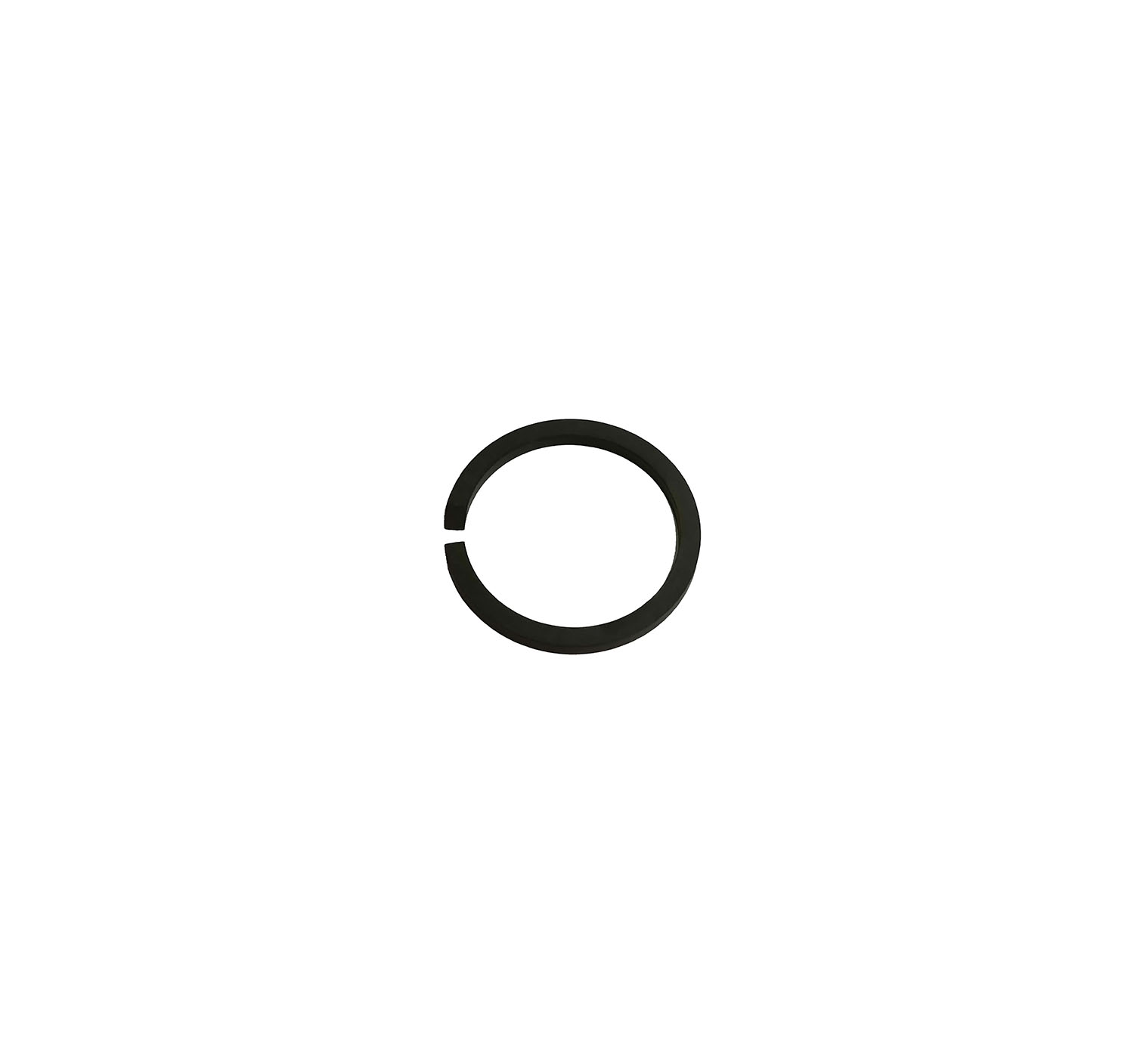

| 7 | 3831400 | PISTON RING DIAM. 75 MM |

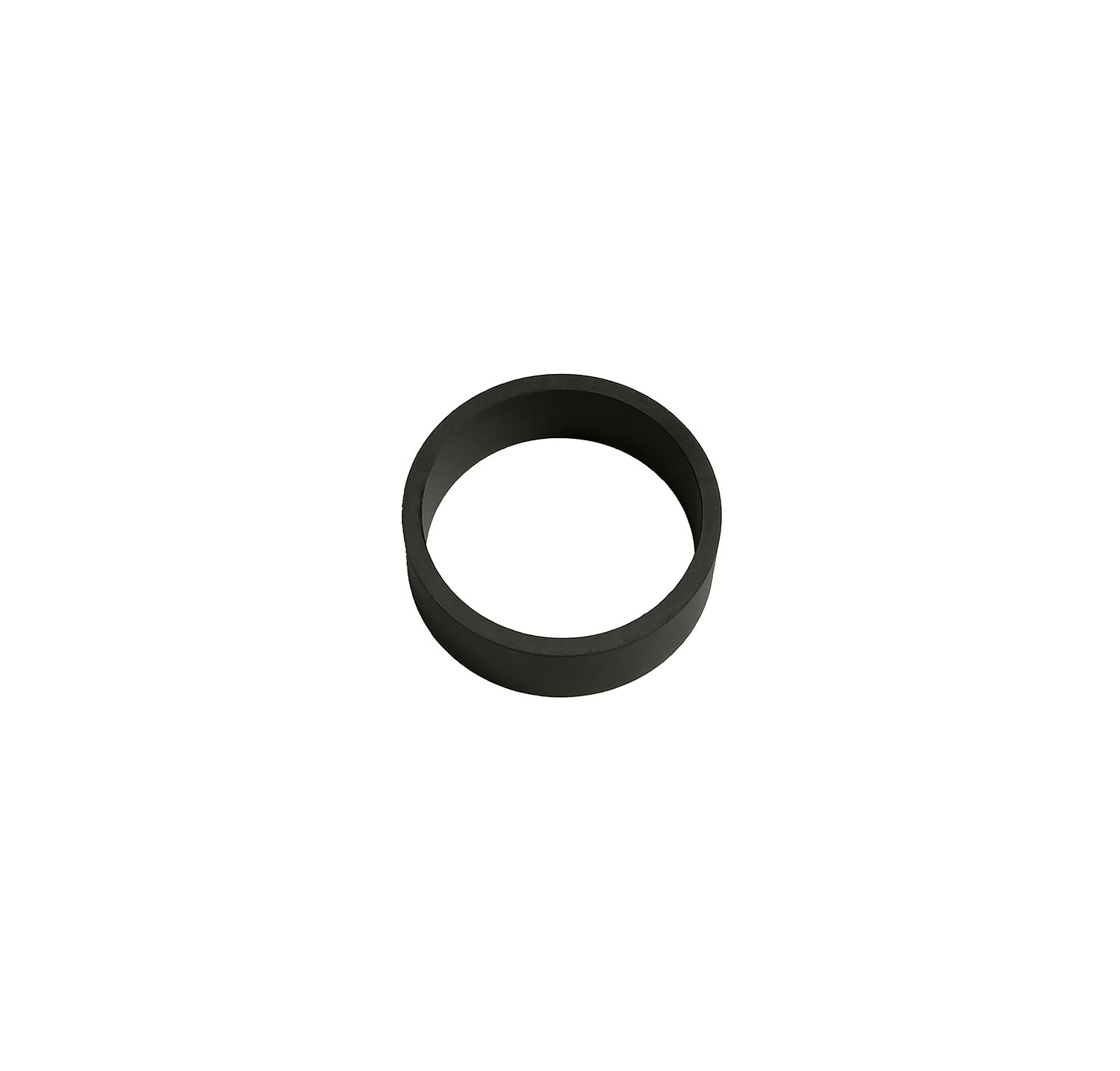

| 2 | 3831410 | RIDER RING DIAM. 75MM |

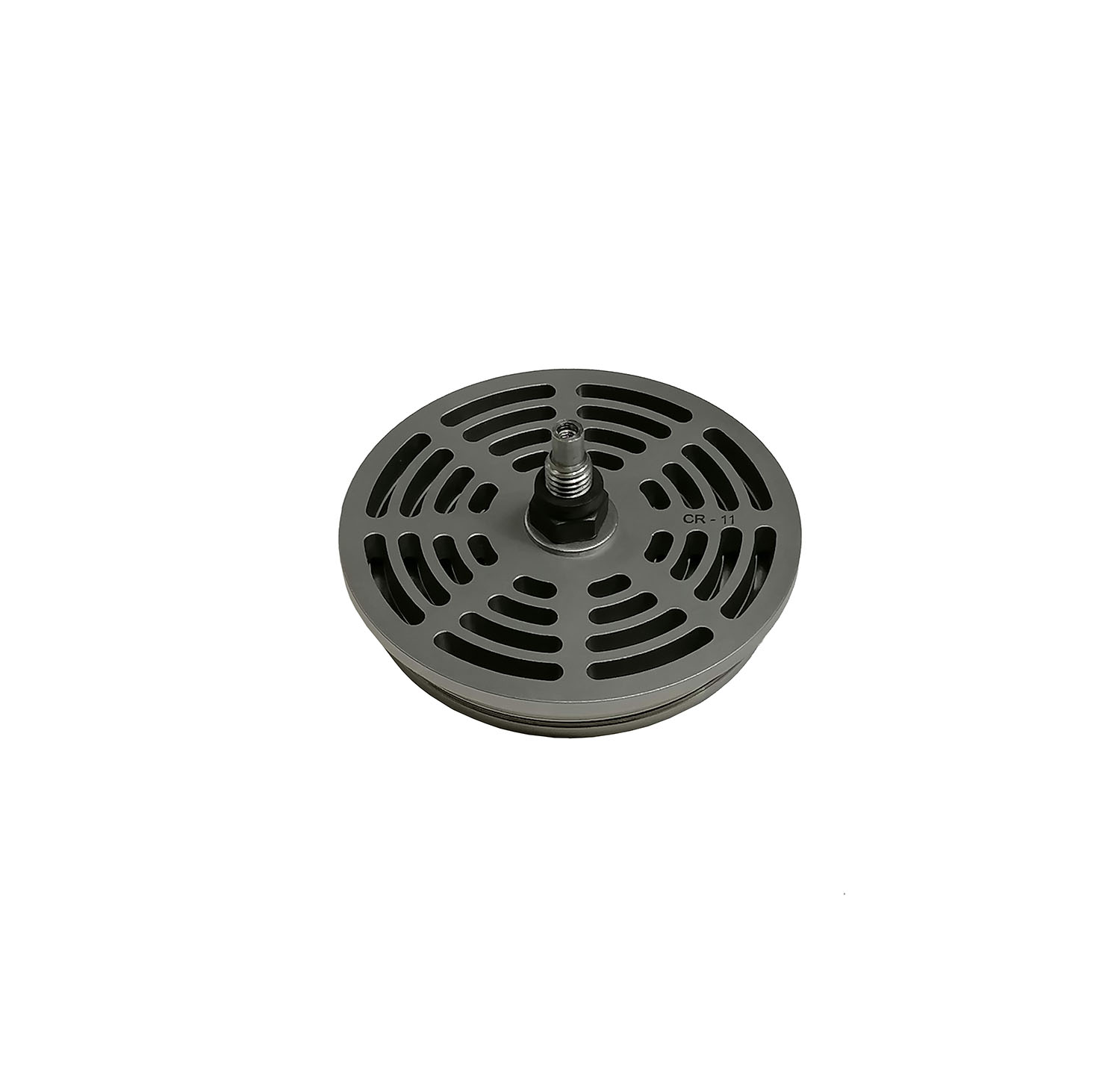

| 6 | 3944700 | VALVE 105CR-11 ADM. |
| 6 | 3945700 | VALVE 105CR-12 IMP. |

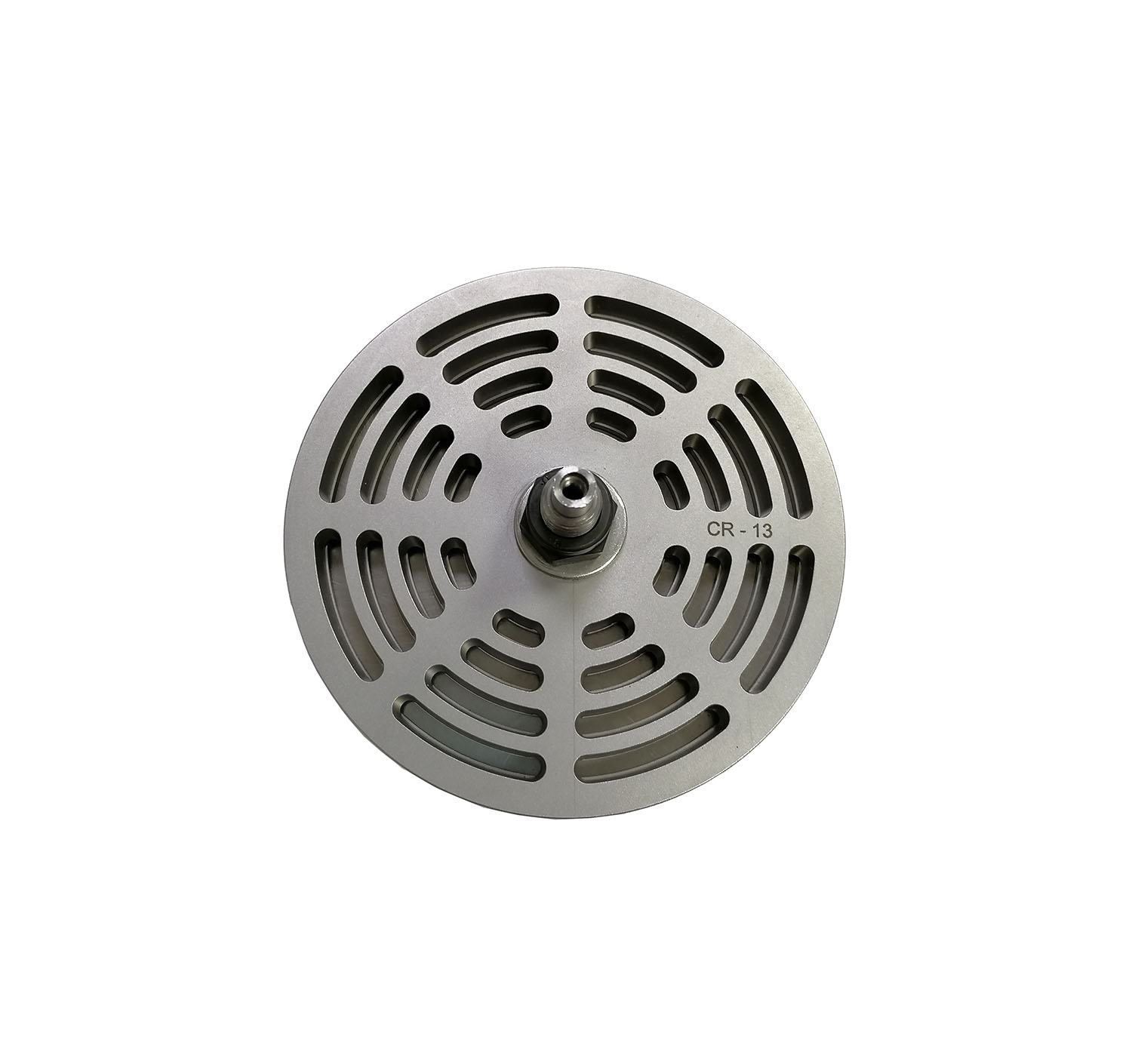

| 2 | 3944710 | VALVE 105CR-13 ADM. |

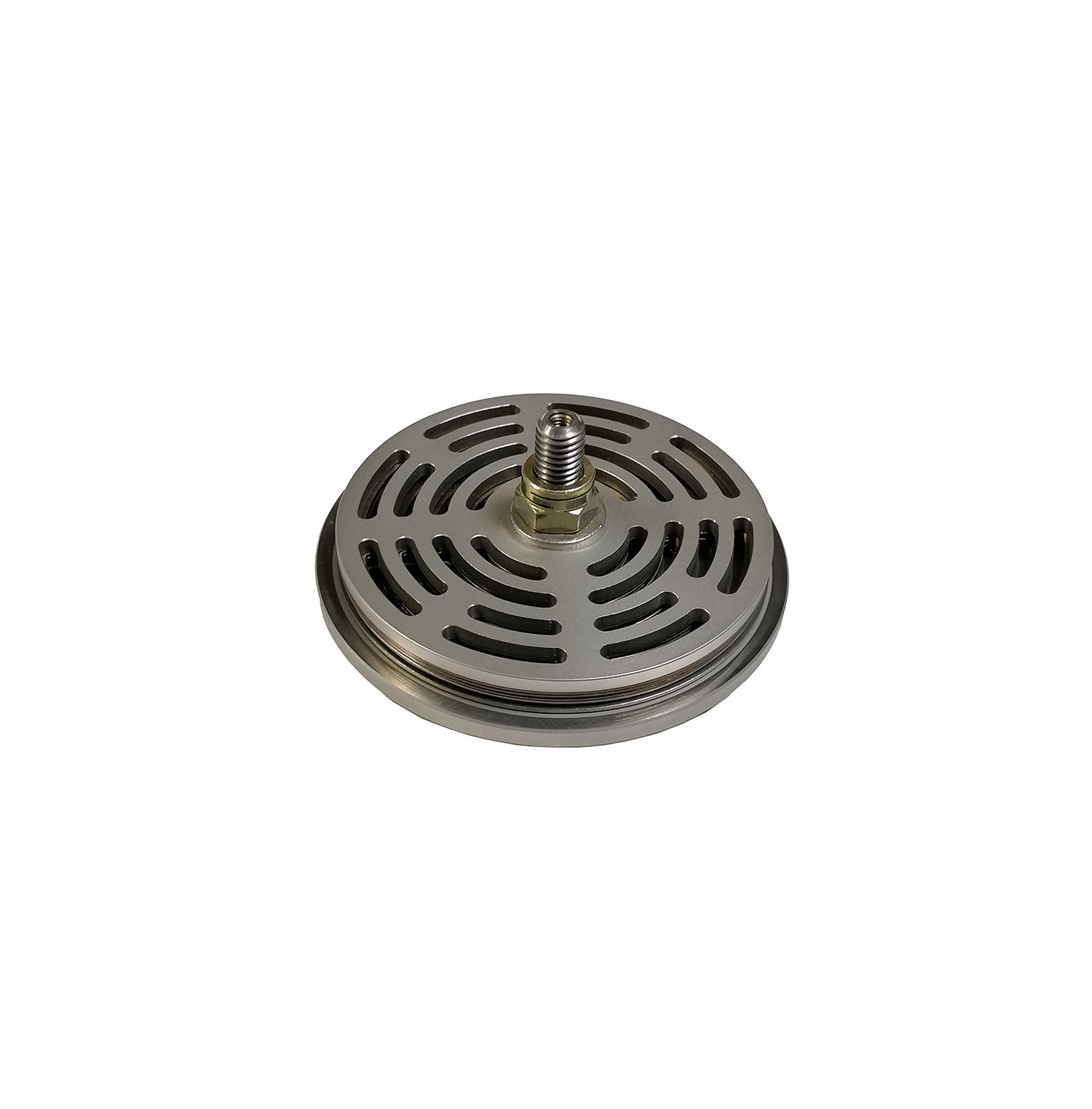

| 2 | 3945710 | VALVE 105CR-14 IMP. |

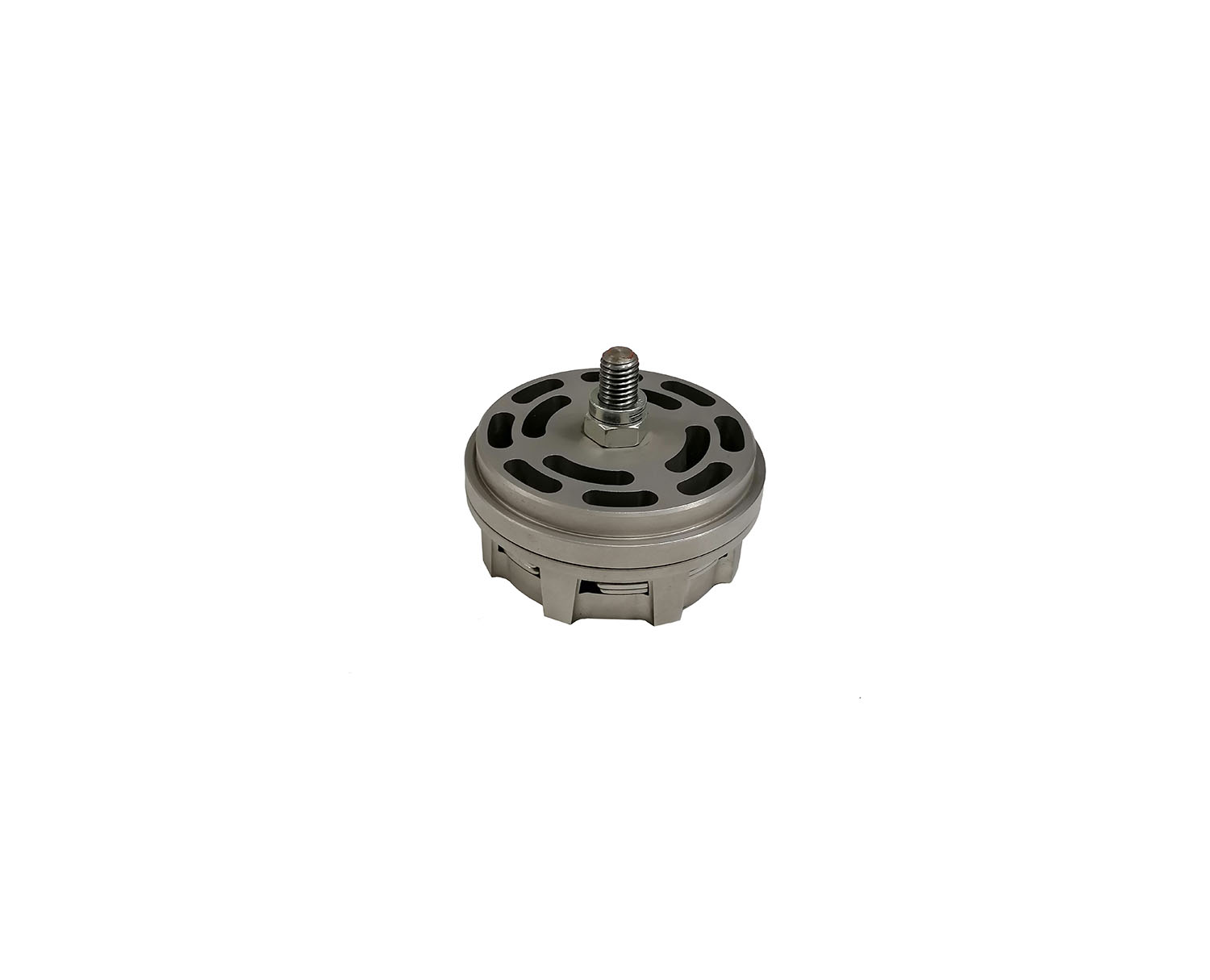

| 2 | 3944660 | VALVE 79RLX ADM. |

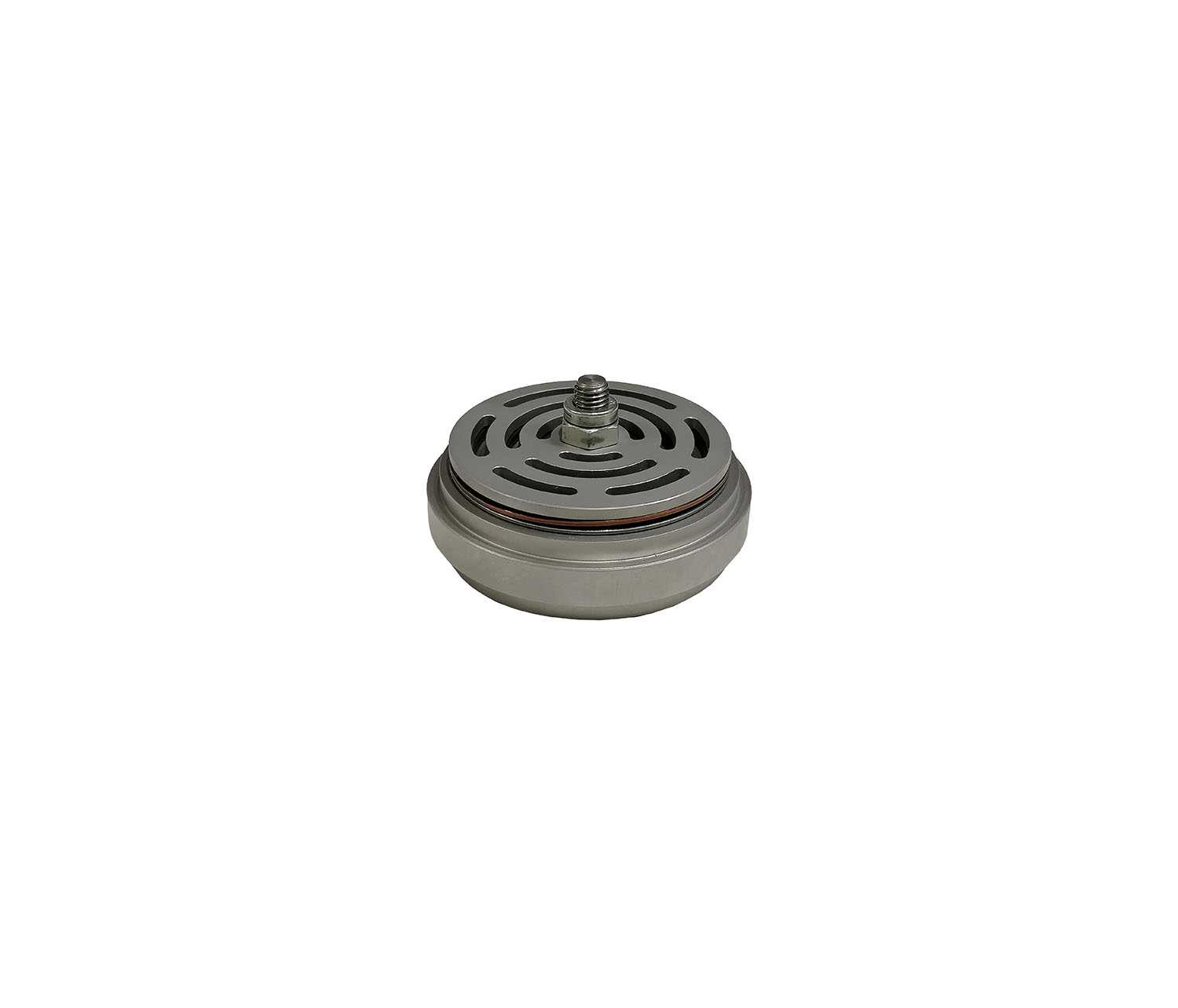

| 2 | 3945240 | VALVE 79RLX IMP. |
| 2 | 3944520 | VALVE 52ED ADM. |

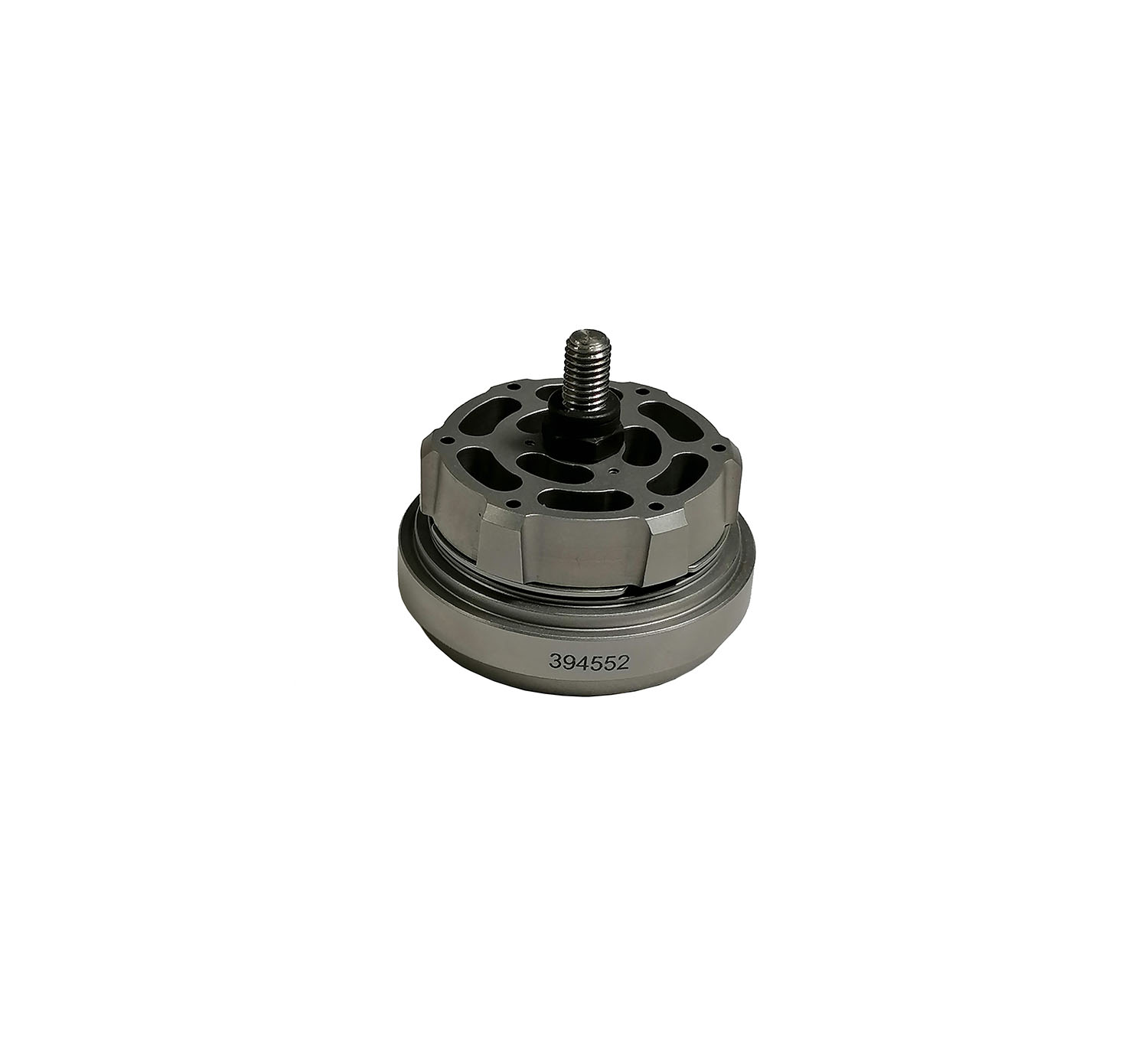

| 2 | 3945520 | VALVE 52ED IMP. |

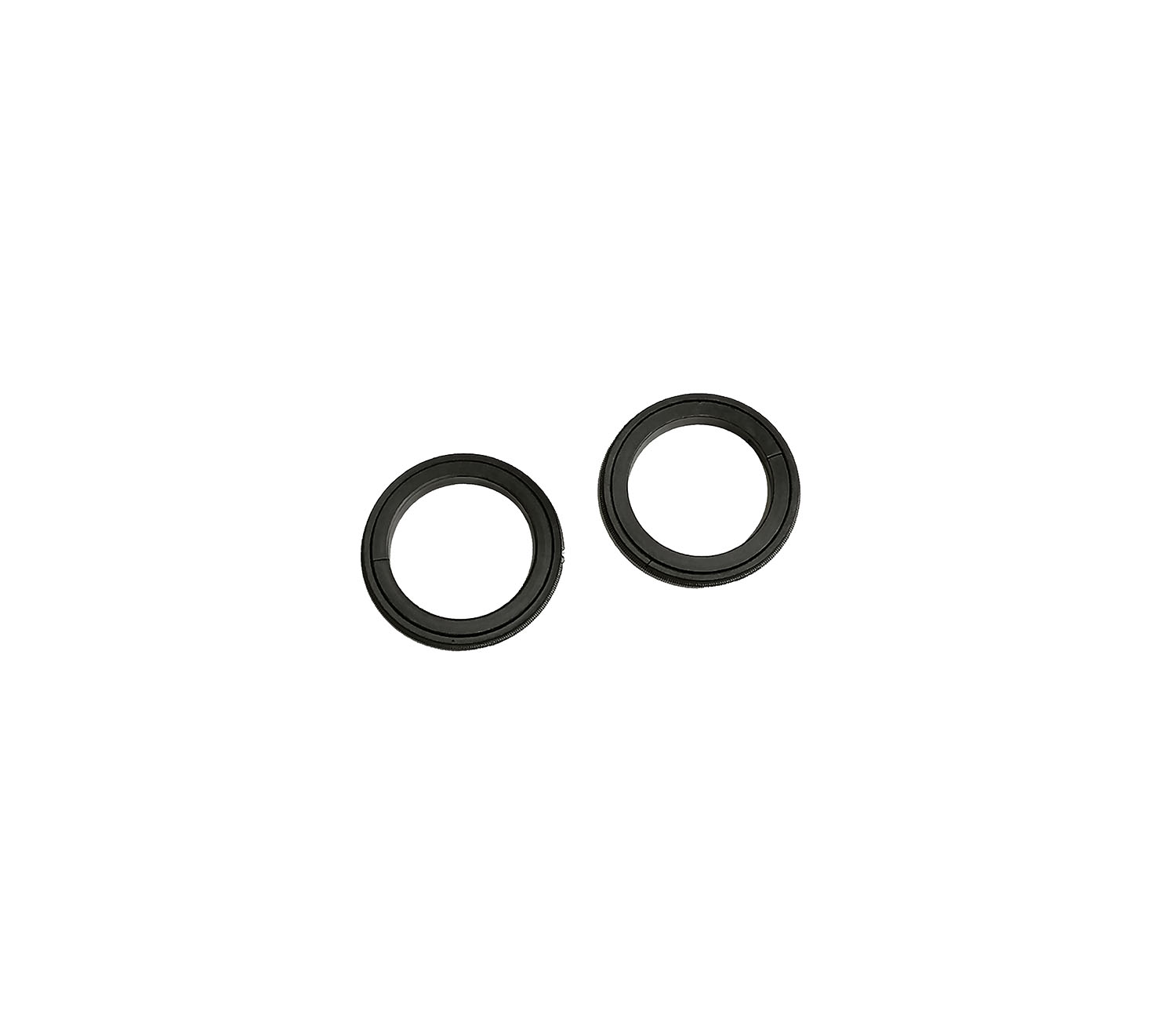

| 37 | 3037760 | RING |

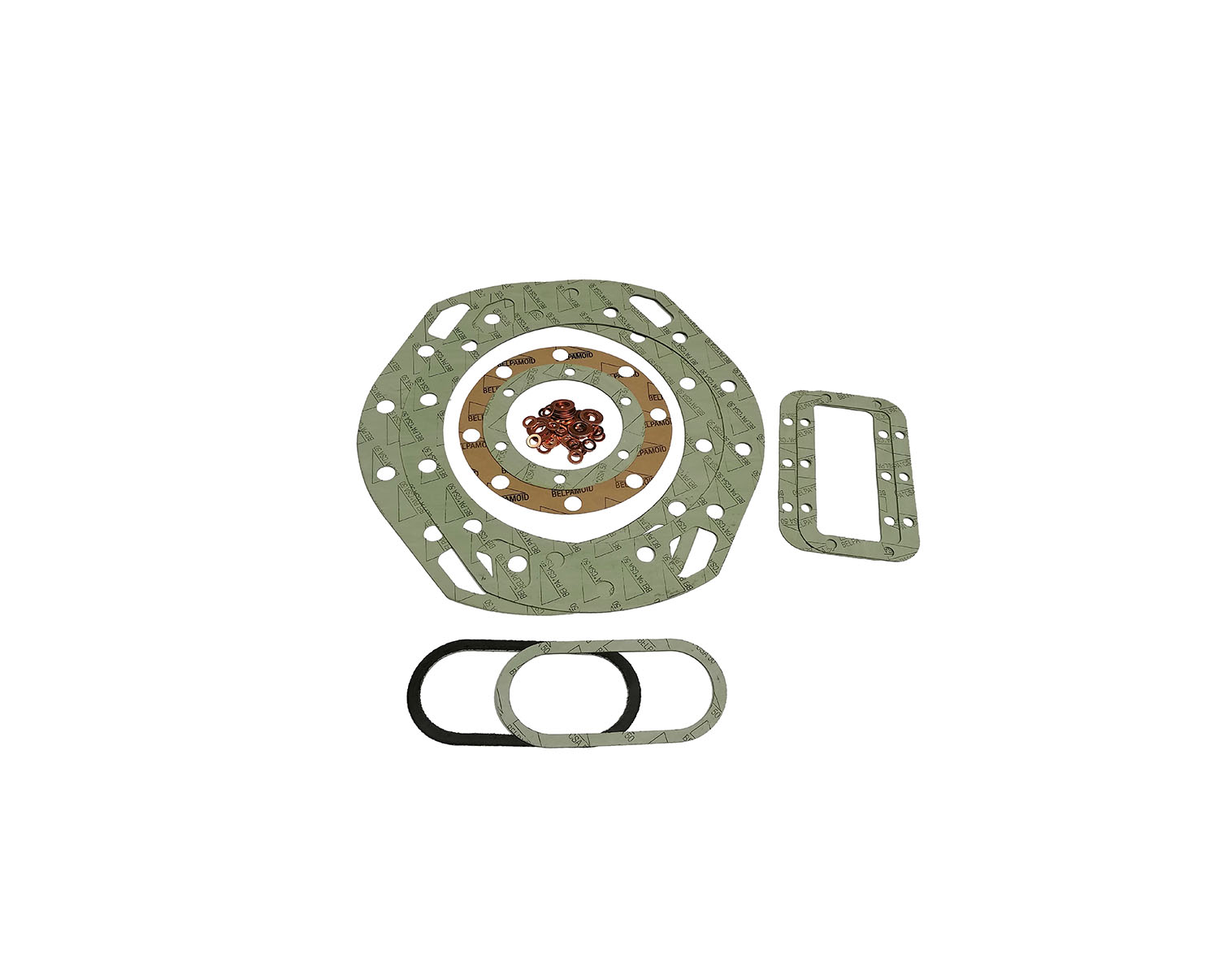

| 1 | 3539500 | JOINT |

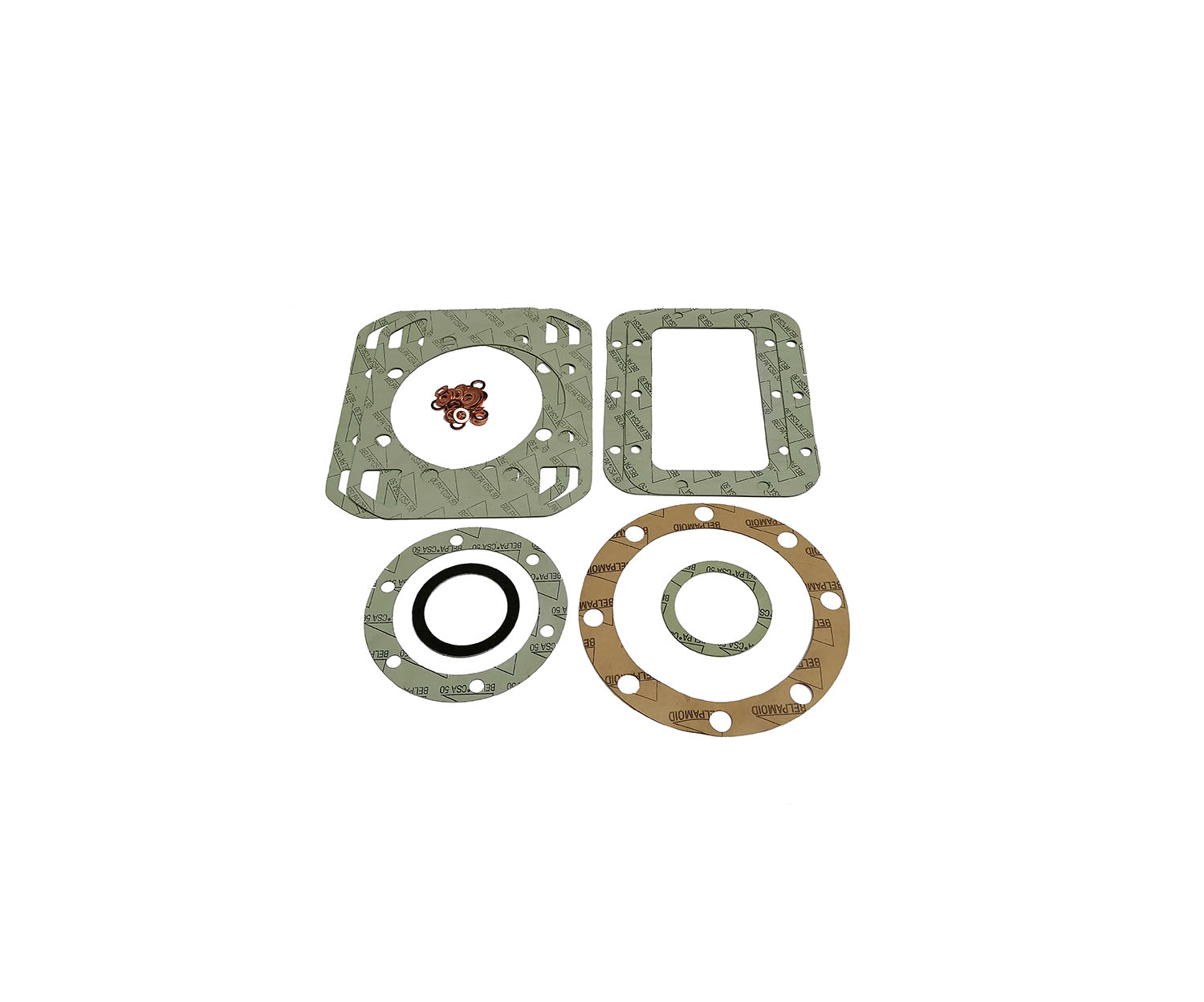

| 1 | 3539470 | JOINT |

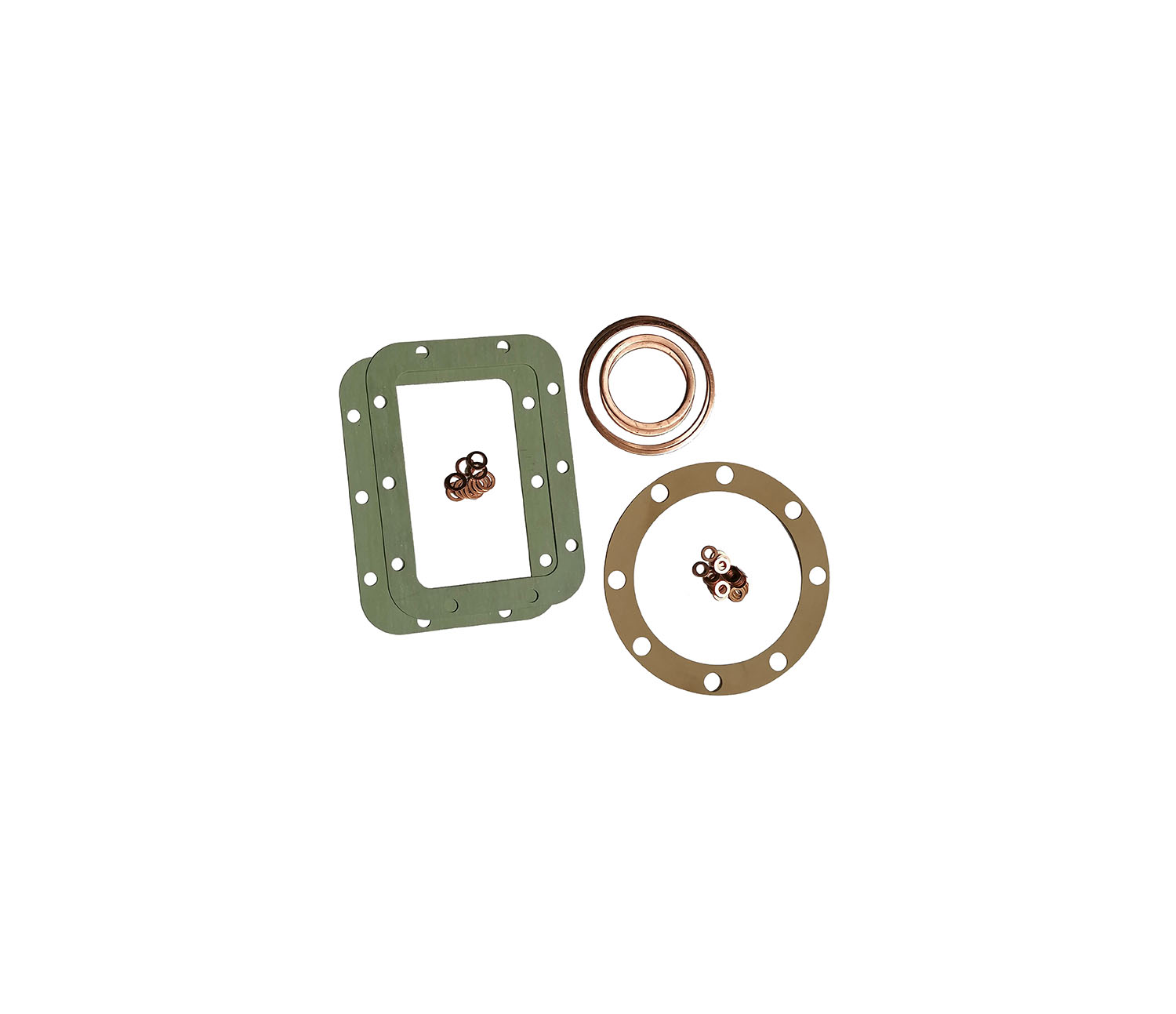

| 1 | 3539440 | JOINT |

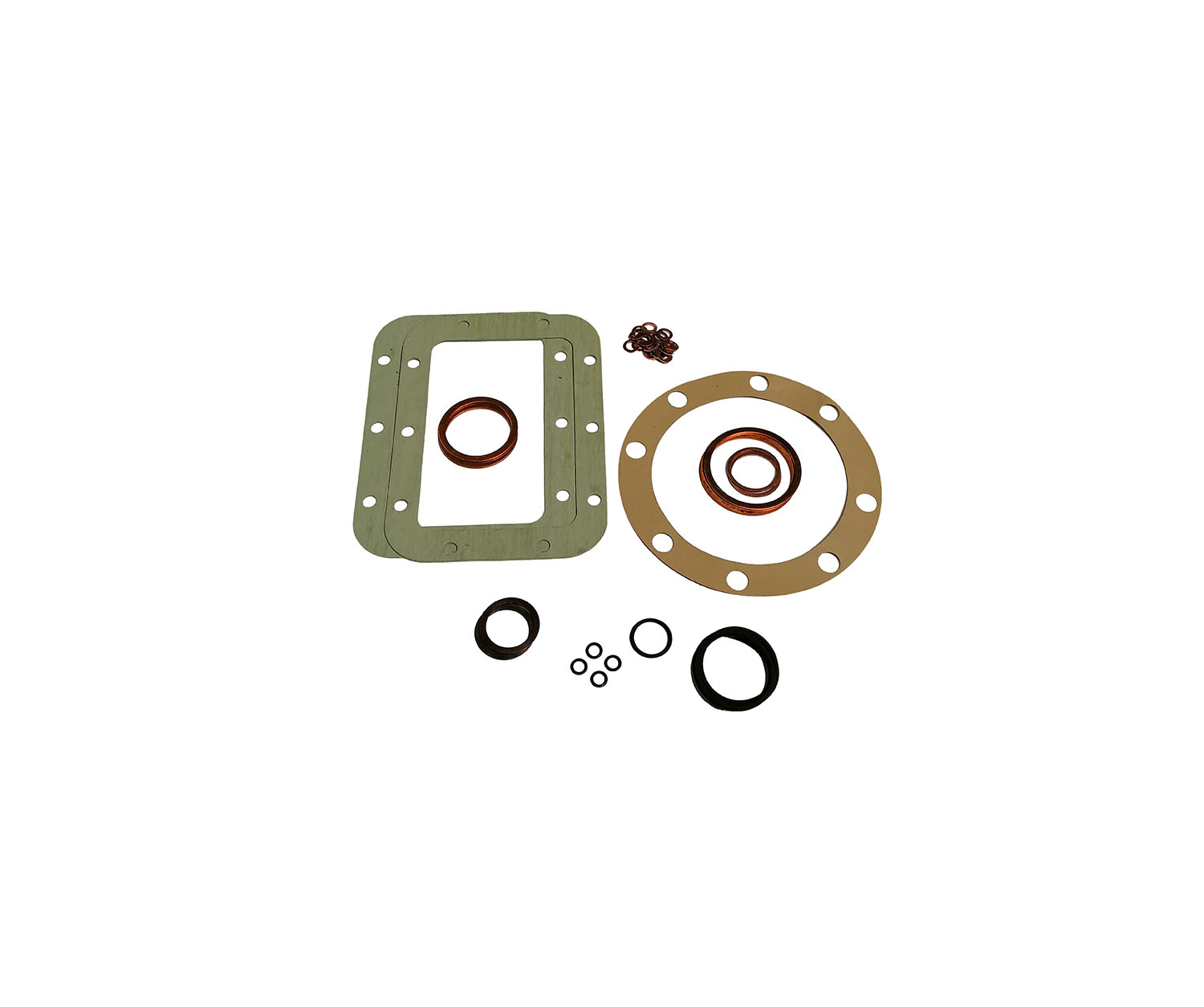

| 1 | 3539410 | JOINT |

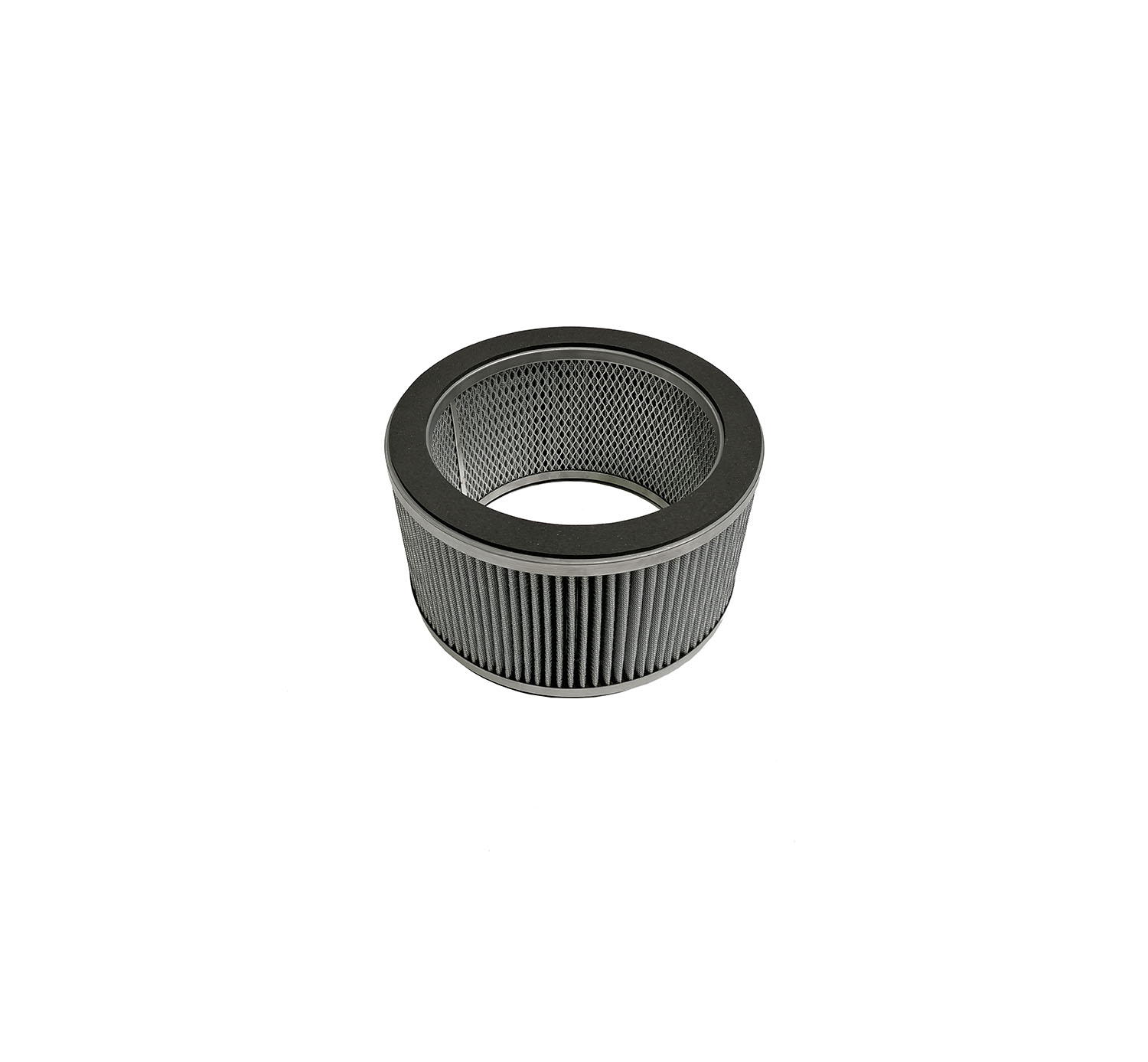

| 1 | 3312130 | CARTRIDGE FILTER |

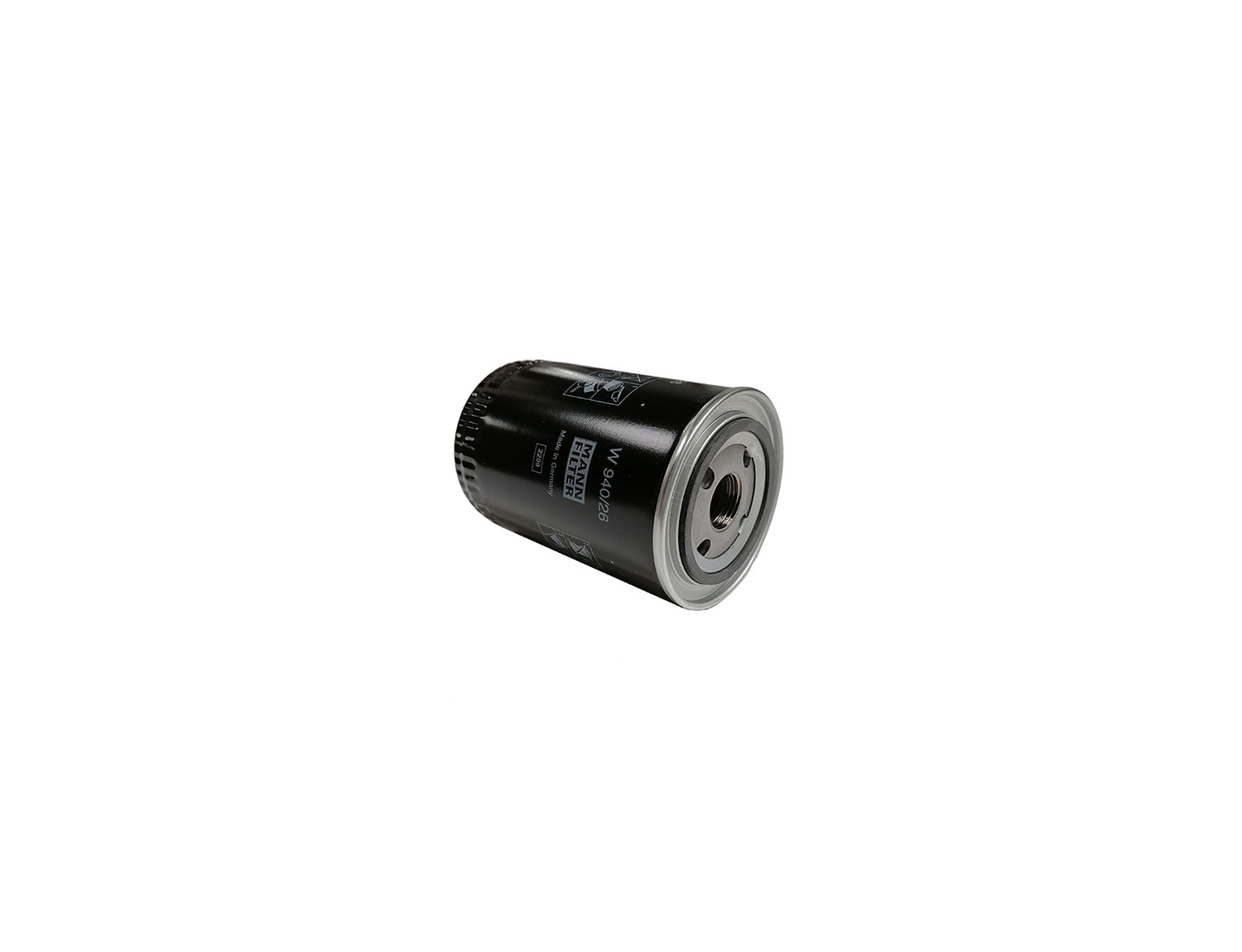

| 1 | 4372580 | CARTRIDGE FILTER |
| 1 | 3574850 | JOINT |

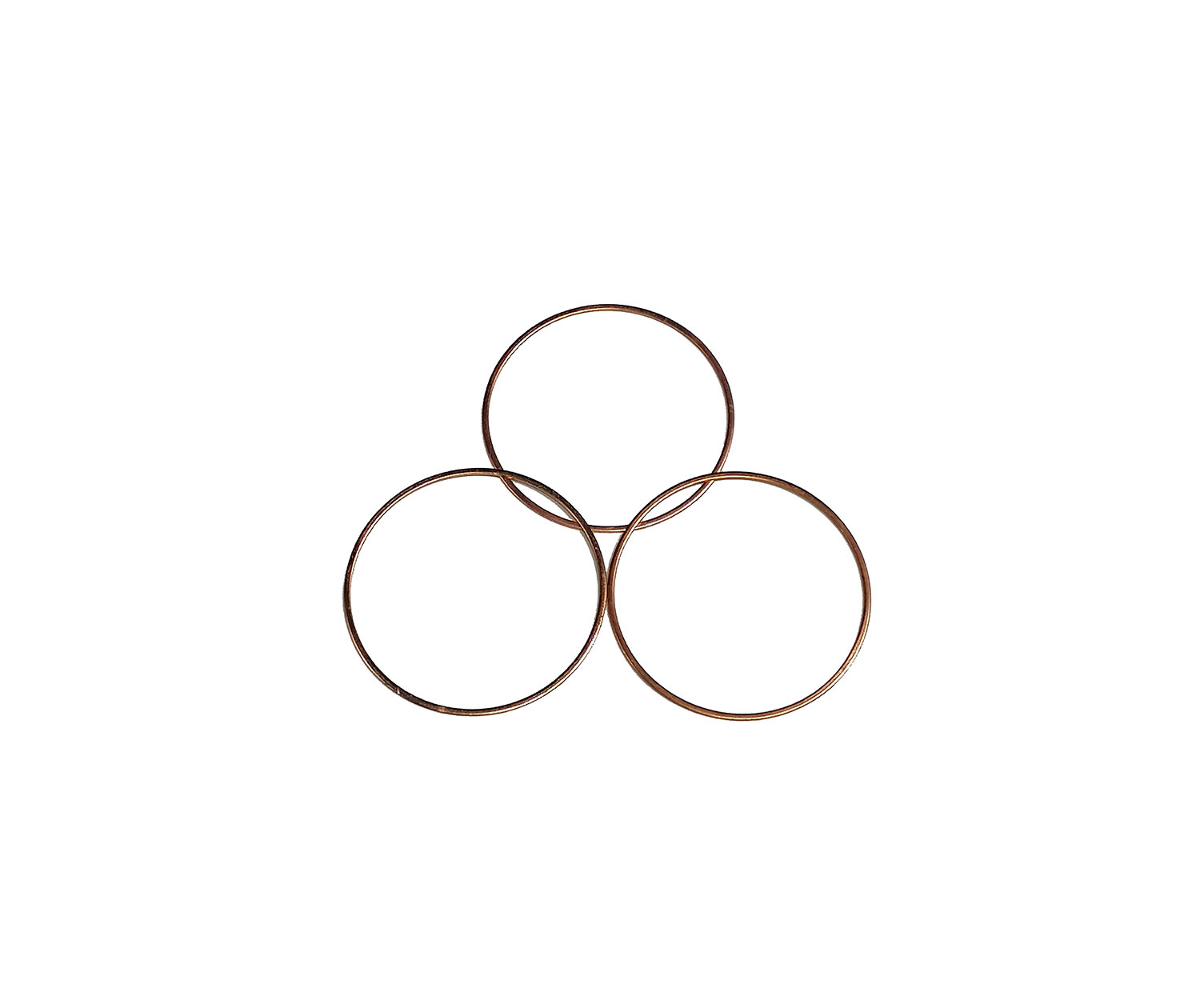

| 16 | 3573670 | JOINT |

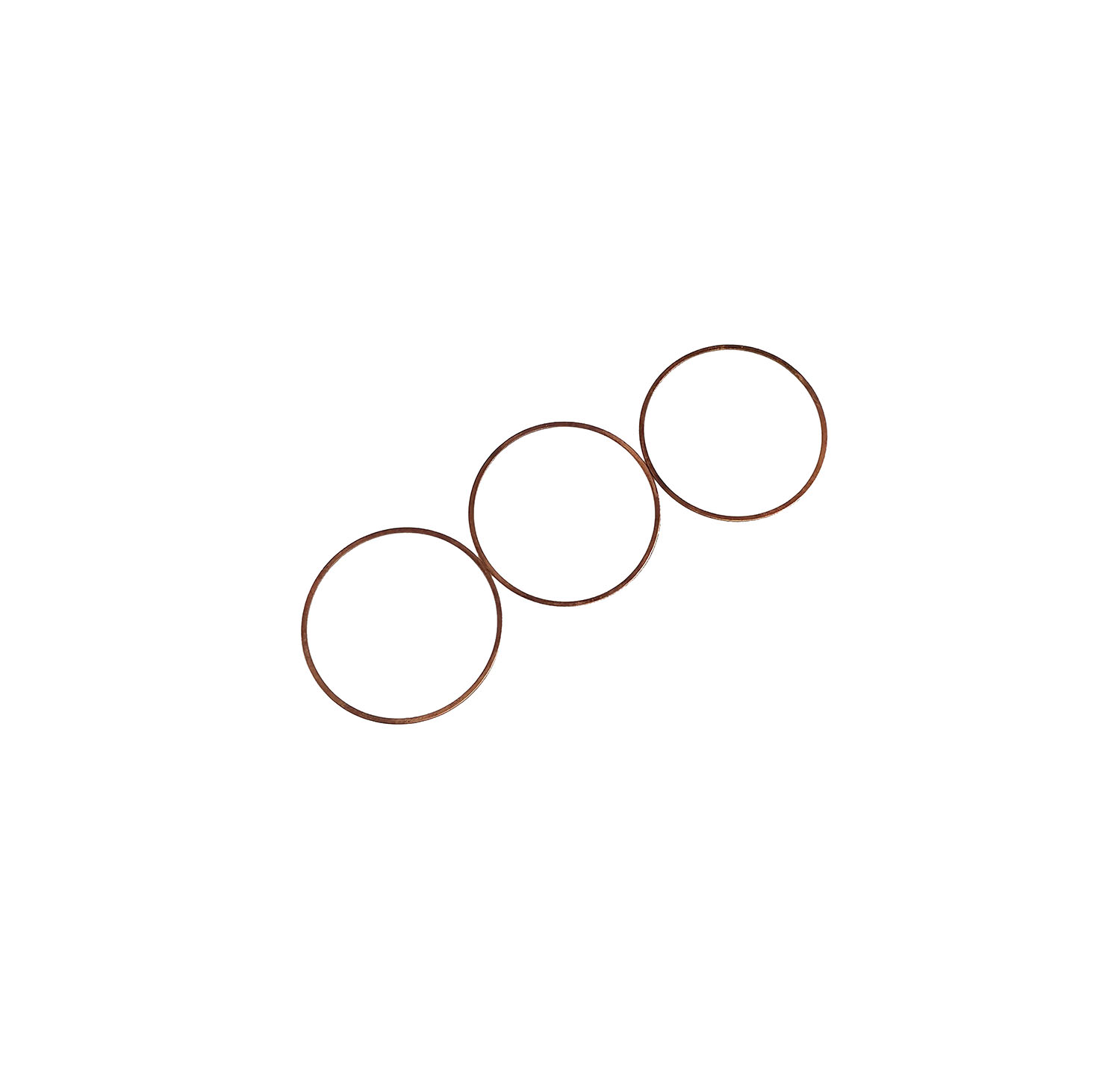

| 16 | 3573690 | RING |

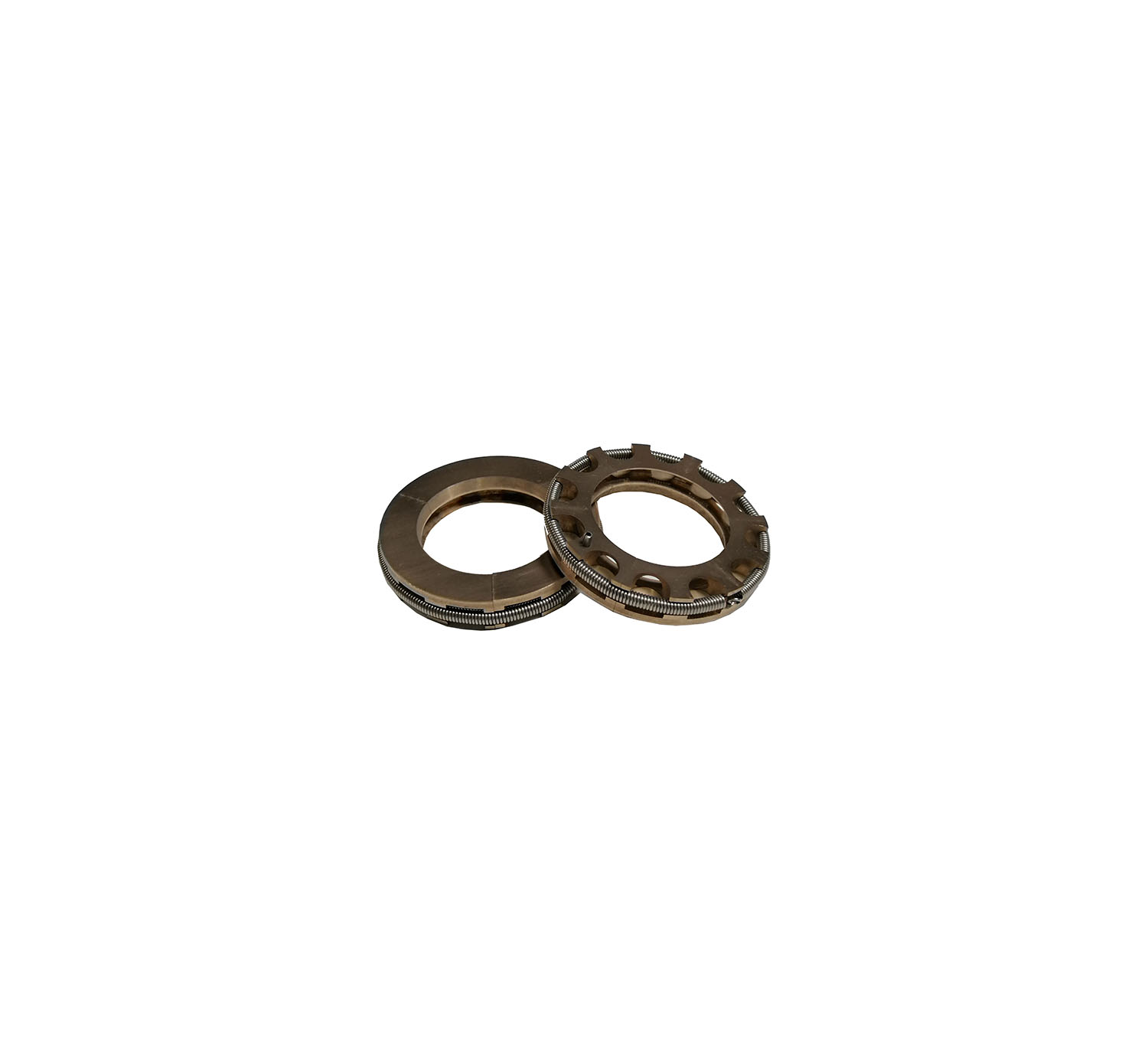

| 4 | 3037560 | RING |

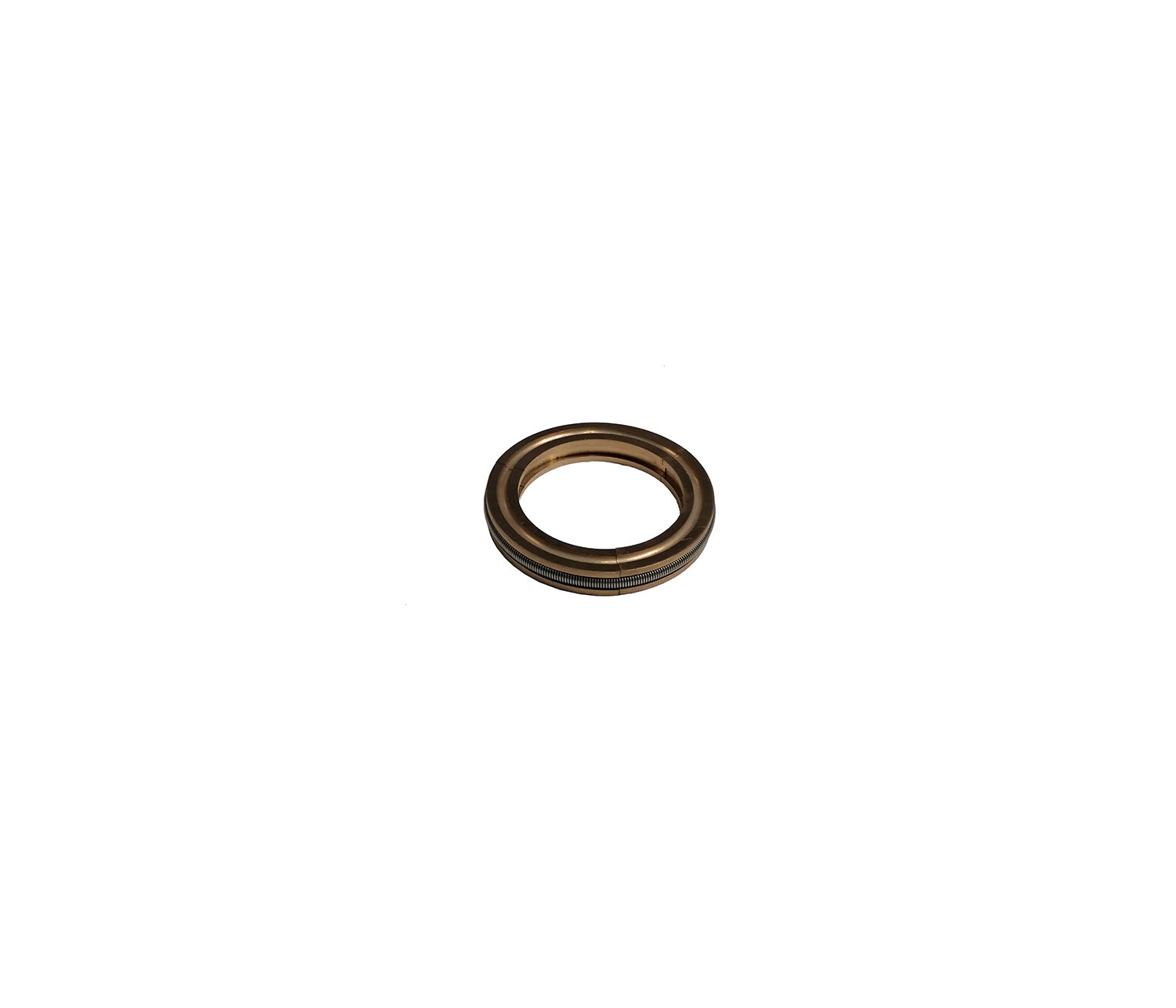

| 2 | 3037570 | RING |

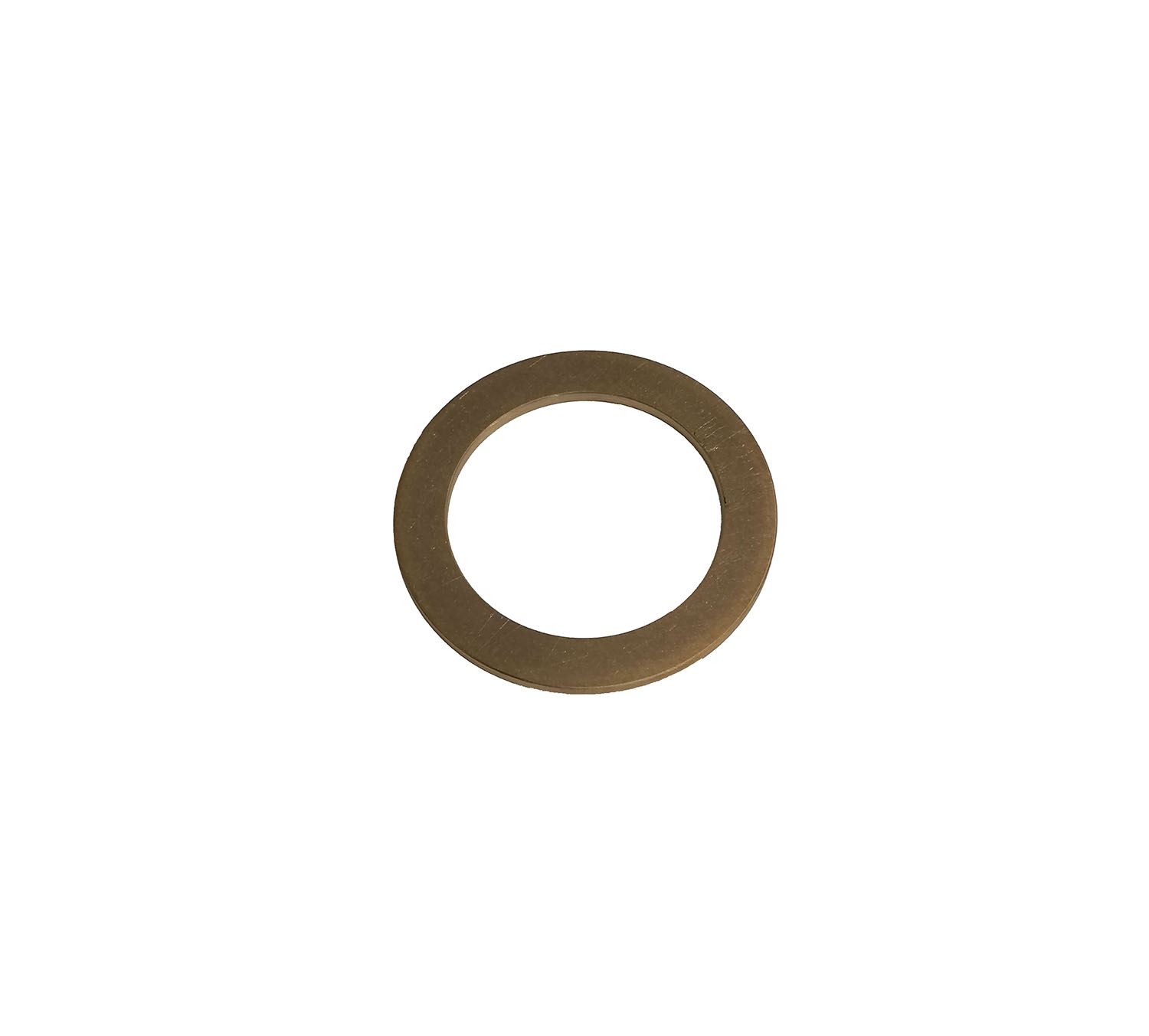

| 6 | 3037500 | RING |

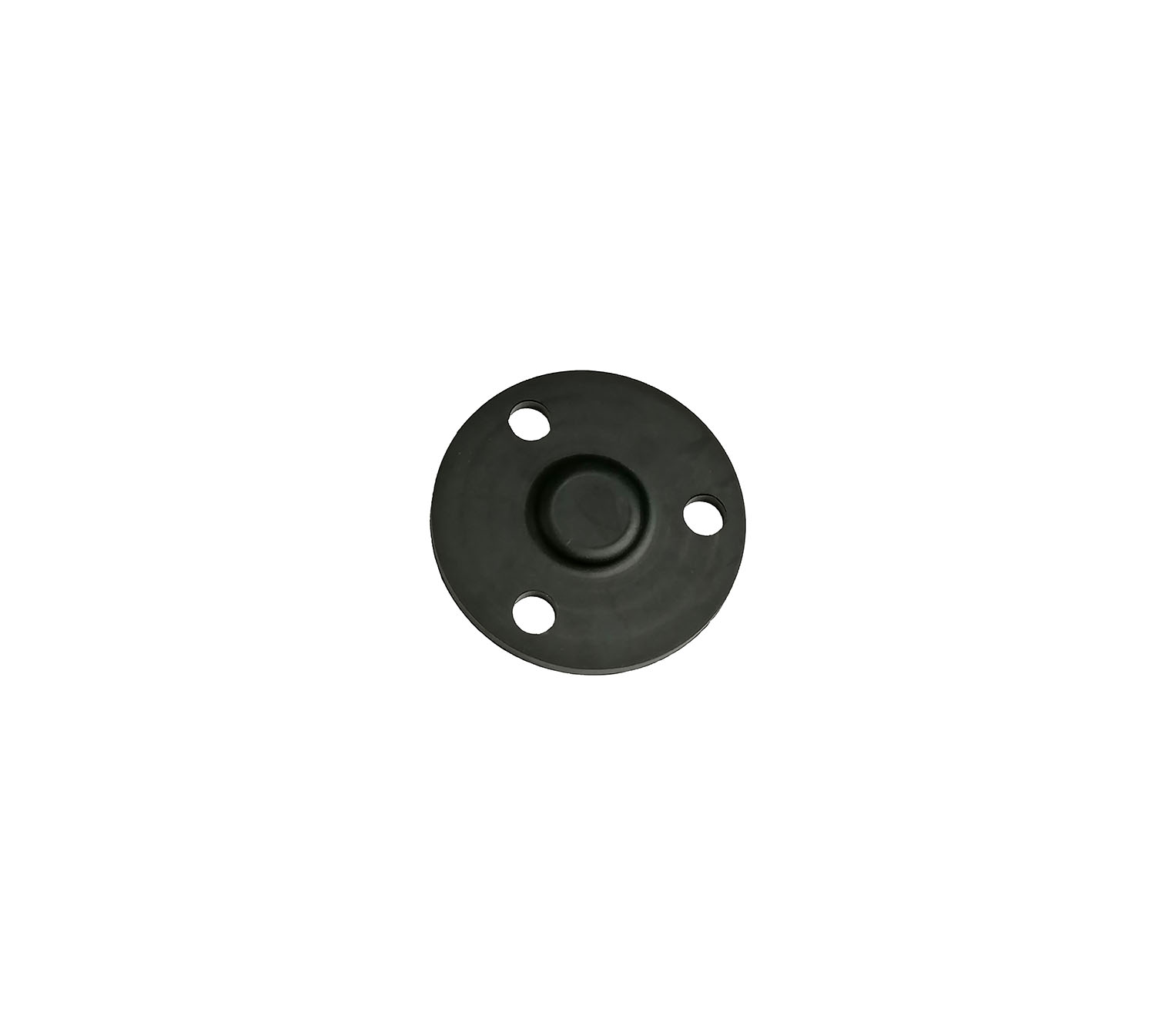

| 6 | 3637060 | MEMBRANE |

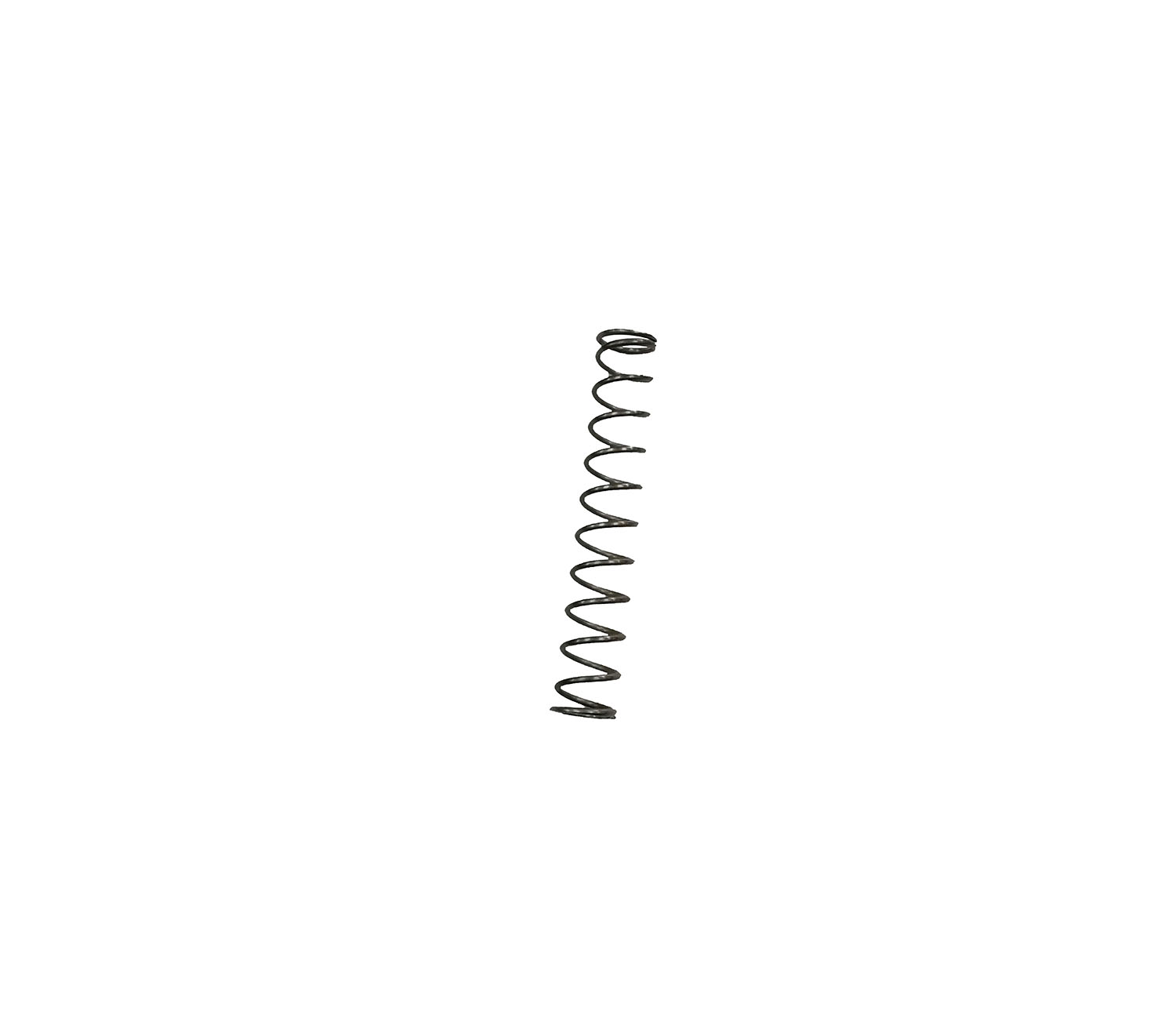

| 8 | 3649030 | SPRING |

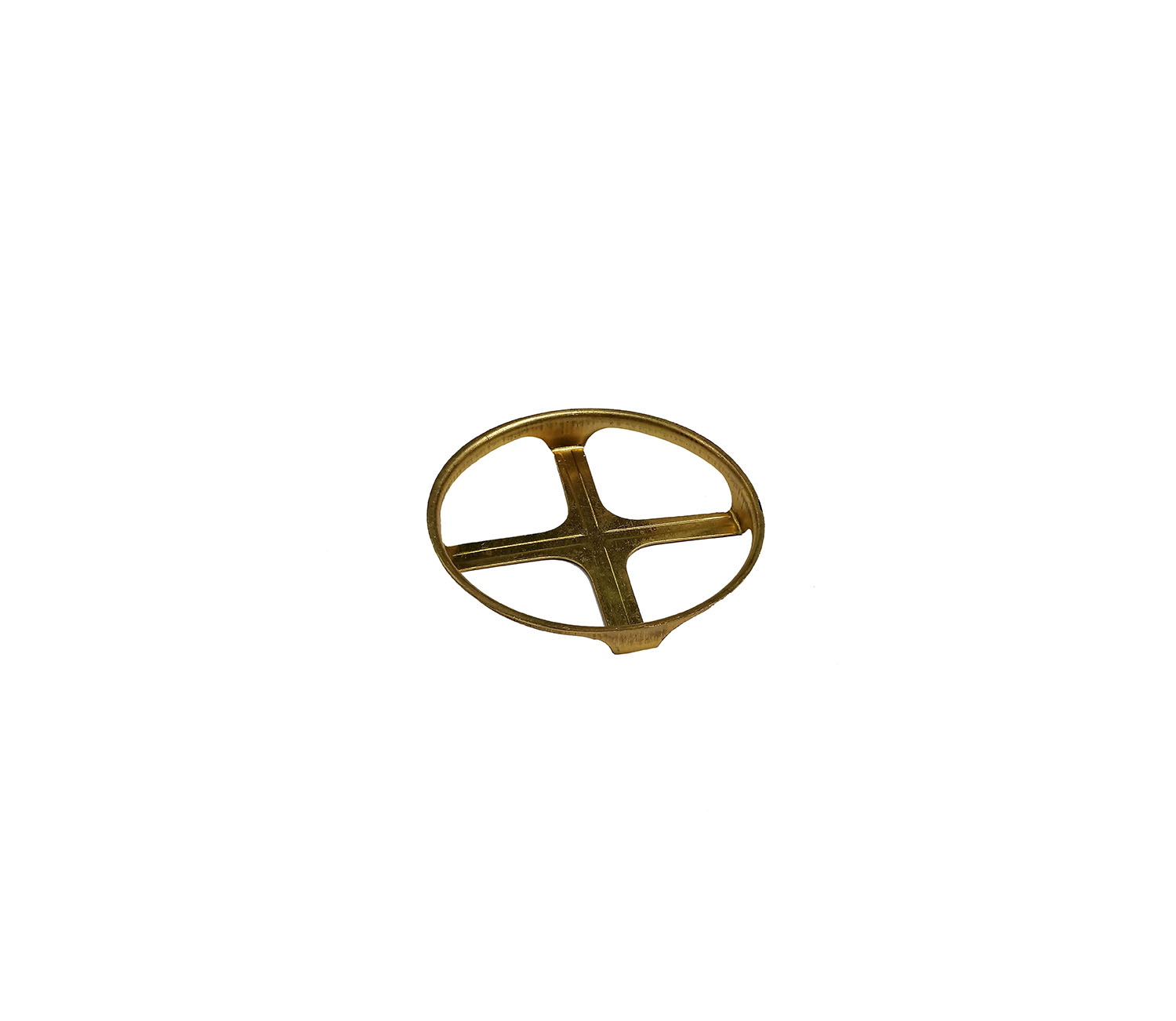

| 2 | 3798050 | PROTECTION GRILL |

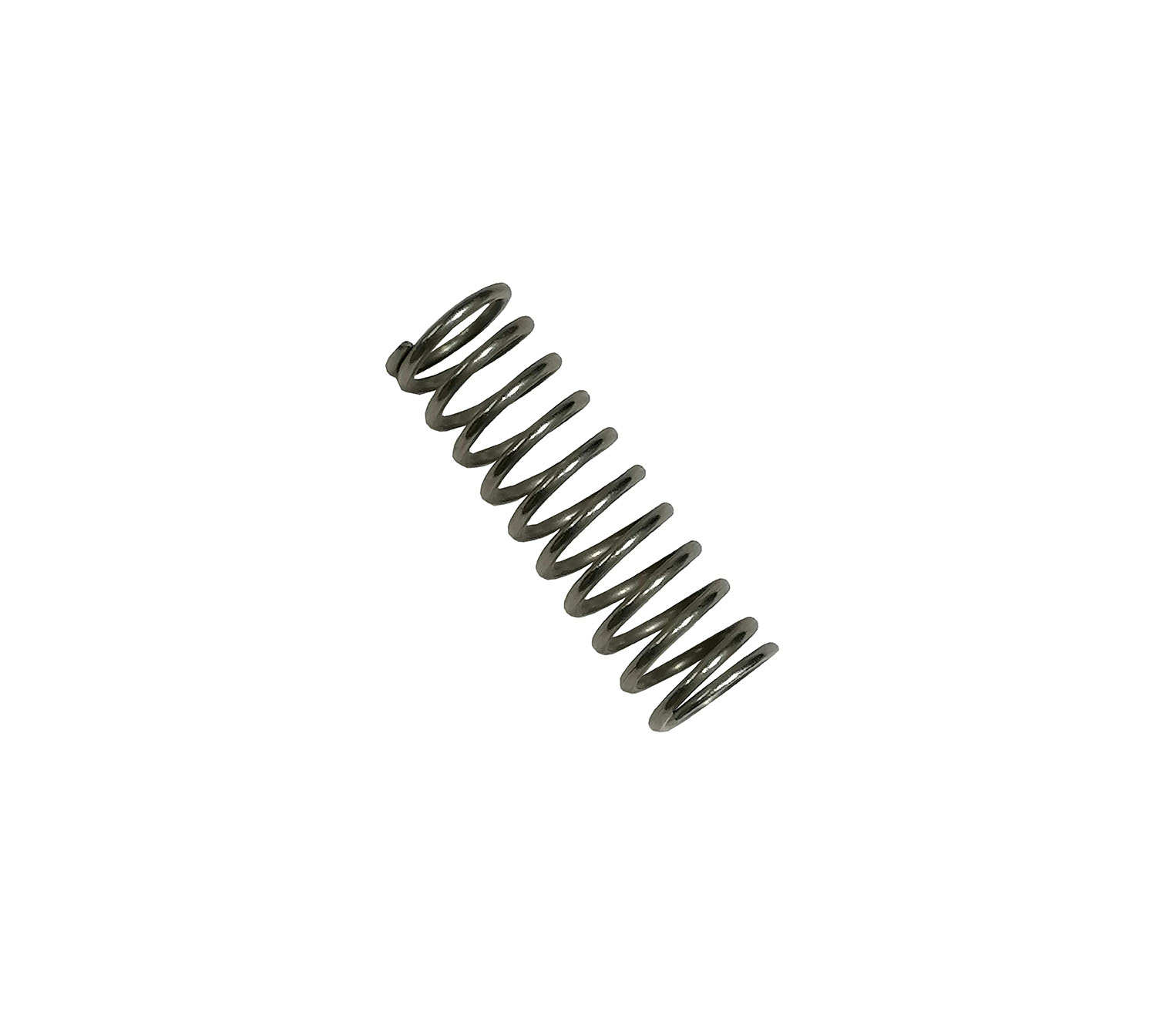

| 2 | 3649070 | SPRING |

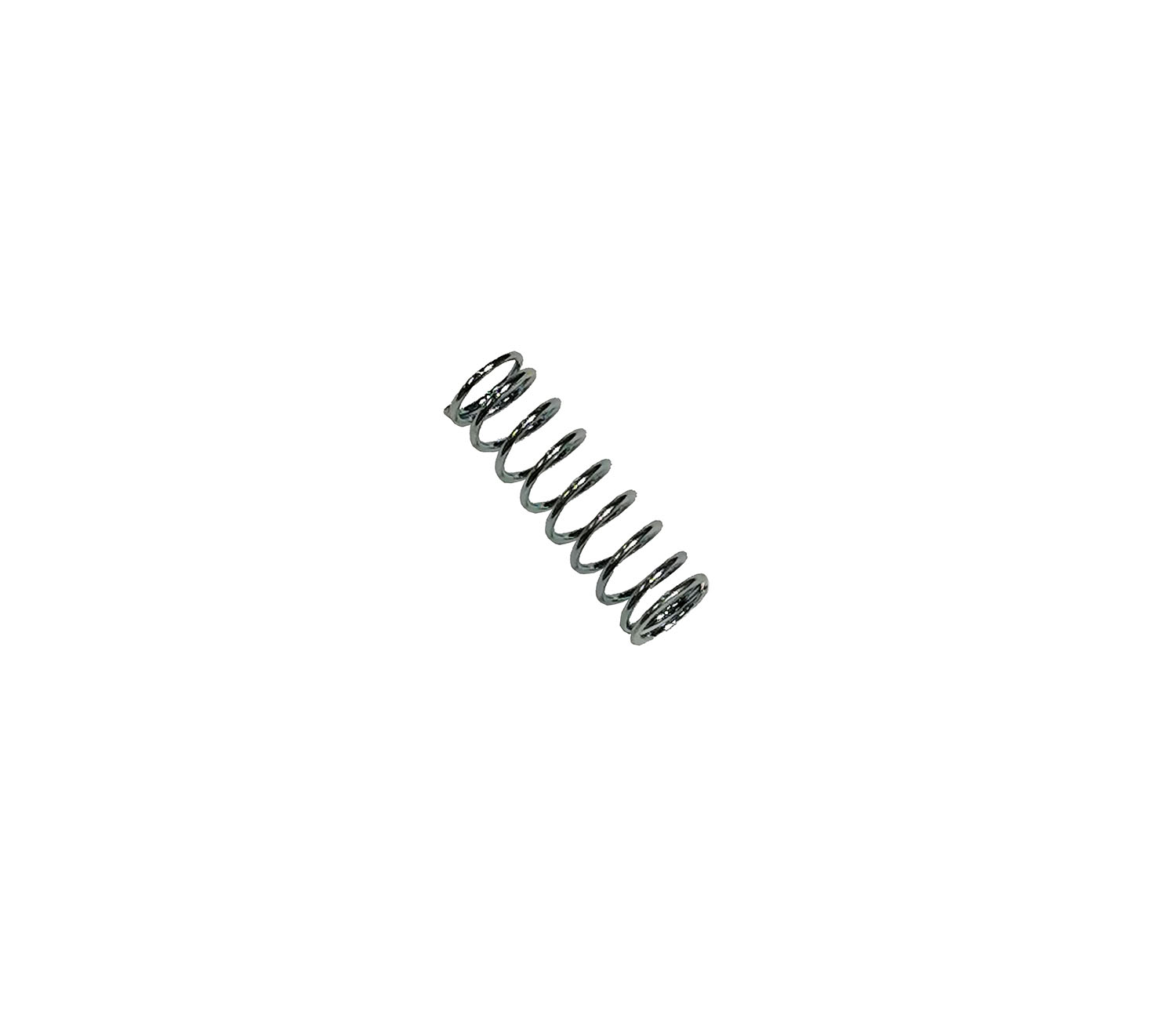

| 2 | 3648210 | SPRING |

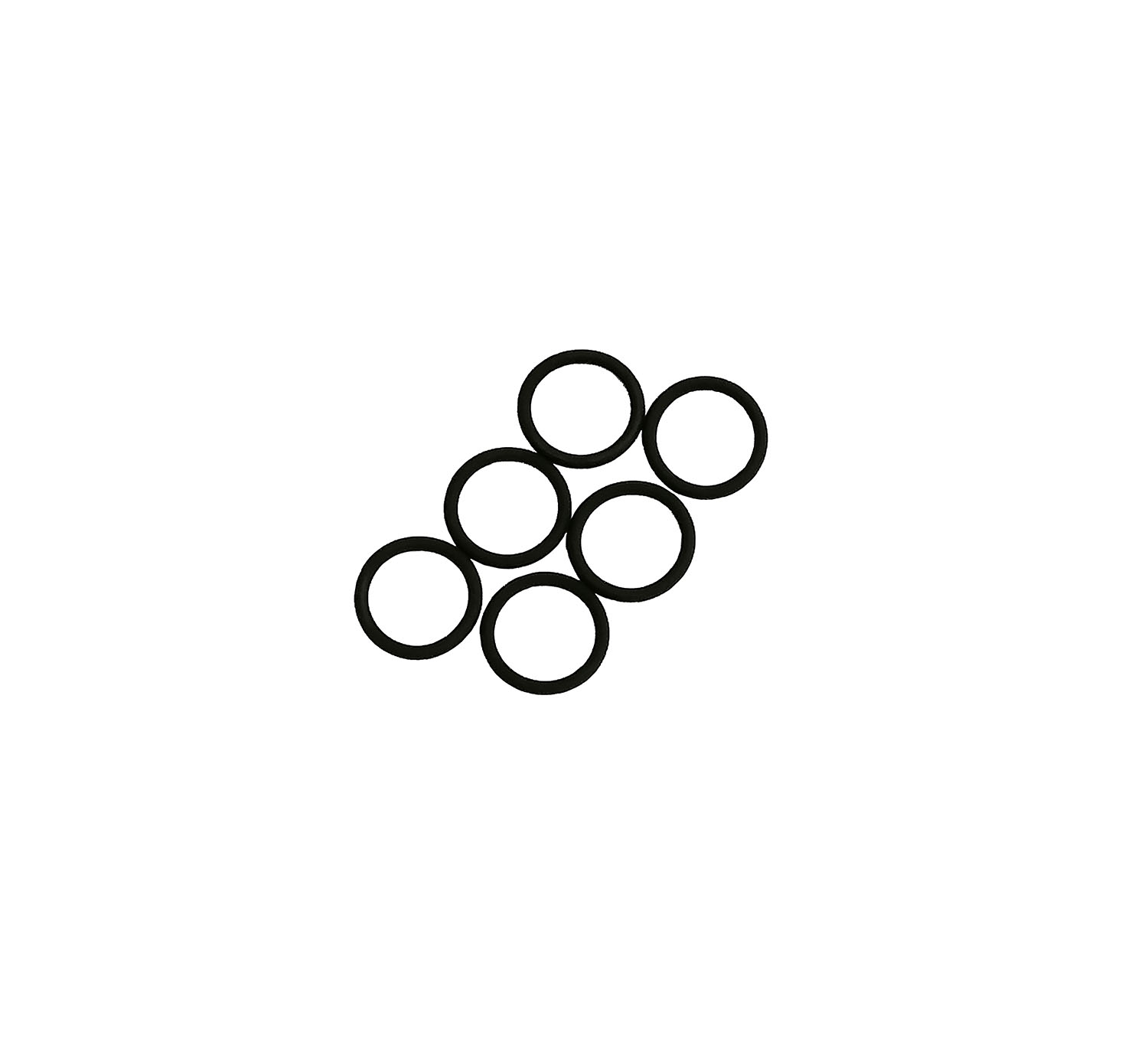

| 2 | 4021180 | O-RING |

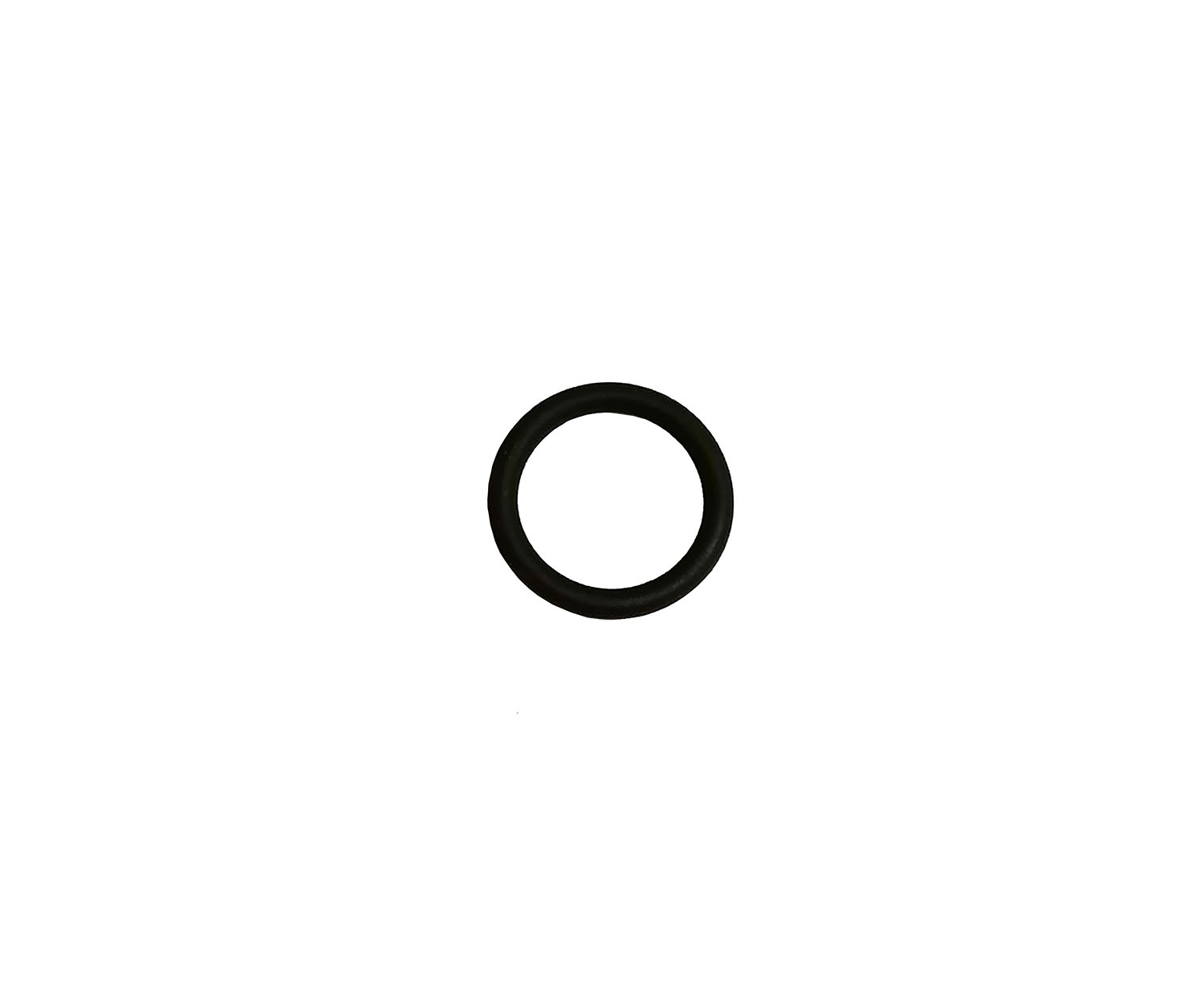

| 2 | 4021120 | O-RING |
| 4 | 4021210 | O-RING |

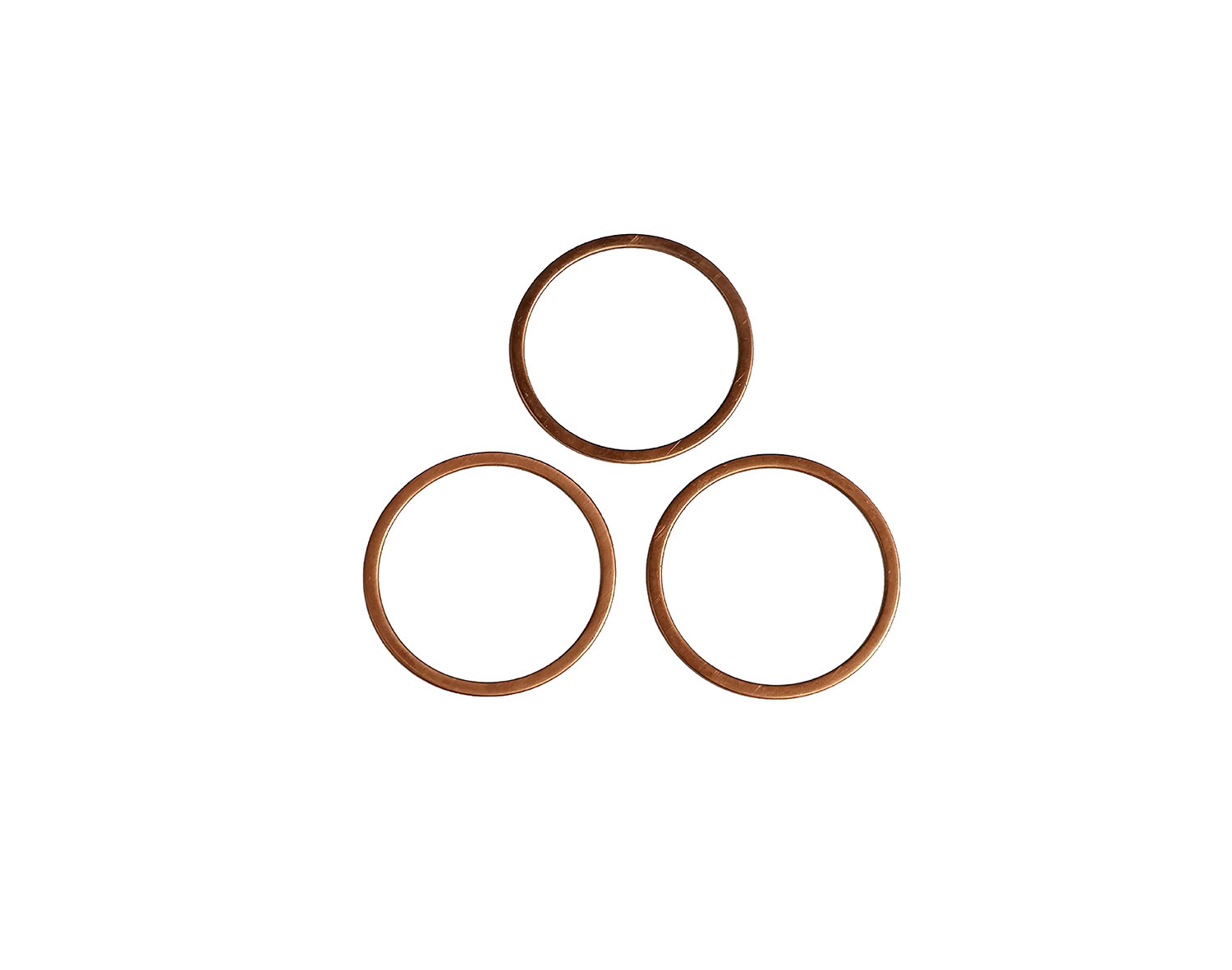

| 4 | 3573660 | RING |

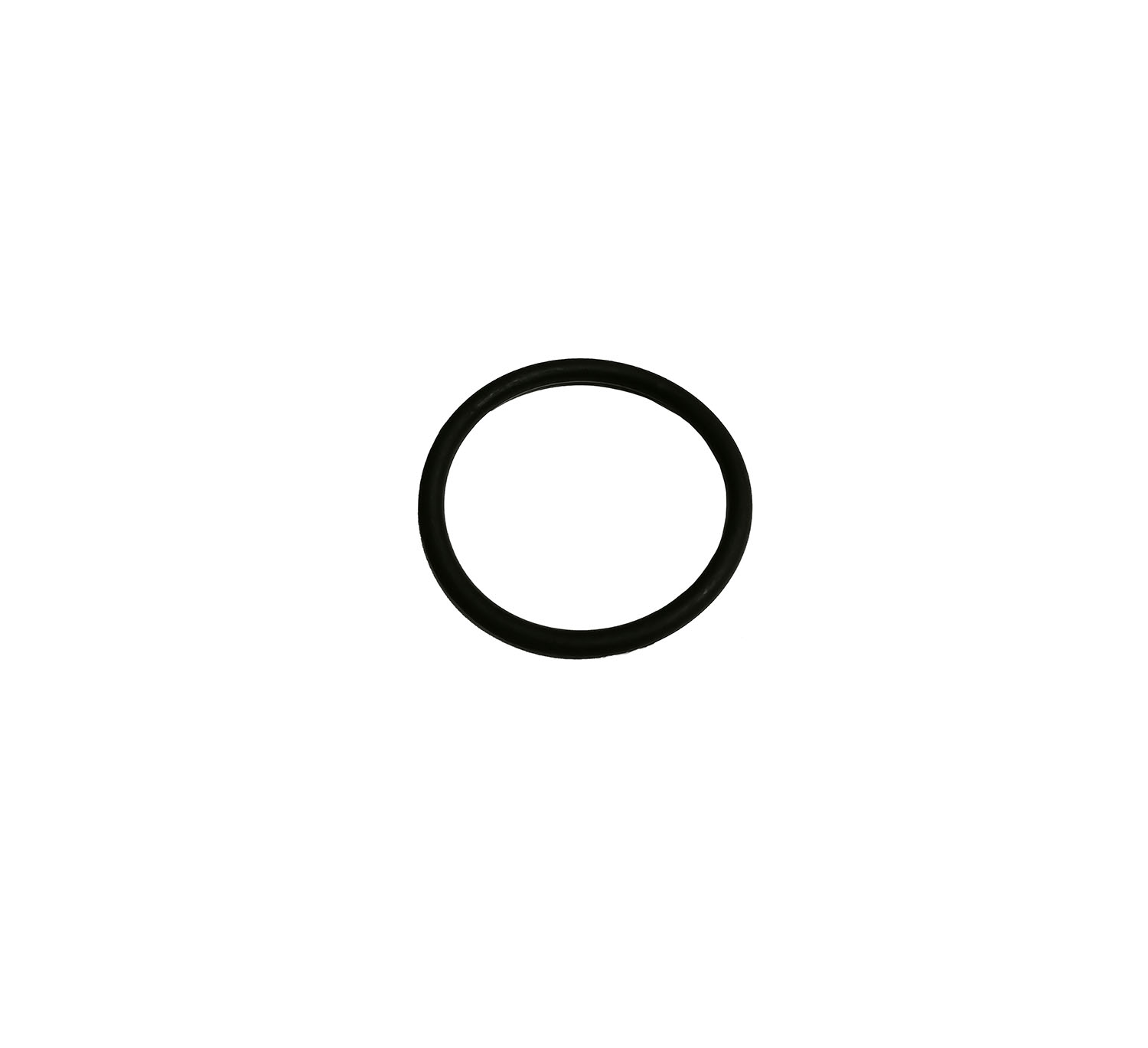

| 4 | 4021340 | O-RING |

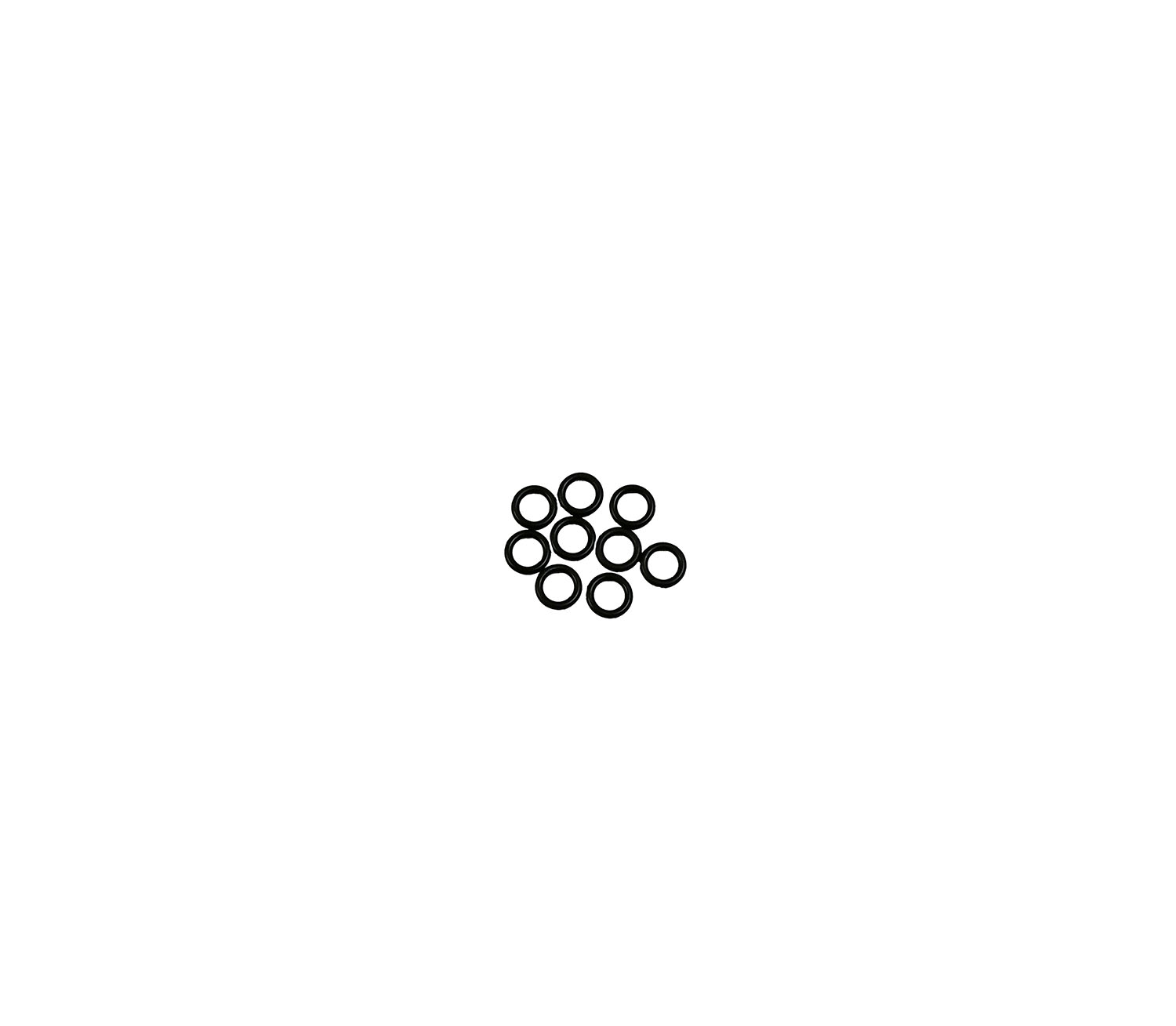

| 4 | 4021080 | O-RING |
